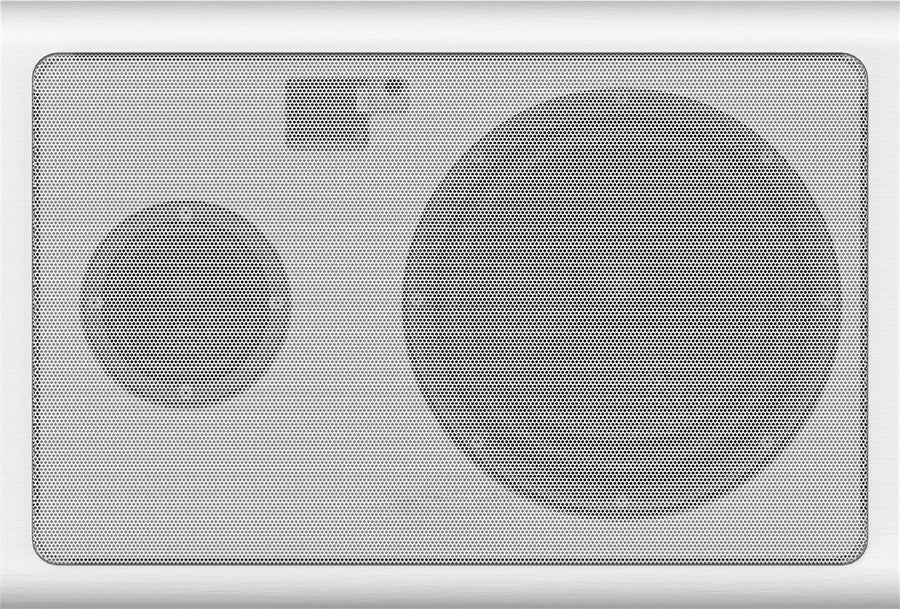

MAXHUB Active Speaker Set – SS30B
The MAXHUB Active Speaker SS30B is a main and sub speaker set rated at 2×40 W into 4 Ω, with a 70 Hz to 18 kHz frequency response and Bluetooth 5.0. It pairs with up to two MAXHUB MC05B lavalier microphones for classroom voice amplification. Procure.ae supplies the SS30B in the UAE.
The MAXHUB SS30B has a rated power of 2×40 W at 4 Ω, a speaker sensitivity of 85 dB (1 W/1 m), a signal-to-noise ratio of at least 83 dB and a frequency response of 70 Hz to 18 kHz. The set consists of a main speaker and a sub speaker joined by a connection cable. The main speaker has a DC power inlet, power switch, 3.5 mm microphone input, 3.5 mm audio input, 3.5 mm audio output and a USB 2.0 port used for firmware upgrades only.
The SS30B is built for teaching spaces. One speaker set can be paired with two MC05B wireless lavalier microphones at once, and Bluetooth speaker mode lets a teacher play audio from a phone, with a password mode that stops unauthorised student connections. It is supplied with an installation accessory kit, and MAXHUB asks for at least 4 inches (about 10 cm) of free space around the speakers for ventilation. It suits classrooms that use a MAXHUB interactive flat panel.
Type
Active Speaker Set (Main and Sub Sp...
Weight
11 kg (net)
- Rated output
- Wide response
- Wireless microphones
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Rated output
2×40 W at 4 Ω across the main and sub speaker, with 85 dB sensitivity at 1 W/1 m.
02
Wide response
70 Hz to 18 kHz frequency response with THD+N of 1% or less at 1 W/1 kHz.
03
Wireless microphones
one speaker set pairs with two MC05B microphones at the same time through two transmitters and one receiver.
04
Bluetooth speaker mode
Bluetooth 5.0 lets mobile devices share audio, with an optional password mode.
05
Wired connections
3.5 mm microphone in, audio in and audio out, plus a USB 2.0 port for firmware upgrades.
06
Mains powered
accepts 100–240 V AC, 50/60 Hz, with a rated power of 80 W.
Specifications
24 specificationsGeneral
Key Features2×40 W rated, Bluetooth speaker mode, password mode, pairs with two wireless microphones, WiFi broadcasting, 3.5 mm mic in
ModelActive Speaker
TypeActive Speaker Set (Main and Sub Speaker)
What's in the BoxMain speaker, sub speaker, power cable, line-in audio cable, main-to-sub connection cable, installation accessory kit
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Audio In3.5 mm × 1
Audio Out3.5 mm × 1
Frequency Response70 Hz to 18 kHz
MicrophoneMic In × 1 (3.5 mm), pairs with 2 wireless microphones
Power Output2×40 W at 4 Ω (rated)
Sensitivity85 dB (1 W/1 m)
Signal-to-Noise Ratio≥ 83 dB (rated power, A-weighted)
THD≤ 1% at 1 W/1 kHz
Connectivity
BluetoothBluetooth 5.0
Frequency Band2.412–2.484 GHz / 5.18–5.815 GHz
Input Voltage100–240 V AC, 50/60 Hz, 1.2 A
USB PortsUSB 2.0 × 1 (firmware upgrade only)
Power
Power Consumption80 W (rated)
Physical
Dimensions340 x 230 x 193 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions530 x 405 x 330 mm
Shipping Weight13 kg
Weight11 kg (net)
Downloads
Manufacturer documents for the MAXHUB Active Speaker Set – SS30B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What power output does the MAXHUB SS30B active speaker have?
The SS30B is rated at 2×40 W into 4 Ω. Its speaker sensitivity is 85 dB at 1 W and 1 m, and its frequency response runs from 70 Hz to 18 kHz. The rated power consumption is 80 W from a 100–240 V AC, 50/60 Hz supply.
Can the SS30B connect to wireless microphones?
Yes. One SS30B set can be paired with two MAXHUB MC05B lavalier microphones at the same time. The microphones transmit on 2.4 GHz and 5 GHz bands, and the speaker has a 3.5 mm microphone input for a wired source as well.
Can I play audio from a phone through the SS30B?
Yes. The SS30B supports Bluetooth 5.0 speaker mode, so audio from mobile devices can be shared through it. A password mode is available to prevent unauthorised student connections. It also has a 3.5 mm audio input for wired sources.
