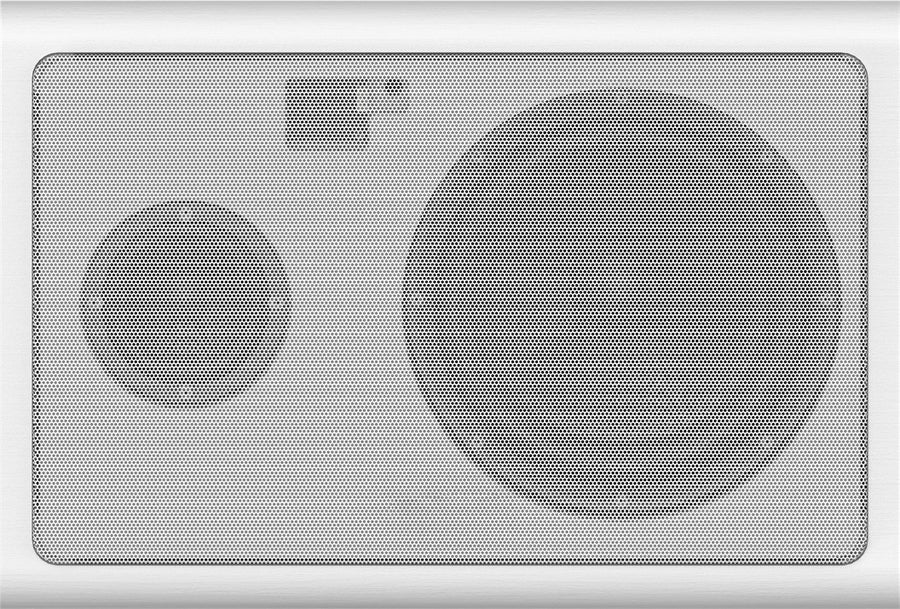

MAXHUB Active Speaker Set – SS30B

The MAXHUB Active Speaker SS30B is a main and sub speaker set rated at 2×40 W into 4 Ω, with a 70 Hz to 18 kHz frequency response and Bluetooth 5.0. It pairs with up to two MAXHUB MC05B lavalier microphones for classroom voice amplification. Procure.ae supplies the SS30B in the UAE.

The MAXHUB SS30B has a rated power of 2×40 W at 4 Ω, a speaker sensitivity of 85 dB (1 W/1 m), a signal-to-noise ratio of at least 83 dB and a frequency response of 70 Hz to 18 kHz. The set consists of a main speaker and a sub speaker joined by a connection cable. The main speaker has a DC power inlet, power switch, 3.5 mm microphone input, 3.5 mm audio input, 3.5 mm audio output and a USB 2.0 port used for firmware upgrades only.

The SS30B is built for teaching spaces. One speaker set can be paired with two MC05B wireless lavalier microphones at once, and Bluetooth speaker mode lets a teacher play audio from a phone, with a password mode that stops unauthorised student connections. It is supplied with an installation accessory kit, and MAXHUB asks for at least 4 inches (about 10 cm) of free space around the speakers for ventilation. It suits classrooms that use a MAXHUB interactive flat panel.

Type

Active Speaker Set (Main and Sub Speaker)

Weight

11 kg (net)

Key features

Rated output

2×40 W at 4 Ω across the main and sub speaker, with 85 dB sensitivity at 1 W/1 m.

Wide response

70 Hz to 18 kHz frequency response with THD+N of 1% or less at 1 W/1 kHz.

Wireless microphones

one speaker set pairs with two MC05B microphones at the same time through two transmitters and one receiver.

Bluetooth speaker mode

Bluetooth 5.0 lets mobile devices share audio, with an optional password mode.

Wired connections

3.5 mm microphone in, audio in and audio out, plus a USB 2.0 port for firmware upgrades.

Mains powered

accepts 100–240 V AC, 50/60 Hz, with a rated power of 80 W.

Specifications

General
Key Features	2×40 W rated, Bluetooth speaker mode, password mode, pairs with two wireless microphones, WiFi broadcasting, 3.5 mm mic in
Model	Active Speaker
Type	Active Speaker Set (Main and Sub Speaker)
What's in the Box	Main speaker, sub speaker, power cable, line-in audio cable, main-to-sub connection cable, installation accessory kit

Performance
Storage Conditions	-20 to 60 °C, 10% to 90% RH

Audio
Audio In	3.5 mm × 1
Audio Out	3.5 mm × 1
Frequency Response	70 Hz to 18 kHz
Microphone	Mic In × 1 (3.5 mm), pairs with 2 wireless microphones
Power Output	2×40 W at 4 Ω (rated)
Sensitivity	85 dB (1 W/1 m)
Signal-to-Noise Ratio	≥ 83 dB (rated power, A-weighted)
THD	≤ 1% at 1 W/1 kHz

Connectivity
Bluetooth	Bluetooth 5.0
Frequency Band	2.412–2.484 GHz / 5.18–5.815 GHz
Input Voltage	100–240 V AC, 50/60 Hz, 1.2 A
USB Ports	USB 2.0 × 1 (firmware upgrade only)

Power
Power Consumption	80 W (rated)

Physical
Dimensions	340 x 230 x 193 mm
Operating Humidity	10% to 90% RH
Operating Temperature	0 to 40 °C
Shipping Dimensions	530 x 405 x 330 mm
Shipping Weight	13 kg
Weight	11 kg (net)
