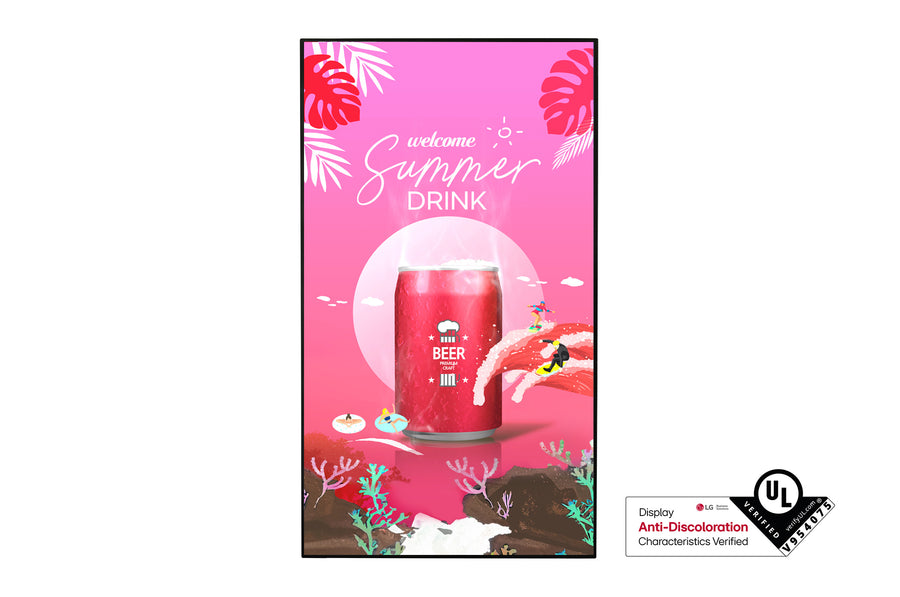

LG 75XS4P-M 75-inch window-facing digital signage display

LG XS4P Window-Facing 75-inch Digital Signage Display – 75XS4P-M

Name: LG XS4P Window-Facing 75-inch Digital Signage Display – 75XS4P-M
Brand: LG
SKU: 75XS4P-M
Availability: InStock

The LG 75XS4P-M is a 75-inch 4K UHD window-facing digital signage display for storefront glass and bright lobbies. It is rated at 4,000 nits typical brightness, uses an IPS / M+ panel, and is specified for 24/7 operation with webOS 6.1. Procure.ae supplies the LG 75XS4P-M in the UAE.

The 75XS4P-M has a 3840 x 2160 (UHD) native resolution and typical brightness of 4,000 nits, with 3,200 nits minimum, so content stays readable behind glass in daylight. Its IPS / M+ panel uses direct backlighting with 178º x 178º viewing angles, 1.07 billion colours and an 8 ms (G to G) response time. Contrast is rated at 1,200:1, with dynamic contrast at 500,000:1 and NTSC 68% colour gamut. The display works in portrait or landscape, carries 16 GB of internal memory and includes built-in Wi-Fi, Bluetooth, an auto brightness sensor and a built-in fan.

The model is built for window-facing installations and works with SuperSign CMS, SuperSign Control+ and SuperSign Cloud for scheduled content. Control runs over RS232C, RJ45 (LAN), IR and HDMI-CEC, and Group Manager, Fail over and Local Network Sync support networked multi-screen setups. Local contents scheduling, video tags, Play via URL, PIP and PBP (2PBP) modes are listed. Mounting uses a 600 x 400 mm VESA interface, and the head weighs 39.6 kg. Procure.ae provides free training and support for installation teams across the UAE.

Screen Size

75 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

4,000 nits (typical), 3,200 nits (m...

Type

Window-Facing Digital Signage Display

Window-facing brightness
4K UHD resolution
Wide viewing angle

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

Window-facing brightness

4,000 nits typical brightness (3,200 nits minimum) for daylight viewing behind glass.

4K UHD resolution

3840 x 2160 native resolution on a 75-inch 16:9 panel.

Wide viewing angle

178º x 178º viewing angles on an IPS / M+ panel with direct backlight.

Continuous operation

Specified for 24/7 operation, with a built-in fan and Smart Energy Saving.

webOS 6.1 playback

Local contents scheduling, video tags, Play via URL and gapless playback are included.

Multi-screen control

Group Manager, Fail over and Local Network Sync support networked displays.

Wired and IR connectivity

HDMI In, DP In, RJ45 (LAN) In and Out, RS232C In and Out, and IR In and Out.

Built-in wireless

Wi-Fi and Bluetooth are built in, with 16 GB eMMC memory and an auto brightness sensor.

Specifications

32 specifications

General

Key Features4,000-nit brightness, 4K UHD, 24/7 operation, webOS 6.1, PIP and PBP, Wi-Fi and Bluetooth, SuperSign CMS, auto brightness sensor

Model75XS4P-M

TypeWindow-Facing Digital Signage Display

What's in the BoxRemote controller (2 batteries), power cord, HDMI cable, manual, IR receiver with ambient light sensor, RS-232C gender adapter

Display

Aspect Ratio16:9

Bezel Size13.8 mm (even bezel)

Brightness4,000 nits (typical), 3,200 nits (minimum)

Color Depth1.07 billion colours

Color GamutNTSC 68%

Contrast Ratio1,200:1

OrientationPortrait and landscape

Panel TechnologyIPS

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Response Time8 ms

Screen Size75 inch

Viewing Angle178º x 178º

Performance

Duty Cycle24/7

Operating SystemwebOS 6.1

Storage16 GB (eMMC)

Connectivity

BluetoothBuilt-in

Input Voltage100–240 V AC, 50/60 Hz

PortsHDMI In × 1, DP In × 1, DP Out × 1, RJ45 (LAN) In/Out, RS232C In/Out, IR In/Out, USB 2.0 × 1, External Speaker Out

Wi-FiBuilt-in

Power

Standby Power0.5 W (power off)

Physical

ColorBlack

Dimensions1679.2 x 957.6 x 104 mm (W x H x D)

Operating Humidity10% to 80% RH

Operating Temperature0 to 40 °C (no direct sunlight), 0 to 30 °C (direct sunlight)

VESA Mount600 x 400 mm

Weight39.6 kg

Compliance

CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI

Downloads

Manufacturer documents for the LG XS4P Window-Facing 75-inch Digital Signage Display – 75XS4P-M — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the LG 75XS4P-M suitable for display behind a window?

Yes. It is specified at 4,000 nits typical brightness with 3,200 nits minimum, and the 75-inch IPS / M+ panel is designed for window-facing installations. The manufacturer lists an operating range of 0 to 40 °C without direct sunlight and 0 to 30 °C with direct sunlight, so check the site conditions before fitting.

What mounting does the 75XS4P-M use?

It uses a VESA standard mount interface of 600 x 400 mm. The monitor measures 1679.2 x 957.6 x 104 mm (W x H x D) with a 13.8 mm even bezel, and the head weighs 39.6 kg, so the mounting frame should be rated for that load before installation.

Can the 75XS4P-M run in portrait orientation?

Yes. The manufacturer lists both portrait and landscape orientation, with screen rotation and external input rotation also supported. This lets the same panel be installed upright for vertical menus or banners, with content set to match the orientation.

Can it be managed remotely and integrated with a content system?

Yes. The display supports SuperSign CMS, SuperSign Control+ and SuperSign Cloud, and includes SNMP, Wake on LAN, Control Manager and Status Mailing for remote monitoring. RS232C and RJ45 (LAN) control also allow integration with room or building systems.

Does it support split-screen or multi-panel layouts?

Yes. It supports PIP and PBP (2PBP) modes, four video tags, and Tile Mode Setting, which the manufacturer lists for multi-panel layouts. Setting Data Cloning is also included, so settings can be copied across units in a deployment.
