LGDigital SignageSKU 86XF3SK

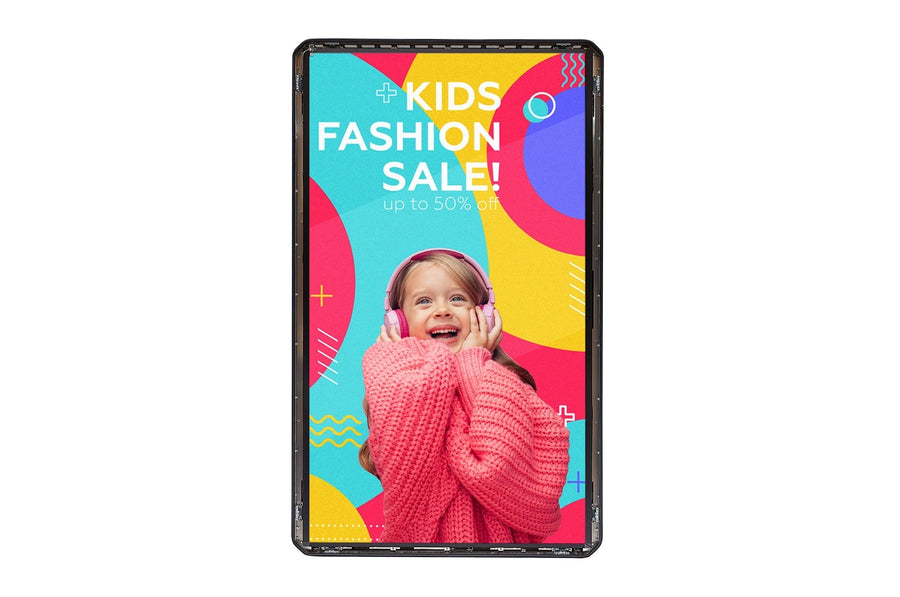

LG XF3S High-Brightness 86-inch Open-Frame Digital Signage Display – 86XF3SK
The LG 86XF3SK is an 86-inch 4K UHD open-frame digital signage display with 3,300 nits typical brightness and a 120 Hz refresh rate. It suits bright signage placements and runs webOS 6.0 with SuperSign management software. Procure.ae supplies the LG 86XF3SK in the UAE.
The 86XF3SK uses a 3,840 x 2,160 (4K UHD) IPS RGB panel with direct backlight, 178º x 178º viewing angles and 1.07 billion colours. Typical brightness is 3,300 nits and typical contrast is 1,100:1, with dynamic contrast at 500,000:1 and an NTSC 68% colour gamut. The panel refreshes at 120 Hz with an 8 ms (G to G) response time. Brightness compensation is included, and temperature, current, backlight and humidity sensors plus a built-in fan are listed.
It is a portrait-oriented open-frame display: portrait is listed as supported and landscape as not supported. Management runs through SuperSign CMS and SuperSign Control+, with local contents scheduling, Group Manager, Fail over, Play via URL and screen rotation. Connectivity covers HDMI and DisplayPort inputs, audio in, RS232C, RJ45 (LAN) and IR inputs, plus external speaker out and RS232C, RJ45 and IR outputs. The operating range is 0 to 50 °C without direct sunlight and 0 to 40 °C with it. Procure.ae provides free training and support.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3,300 nits (typical)
Type
Open-Frame Digital Signage Display
- Direct sunlight operation
- 4K UHD at 120 Hz
- Wide viewing angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Direct sunlight operation
Direct sunlight operation is listed as supported, with 3,300 nits typical brightness.
02
4K UHD at 120 Hz
3840 x 2160 native resolution with a 120 Hz refresh rate.
03
Wide viewing angle
178º x 178º viewing angles on an IPS RGB panel.
04
Sensor set
Temperature, current, backlight (BLU), humidity and gyro sensors are listed.
05
Portrait orientation
Portrait is supported; landscape is listed as not supported.
06
Remote management
SuperSign CMS, SuperSign Control+, SNMP, Wake on LAN and Connected Care.
07
Content playback
Local contents scheduling, Play via URL, screen and input rotation, and four video tags.
08
Energy and cooling
Smart Energy Saving, PM mode, a built-in fan and ErP are listed.
Specifications
29 specificationsGeneral
Key FeaturesDirect sunlight operation, 4K UHD at 120 Hz, 3,300-nit brightness, portrait orientation, webOS 6.0, SuperSign CMS, 24/7 operation, Smart Energy Saving
Model86XF3SK
TypeOpen-Frame Digital Signage Display
What's in the BoxRemote controller (2 batteries), HDMI cable, USB cables (2), LAN extension cables (2), SMA cables (2), IR cable, power cables, cord grips, screws, corner brackets, manual
Display
Aspect Ratio16:9
Bezel Size52 mm (top/bottom), 66.4 mm (left/right)
Brightness3,300 nits (typical)
Color Depth1.07 billion colours
Color GamutNTSC 68%
Contrast Ratio1,100:1 (typical)
OrientationPortrait (landscape not supported)
Panel TechnologyIPS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178º x 178º
Performance
Duty Cycle24/7
Operating SystemwebOS 6.0
Storage8 GB (eMMC)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DP In × 1, Audio In, RS232C In, RJ45 (LAN) In, IR In, USB 2.0 × 1, External Speaker Out, RS232C Out, RJ45 (LAN) Out, IR Out (shared with RS232C)
Power
Standby Power0.5 W (power off)
Physical
ColorBlack
Dimensions1202.8 x 2003 x 163.88 mm (W x H x D)
Operating Humidity10% to 80% RH
Operating Temperature0 to 50 °C (without direct sunlight), 0 to 40 °C (direct sunlight)
Weight140 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI, ErP
Downloads
Manufacturer documents for the LG XF3S High-Brightness 86-inch Open-Frame Digital Signage Display – 86XF3SK — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86XF3SK suitable for direct sunlight?
Yes. Direct sunlight operation is listed as supported. The manufacturer gives an operating range of 0 to 50 °C without direct sunlight and 0 to 40 °C with direct sunlight, and the panel has 3,300 nits typical brightness for bright sites.
Does the 86XF3SK support portrait mounting?
Yes. Portrait orientation is listed as supported and landscape as not supported. Screen rotation and external input rotation are included, so content can be arranged for an upright display without changing the panel.
What mounting details apply to the 86XF3SK?
The head measures 1202.8 x 2003 x 163.88 mm (W x H x D) and weighs 140 kg, so the frame must be rated for that load. The manufacturer’s specifications do not state a VESA pattern for this model, so confirm the mounting details with Procure.ae before installation.
Which inputs and control ports does it have?
It has HDMI and DisplayPort inputs, audio in, RS232C in, RJ45 (LAN) in, IR in and one USB 2.0 Type A port. Outputs include RS232C, RJ45 (LAN), IR and an external speaker output, with the IR output sharing the RS232C output.
Can it be managed remotely?
Yes. SuperSign CMS and SuperSign Control+ are listed, along with SNMP, Status Mailing, Control Manager, Wake on LAN and Connected Care. Smart Energy Saving and PM mode are also included for power control when the display is idle.
Can I buy the 86XF3SK in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
