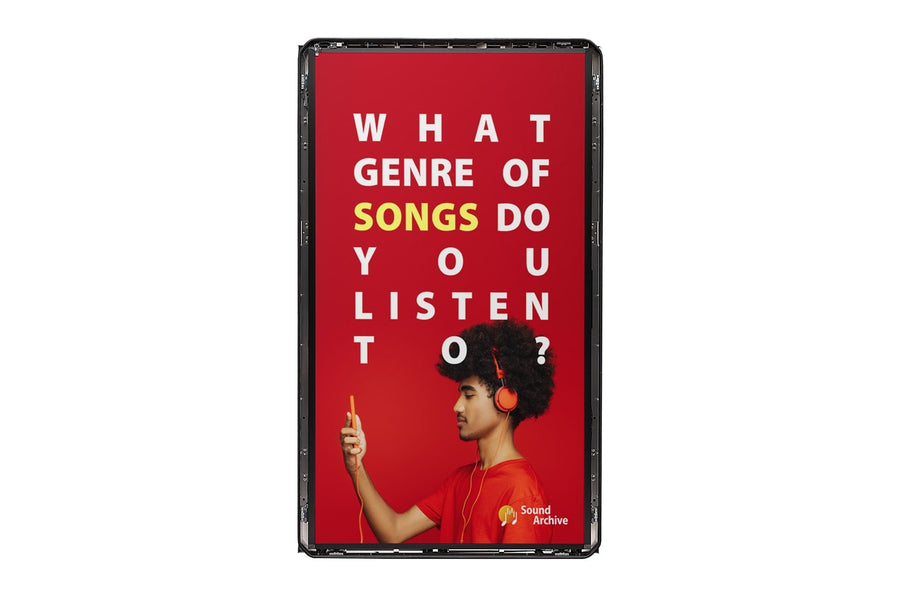

LG XF3C High-Brightness 86-inch Open-Frame Digital Signage Display – 86XF3CK
The LG 86XF3CK is an 86-inch 4K UHD open-frame digital signage display for bright, window-facing signage. It is rated at 3,300 nits typical brightness, with a 120 Hz refresh rate and 1,100:1 typical contrast. Procure.ae supplies the LG 86XF3CK in the UAE.
The 86XF3CK combines a 3,840 x 2,160 (4K UHD) IPS RGB panel with 10-bit colour and 1.07 billion colours across 178º x 178º viewing angles. Typical brightness is 3,300 nits and typical contrast is 1,100:1, with dynamic contrast at 500,000:1 and an NTSC 68% colour gamut. The panel runs at 120 Hz with an 8 ms (G to G) response time and carries a 3% haze surface treatment. Brightness compensation and a quarter wave plate are included, along with sensors for temperature, auto brightness, pixel, current, backlight and humidity.
The display is an open-frame panel for signage networks. It runs webOS 6.0 with SuperSign CMS and SuperSign Control+, and supports local contents scheduling, Group Manager, Fail over, Play via URL and four video tags. Connectivity includes HDMI and DisplayPort inputs, RS232C, RJ45 (LAN) and IR inputs, with RS232C, RJ45 and IR outputs. Power is 100–240 V AC with a built-in circuit breaker, and typical draw is 1,450 W at full white. The operating range is 0 to 40 °C with direct sunlight and 0 to 50 °C without it.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3,300 nits (typical)
Type
Open-Frame Digital Signage Display
- Direct sunlight operation
- 4K UHD at 120 Hz
- Wide viewing angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Direct sunlight operation
Direct Sunlight is listed as supported, with 3,300 nits typical brightness.
02
4K UHD at 120 Hz
3840 x 2160 native resolution with a 120 Hz refresh rate.
03
Wide viewing angle
178º x 178º viewing angles on an IPS RGB panel with direct backlight.
04
Environmental sensors
Temperature, auto brightness, pixel, current, BLU and humidity sensors are listed.
05
Portrait orientation
Portrait is supported, and landscape is listed as not supported.
06
Remote management
SuperSign CMS, SuperSign Control+ and Connected Care, with SNMP and Wake on LAN.
07
Power protection
A built-in circuit breaker and a conformal-coated power board are included.
08
Content playback
Local contents scheduling, Play via URL, screen rotation and four video tags.
Specifications
31 specificationsGeneral
Key Features4K UHD, 3,300-nit brightness, 120 Hz refresh, direct sunlight operation, portrait orientation, 24/7 operation, webOS 6.0, SuperSign CMS
Model86XF3CK
TypeOpen-Frame Digital Signage Display
What's in the BoxRemote controller (2 batteries), HDMI cable, USB cables (2), LAN extension cables (2), SMA cables (2), IR cable, power cables, cord grips, screws, corner brackets, manual
Display
Aspect Ratio16:9
Bezel Size66.4 mm (left/right), 52 mm (top/bottom)
Brightness3,300 nits (typical)
Color Depth10-bit, 1.07 billion colours
Color GamutNTSC 68%
Contrast Ratio1,100:1 (typical)
OrientationPortrait (landscape not supported)
Panel TechnologyIPS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178º x 178º
Performance
Duty Cycle24/7
Operating SystemwebOS 6.0
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DP In × 1, RS232C In × 2, RJ45 (LAN) In × 1, IR In × 1, USB 2.0 × 2, RS232C Out, RJ45 (LAN) Out, IR Out (shared with RS232C)
Power
Power Consumption1,450 W typical (full white, front), 1,950 W maximum
Standby Power0.5 W (power off)
Physical
ColorBlack
Dimensions1202.8 x 2003 x 229.18 mm (W x H x D)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (with solar), 0 to 50 °C (without solar)
Surface Protection3% haze surface treatment
Weight201.8 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
Downloads
Manufacturer documents for the LG XF3C High-Brightness 86-inch Open-Frame Digital Signage Display – 86XF3CK — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86XF3CK suitable for direct sunlight?
Yes. Direct sunlight operation is listed as supported, and the panel has 3,300 nits typical brightness. The manufacturer gives an operating range of 0 to 40 °C with solar exposure and 0 to 50 °C without it, so check the site temperature before installation.
Does the 86XF3CK support portrait orientation?
Yes. The manufacturer lists portrait as supported and landscape as not supported. Screen rotation and external input rotation are also included, so content can be arranged for an upright installation without changing the panel.
What mounting details should I plan for?
The head measures 1,202.8 x 2,003 x 229.18 mm (W x H x D) and weighs 201.8 kg, so the frame must be rated for that load. The manufacturer’s specifications do not state a VESA pattern for this model, and the carton includes corner brackets, screws and cord grips.
Which inputs and control ports does it have?
It has HDMI and DisplayPort inputs, two RS232C inputs, one RJ45 (LAN) input, one IR input and two USB 2.0 Type A ports. Outputs include RS232C, RJ45 (LAN) and IR, and the IR output shares the RS232C output, which is useful for control chains.
Can it be managed remotely?
Yes. SuperSign CMS and SuperSign Control+ are listed, along with Connected Care, SNMP, Status Mailing, Control Manager and Wake on LAN. Smart Energy Saving and PM mode are also included to manage power when the display is idle.
