LGDigital SignageSKU 49XEB3E

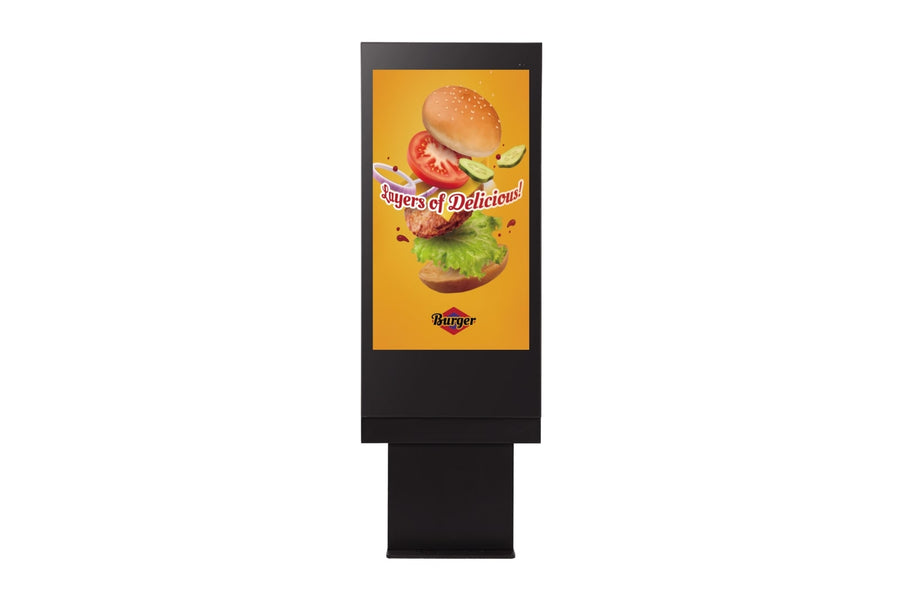

LG XEB3 Outdoor 49-inch Digital Signage Display – 49XEB3E
The LG 49XEB3E is a 49-inch outdoor digital signage display rated IP56, with a Full HD panel at 3,000 nits typical brightness and tempered, laminated front glass. It is managed with SuperSign CMS and SuperSign Link software. Procure.ae can confirm current availability of this LG model in the UAE.
The 49XEB3E is a 49-inch outdoor display at 1920 x 1080 Full HD resolution with M+ (WRGB) technology. Its typical brightness is 3,000 nits, and the front glass is 6.8 mm of anti-reflective, tempered and laminated glass. The unit operates from -30 to 50 °C and is rated IP56 for dust and water. Typical power draw is 270 W, rising to 400 W at maximum, and smart energy saving mode reduces the draw to 145 W.
The 49XEB3E suits outdoor signage that needs laminated front glass and IP56 protection, managed with SuperSign CMS and SuperSign Link software. Control is over RS232C in and out and RJ45 LAN in, and the display ships with a remote controller and regulation book. Its monitor measures 701 x 1,445 x 180.9 mm and weighs 58.6 kg, so plan the mounting and handling before installation. Procure.ae can advise on the current successor model for your project.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
3,000 nits (typical)
Type
Outdoor Digital Signage Display
- Outdoor rating
- Laminated front glass
- High brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Outdoor rating
IP56 dust and water protection.
02
Laminated front glass
6.8 mm tempered and laminated front glass with an anti-reflective coating.
03
High brightness
3,000 nits typical brightness.
04
Energy profile
270 W typical, 400 W maximum and 145 W in smart energy saving mode.
05
Control interfaces
RS232C in and out, and RJ45 LAN in.
06
Temperature range
operates from -30 to 50 °C.
07
Management software
SuperSign CMS and SuperSign Link for content and monitoring.
08
Built-in power
100–240 V AC, 50/60 Hz built-in power supply.
Specifications
18 specificationsGeneral
Key Features3,000-nit brightness, IP56 dust and water protection, Tempered laminated glass, M+ WRGB panel, SuperSign CMS, SuperSign Link, Anti-reflective front glass, Smart energy saving
Model49XEB3E
TypeOutdoor Digital Signage Display
What's in the BoxRemote controller, manual (EIG, ESG), regulation book, phone to RS232C gender adapter, USB cable, HDMI cable
Display
Brightness3,000 nits (typical)
Panel TechnologyM+ (WRGB)
Resolution1920 x 1080 (Full HD)
Screen Size49 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsRS232C In/Out, RJ45 LAN In
Power
Power Consumption270 W (typical), 400 W (maximum), 145 W (smart energy saving)
Physical
Dimensions701 x 1445 x 180.9 mm (monitor, W x H x D)
Operating Humidity5% to 100% RH
Operating Temperature-30 to 50 °C
Surface Protection6.8 mm anti-reflective, tempered and laminated front glass
Weight58.6 kg (head)
Compliance
CertificationsUL, cUL, CB, FCC Class A, CE, KCC
IP RatingIP56 (dust and water)
Downloads
Manufacturer documents for the LG XEB3 Outdoor 49-inch Digital Signage Display – 49XEB3E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 49XEB3E?
The LG 49XEB3E is a 49-inch outdoor display with 1920 x 1080 Full HD resolution and M+ (WRGB) technology. Typical brightness is 3,000 nits. Its front glass is 6.8 mm of anti-reflective, tempered and laminated glass.
Is the 49XEB3E rated for outdoor installation?
Yes. The manufacturer rates it IP56 for dust and water, with a -30 to 50 °C operating range and 5% to 100% humidity. The front glass is 6.8 mm of tempered, laminated and anti-reflective glass.
What is the power draw of the 49XEB3E?
It draws 270 W typical and 400 W maximum, and 145 W in smart energy saving mode. It runs on 100–240 V AC, 50/60 Hz, with a built-in power supply.
How heavy is the 49XEB3E and what does it need for mounting?
The head weighs 58.6 kg and the monitor measures 701 x 1,445 x 180.9 mm. The manufacturer lists an optional stand, but its dimensions and weight are marked as to be confirmed. Plan the mounting and handling before installation.
How is the 49XEB3E controlled and managed?
It is controlled over RS232C in and out and RJ45 LAN in. Content is managed with SuperSign CMS, and monitoring uses SuperSign Link software, both listed by the manufacturer. Its operating range is -30 to 50 °C.
