LGDigital SignageSKU 49XE4P-M

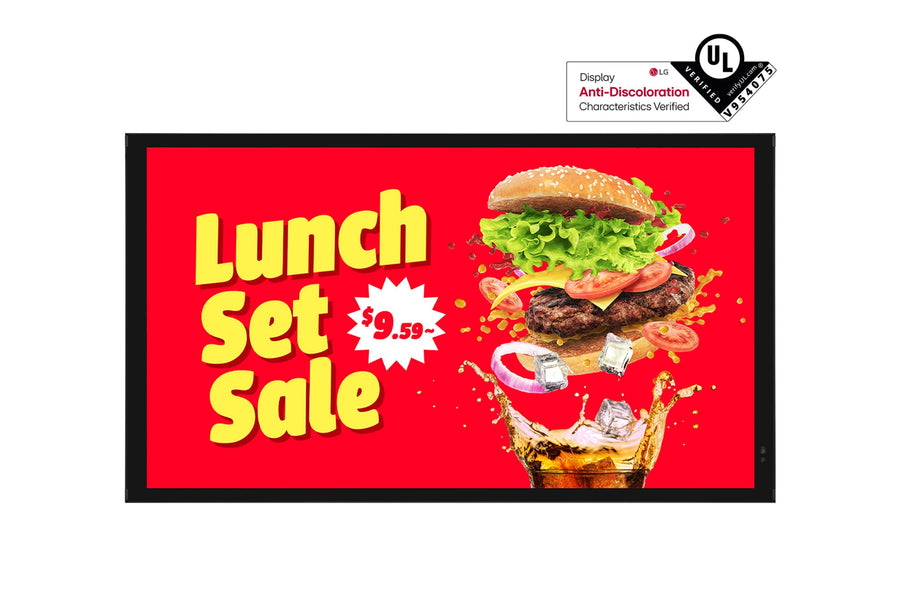

LG XE4P High-Brightness Outdoor 49-inch Digital Signage Display – 49XE4P-M
The LG 49XE4P-M is a 49-inch high-brightness outdoor digital signage display rated IP56, with a Full HD panel at 4,000 nits typical brightness. It adds an HDBaseT RJ45 input alongside LAN, with built-in Wi-Fi, Bluetooth and webOS 6.0. Procure.ae supplies this LG outdoor model across the UAE.
The 49XE4P-M is a 49-inch IPS display with M+ technology at 1920 x 1080 Full HD resolution. Its typical brightness is 4,000 nits and its minimum is 3,200 nits, with 1,300:1 contrast and 500,000:1 dynamic contrast. The panel has a 67% colour gamut, an 8 ms (G to G) response time and a 178-degree viewing angle. The unit is rated for 24-hour, 7-day operation.
The 49XE4P-M suits outdoor signage that needs IP56 protection and a second network-side input for HDBaseT. Built-in Wi-Fi and Bluetooth, SuperSign CMS, SuperSign Control+ and SuperSign Cloud support remote content management. Compared with the 49XE4P, this model adds a second RJ45 input for HDBaseT, and the other listed specifications match the 49XE4P.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
4,000 nits (typical), 3,200 nits (m...
Type
Outdoor Digital Signage Display
- Bright IPS panel
- IP56 rating
- Impact-rated glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Bright IPS panel
4,000 nits typical and 3,200 nits minimum on a 49-inch Full HD panel.
02
IP56 rating
dust and water protection rated IP56.
03
Impact-rated glass
tempered, anti-reflective front glass with IK10 protection.
04
HDBaseT input
a second RJ45 input for HDBaseT, alongside the LAN input.
05
Wireless
built-in Wi-Fi and Bluetooth with webOS 6.0.
06
Multi-window modes
PIP and 2PBP picture-by-picture modes.
07
Content management
SuperSign CMS, Control+ and Cloud support, with Connected Care.
08
Multi-screen setup
Beacon and backlight sync for coordinated screens.
Specifications
31 specificationsGeneral
Key Features4,000-nit brightness, IP56 rating, IK10 protection glass, Built-in Wi-Fi and Bluetooth, HDBaseT input, PIP and PBP modes, Beacon, Backlight sync
Model49XE4P-M
TypeOutdoor Digital Signage Display
What's in the BoxRemote controller, manual (EIG, IG), regulation book, phone to RS232C gender adapter, HDMI cable, power cable, battery, screws
Display
Aspect Ratio16:9
BacklightDirect
Brightness4,000 nits (typical), 3,200 nits (minimum)
Color Depth1.07 billion colors
Color Gamut67%
Contrast Ratio1,300:1
OrientationPortrait and landscape
Panel TechnologyIPS / M+
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms (G to G)
Screen Size49 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.0
Storage16 GB
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1 (HDCP 2.2), RS232C In/Out, RJ45 In × 2 (1 LAN, 1 HDBaseT), RJ45 LAN Out, USB 2.0 × 2, External speaker out × 1
Wi-FiBuilt-in
Power
Power Consumption0.5 W (power off)
Physical
Dimensions1153.0 x 656.2 x 88.0 mm
Operating Humidity5% to 100% RH
Operating Temperature-30 to 50 °C
Surface ProtectionTempered, anti-reflective glass, IK10 impact rating
Weight31.2 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
IP RatingIP56
Downloads
Manufacturer documents for the LG XE4P High-Brightness Outdoor 49-inch Digital Signage Display – 49XE4P-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the brightness of the LG 49XE4P-M?
The LG 49XE4P-M is rated at 4,000 nits typical and 3,200 nits minimum, with 1,300:1 contrast and 500,000:1 dynamic contrast. It runs on a 49-inch 1920 x 1080 Full HD IPS panel.
Is the 49XE4P-M rated for outdoor use?
Yes. The manufacturer rates it IP56 for dust and water protection, with IK10 impact protection on the glass and an operating range of -30 to 50 °C. It is listed for direct sunlight use.
What is the HDBaseT input on the 49XE4P-M?
The 49XE4P-M has two RJ45 inputs: one LAN and one HDBaseT. The HDBaseT port is listed alongside the LAN input in the manufacturer's data. Procure.ae can confirm the cabling and transmitter requirements for your install.
What mounting and orientation does the 49XE4P-M support?
It supports portrait and landscape orientation. The monitor measures 1153.0 x 656.2 x 88.0 mm and weighs 31.2 kg. The manufacturer's specifications do not state a VESA mount for this model, so confirm the mounting method with Procure.ae before installation.
Which connections does the 49XE4P-M have for control and networking?
It has HDMI In × 2, DisplayPort In × 1 with HDCP 2.2, RS232C In and Out, two RJ45 inputs (LAN and HDBaseT), RJ45 LAN Out, and two USB 2.0 ports. It also supports Wake on LAN, HDMI-CEC and SNMP.
