LGDigital SignageSKU 75UP5R-E

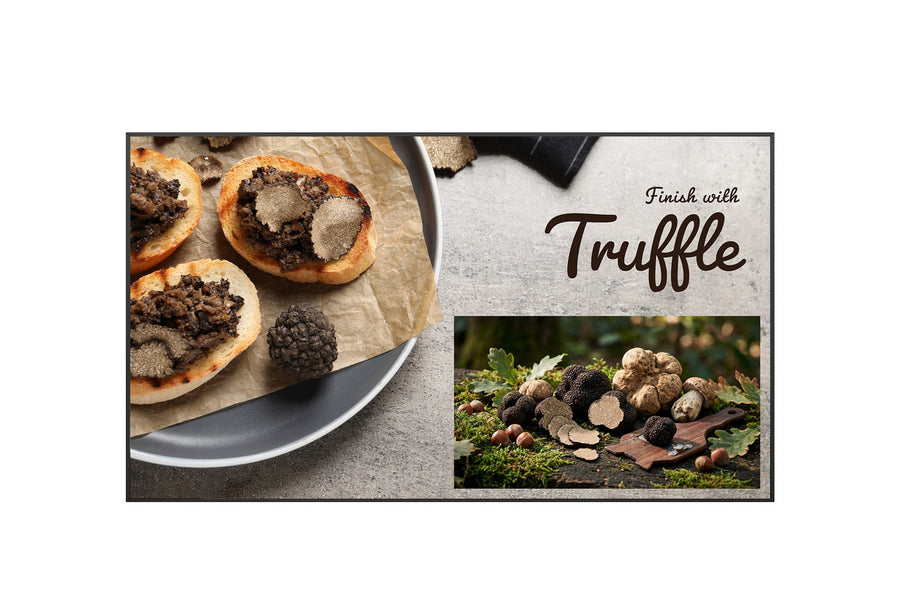

LG UP5R Series 75-inch 4K UHD Digital Signage Display – 75UP5R-E
The LG 75UP5R-E is a 75-inch 4K UHD digital signage display running webOS 8.0, with an ADS panel and 500 nits typical brightness. It suits lobbies, retail floors and meeting rooms that need centrally managed screens, and it carries an IP5X rating. Procure.ae, an authorised LG reseller, supplies the 75UP5R-E across the UAE.
The 75UP5R-E pairs a 3840 x 2160 ADS panel with a 16:9 aspect ratio, a 60 Hz refresh rate and an 8 ms (G to G) response time. Typical brightness is 500 nits with a 1,200:1 contrast ratio and a BT.709 95% color gamut. The webOS 8.0 platform has 32 GB of eMMC storage, built-in Wi-Fi and Bluetooth, and two 10 W speakers. Video Tag, PIP and 4-way PBP let one screen show several content zones, and the display is rated for 24/7 operation.
The 75UP5R-E suits lobbies, retail floors, meeting rooms and video walls where content is managed from a central server. It has HDMI, DisplayPort and USB inputs, and it can be controlled through RS232C, RJ45 LAN and IR. The manufacturer lists Crestron Connected, SNMP, Wake on LAN, HDMI-CEC and SuperSign CMS for integration. Compared with the 75UL5Q-E, this model adds a DisplayPort input and an IP5X rating.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- webOS 8.0 platform
- Native 4K UHD resolution
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
Local contents scheduling, group manager and screen share on webOS 8.0.
02
Native 4K UHD resolution
3840 x 2160 pixels on a 75-inch ADS panel.
03
500 nits brightness
500 nits typical brightness with a 1,200:1 contrast ratio.
04
DisplayPort input
DisplayPort In with HDCP 2.2 and 1.3 support, alongside three HDMI inputs.
05
Multi-zone display
PIP, PBP (4-way) and Video Tag (6) content layouts.
06
Dust protection rating
IP5X rating listed by the manufacturer.
07
Network control
RJ45 LAN, SNMP, Wake on LAN and Crestron Connected.
08
24/7 operation
Rated for 24/7 operation in portrait or landscape orientation.
Specifications
33 specificationsGeneral
Key FeatureswebOS 8.0, 24/7 operation, IP5X rating, PIP and PBP (4-way), Video Tag (6), Crestron Connected, Cisco certification, SuperSign CMS
Model75UP5R-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holders (6)
Display
Aspect Ratio16:9
BacklightEdge
Bezel Size12.9 mm (even)
Brightness500 nits
Color Depth1.07 Billion colors
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 8.0
Storage32 GB (eMMC)
Audio
Speaker Output10 W x 2 (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In (HDCP 2.2/1.3), RS232C In × 1, RS232C Out × 1, RJ45 (LAN) In × 1, IR In × 1, USB 3.0 × 1, USB 2.0 × 1, Audio Out
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption112 W (Smart Energy Saving, 70%)
Physical
Dimensions1679.5 x 958.7 x 29.7 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight35.7 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ErP, Energy Star, ePEAT (US)
IP RatingIP5X
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 75UP5R-E?
The LG 75UP5R-E is a 75-inch 4K UHD digital signage display with webOS 8.0, an ADS panel and 500 nits typical brightness. It is designed for continuous operation in commercial spaces, with built-in speakers, Wi-Fi and Bluetooth.
Does the 75UP5R-E have a DisplayPort input?
Yes. The display has a DisplayPort input with HDCP 2.2 and 1.3 support, alongside three HDMI inputs. Two USB ports, RS232C in and out, and an RJ45 LAN port are also fitted for connection and control.
Can the 75UP5R-E be mounted in portrait?
Yes. The manufacturer lists portrait and landscape orientation, with screen rotation and external input rotation functions. The VESA interface is 600 x 400 mm and the head weighs 35.7 kg, so check the bracket rating before installation.
Does the 75UP5R-E integrate with building control systems?
Yes. It supports RS232C control, an RJ45 LAN port, SNMP, Wake on LAN, HDMI-CEC and Crestron Connected. These allow control and monitoring from a central system across a network of displays.
Is the 75UP5R-E suitable for a video wall?
Yes. The manufacturer lists Tile Mode Setting for this model, which supports video wall configurations. Video Tag with six tags and 4-way PBP can split one screen into several content zones.
Can I buy the 75UP5R-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
