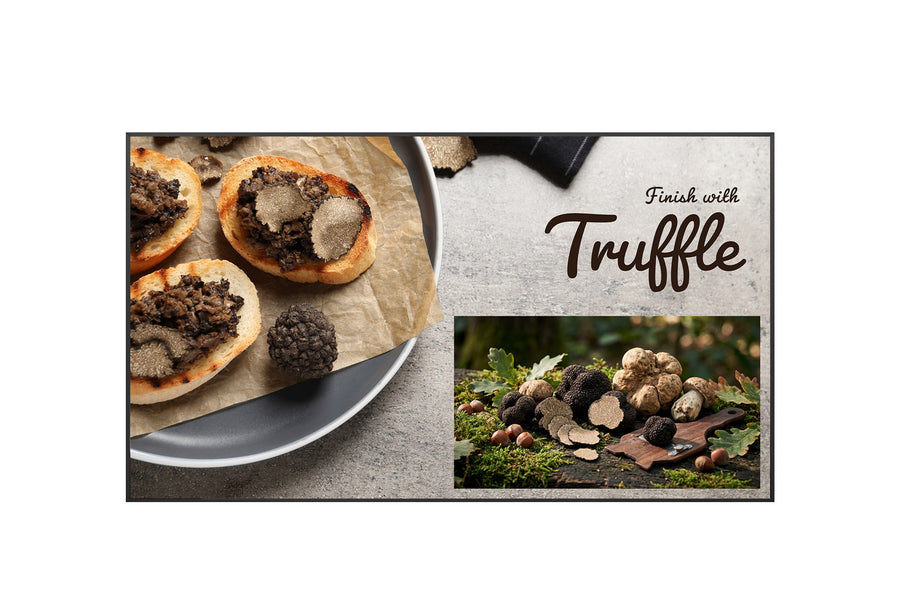

LG UP5R Series 75-inch 4K UHD Digital Signage Display – 75UP5R-E
The LG 75UP5R-E is a 75-inch 4K UHD digital signage display running webOS 8.0, with an ADS panel and 500 nits typical brightness. It suits lobbies, retail floors and meeting rooms that need centrally managed screens, and it carries an IP5X rating. Procure.ae, an authorised LG reseller, supplies the 75UP5R-E across the UAE.
The 75UP5R-E pairs a 3840 x 2160 ADS panel with a 16:9 aspect ratio, a 60 Hz refresh rate and an 8 ms (G to G) response time. Typical brightness is 500 nits with a 1,200:1 contrast ratio and a BT.709 95% color gamut. The webOS 8.0 platform has 32 GB of eMMC storage, built-in Wi-Fi and Bluetooth, and two 10 W speakers. Video Tag, PIP and 4-way PBP let one screen show several content zones, and the display is rated for 24/7 operation.
The 75UP5R-E suits lobbies, retail floors, meeting rooms and video walls where content is managed from a central server. It has HDMI, DisplayPort and USB inputs, and it can be controlled through RS232C, RJ45 LAN and IR. The manufacturer lists Crestron Connected, SNMP, Wake on LAN, HDMI-CEC and SuperSign CMS for integration. Compared with the 75UL5Q-E, this model adds a DisplayPort input and an IP5X rating.
Key features
Specifications
| Key Features | webOS 8.0, 24/7 operation, IP5X rating, PIP and PBP (4-way), Video Tag (6), Crestron Connected, Cisco certification, SuperSign CMS |
| Model | 75UP5R-E |
| Type | Digital Signage Display |
| What's in the Box | Remote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holders (6) |
| Aspect Ratio | 16:9 |
| Backlight | Edge |
| Bezel Size | 12.9 mm (even) |
| Brightness | 500 nits |
| Color Depth | 1.07 Billion colors |
| Color Gamut | BT.709 95% |
| Contrast Ratio | 1,200:1 |
| Orientation | Portrait and landscape |
| Panel Technology | ADS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Viewing Angle | 178° x 178° |
| Duty Cycle | 24/7 |
| Operating System | webOS 8.0 |
| Storage | 32 GB (eMMC) |
| Speaker Output | 10 W x 2 (built-in) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 3, DisplayPort In (HDCP 2.2/1.3), RS232C In × 1, RS232C Out × 1, RJ45 (LAN) In × 1, IR In × 1, USB 3.0 × 1, USB 2.0 × 1, Audio Out |
| Wi-Fi | Built-in Wi-Fi and Bluetooth |
| Power Consumption | 112 W (Smart Energy Saving, 70%) |
| Dimensions | 1679.5 x 958.7 x 29.7 mm |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 35.7 kg (head only) |
| Certifications | CB / NRTL, FCC Class B, CE, KC, ErP, Energy Star, ePEAT (US) |
| IP Rating | IP5X |
