LGDigital SignageSKU 55UL5Q-E

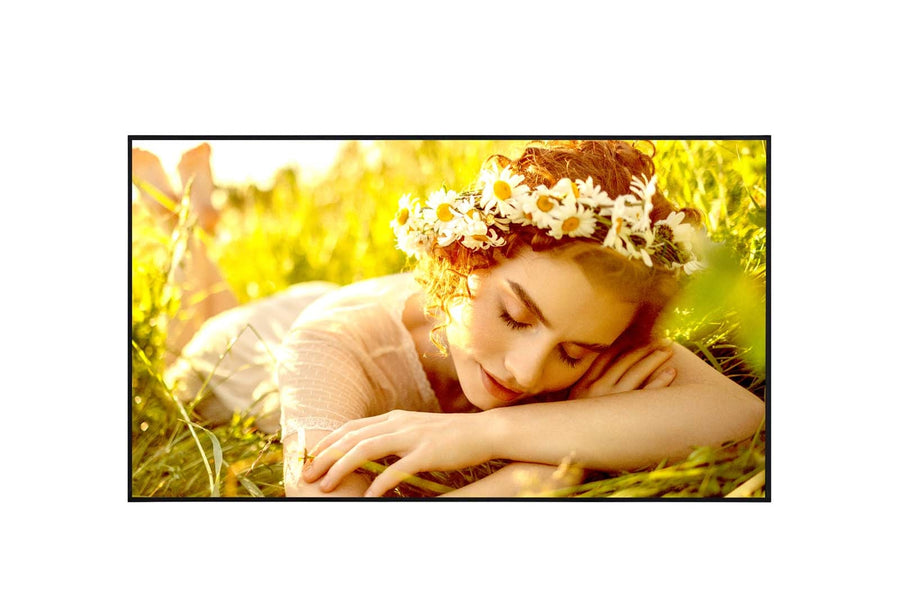

LG UL5Q Series 55-inch UHD Digital Signage Display – 55UL5Q-E
The LG 55UL5Q-E is a 55-inch 4K UHD digital signage display from the UL5Q series, rated for 24/7 operation in retail, corporate and public information settings. It offers 3840 x 2160 resolution, 500 nit typical brightness and webOS 6.1. Procure.ae, an authorised reseller, supplies the LG 55UL5Q-E across the UAE.
The 55UL5Q-E pairs a 55-inch 3840 x 2160 UHD panel with 500 nit typical brightness, a 1,200:1 typical contrast ratio and 1.07 billion colours. It is rated for 24/7 operation and can run in landscape or portrait orientation. Built-in Wi-Fi and Bluetooth, 8GB of eMMC storage and webOS 6.1 support local content scheduling, while two 10W speakers provide audio. Its 8ms response time (G to G) and 60Hz refresh rate keep motion clear.
The display suits retail stores, corporate reception areas, corridors and information points, with SuperSign CMS, SuperSign Cloud and Mobile CMS listed for content management. Group manager, video tag, PIP and 4-screen PBP settings support multi-screen layouts, and Crestron Connected, SNMP and RS232C control help with control-system integration. Compared with the 110-inch LG 110UH5Q-H, it runs at 60Hz and uses a 300 x 300mm VESA mount. Alternate codes 55UL5Q-E.AMAQ and 55UL5Q-EP are also listed for this model.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage
- Full UHD Resolution
- 24/7 Operation
- webOS 6.1 Platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full UHD Resolution
3840 x 2160 native resolution with 500 nit typical brightness for sharp, bright content.
02
24/7 Operation
Rated for 24/7 operation at 0 °C to 40 °C in landscape and 0 °C to 35 °C in portrait.
03
webOS 6.1 Platform
webOS 6.1 with local content scheduling, play via URL and a group manager.
04
Wi-Fi and Bluetooth
Built-in Wi-Fi and Bluetooth with 8GB of eMMC internal memory.
05
Multi-Screen Layouts
PIP, 4-screen PBP and four video tags for split-screen content.
06
Remote Management
SuperSign CMS, Control Manager, SNMP and Wake on LAN for managing networked displays.
07
Crestron Connected
Listed as Crestron Connected, with RS232C in and out for control.
08
Built-in Speakers
Two 10W speakers provide audio without an external sound system.
Specifications
43 specificationsGeneral
CompatibilityCrestron Connected
Key FeaturesSmart Energy Saving, auto brightness sensor, gyro sensor, PIP and 4-split PBP, local contents scheduling, tile mode, fail-over, Wake on LAN
Model55UL5Q-E
TypeDigital Signage
What's in the BoxRemote controller (2 batteries), power cord, regulation book, quick setup guide, warranty card, phone-to-D-Sub9 adapter
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size10.8 mm (even)
Brightness500 nits (typical)
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationLandscape, portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemwebOS 6.1
Storage8 GB (eMMC)
Audio
Audio OutAudio out × 1
Speaker Output10 W × 2 (built-in)
Connectivity
BluetoothBuilt-in
EthernetRJ45 in × 1
HDMI InputsHDMI In × 3
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS232C in × 1, out × 1
USB PortsUSB 2.0 × 2
Wi-FiBuilt-in
Power
Power Consumption86.8 W (Smart Energy Saving, 70%)
Standby Power0.5 W
Physical
ColorBlack
Dimensions1234.2 x 706.7 x 58.9 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (portrait: 0 to 35 °C)
Shipping Dimensions1380 x 825 x 118 mm
Shipping Weight16.2 kg
Tilt15° face up / face down
VESA Mount300 x 300 mm
Weight12 kg
Compliance
CertificationsCB/NRTL, FCC Class B, CE, KC, ePEAT (US)
Downloads
Manufacturer documents for the LG UL5Q Series 55-inch UHD Digital Signage Display – 55UL5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the LG 55UL5Q-E have?
It has a 3840 x 2160 (UHD) native resolution and 500 nit typical brightness. Its typical contrast ratio is 1,200:1, and dynamic contrast is rated at 1,000,000:1. The ADS panel has an 8ms response time (G to G) and a 60Hz refresh rate.
Can the 55UL5Q-E be used in portrait orientation?
Yes. The 55UL5Q-E supports both portrait and landscape orientation. Portrait operation is rated for 0 °C to 35 °C, while landscape operation is rated for 0 °C to 40 °C, and the display has a screen rotation setting.
Can the 55UL5Q-E be wall-mounted?
Yes. It uses a 300 x 300mm VESA standard mount interface. The head weighs 12 kg and is 58.9mm deep, and the bezel is an even 10.8mm on all sides.
Does the 55UL5Q-E need a PC to play content?
No. Local content scheduling and play via URL are built into webOS 6.1, with 8GB of eMMC storage. SuperSign CMS, SuperSign Cloud and Mobile CMS are listed for managing content remotely.
Does the 55UL5Q-E integrate with control systems?
Yes. It is listed as Crestron Connected and supports RS232C in and out, RJ45 LAN, SNMP and Control Manager. It also lists HDMI-CEC support. Control Manager and Wake on LAN are listed for remote power and management tasks.
