LGDigital SignageSKU 65UL5Q-M

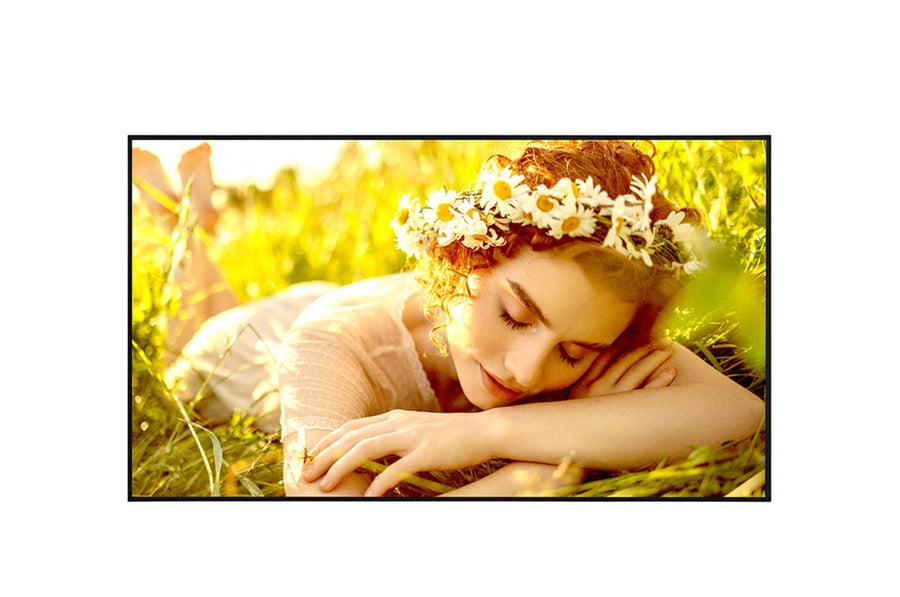

LG UL5Q 65-inch UHD Digital Signage Display – 65UL5Q-M
The LG 65UL5Q-M is a 65-inch UHD digital signage display with an ADS panel, 500 nits typical brightness and webOS 6.1. It is rated for 24/7 operation and supports tile mode for video walls, Crestron connectivity and SNMP management. Procure.ae supplies the LG 65UL5Q-M across the UAE.
The ADS panel delivers 3840 x 2160 UHD resolution at 60 Hz, 500 nits typical brightness and a 1,200:1 contrast ratio. Its DCI 80% colour gamut and 1.07 billion colours suit clear signage content. The display supports portrait and landscape orientation, a 178 x 178 degree viewing angle and an 8 ms response time. It includes 8 GB of internal storage, a temperature sensor, an auto brightness sensor, a gyro sensor and two built-in 10 W speakers.
The 65UL5Q-M runs webOS 6.1 with built-in Wi-Fi and Bluetooth, local content scheduling and group management. Tile Mode supports video walls, and the display supports Screen Share and Video Tag. SuperSign CMS, Mobile CMS, Connected Care and Crestron connectivity allow remote management. Mount it on the 300 x 300 mm VESA interface, with tilt of up to 15 degrees listed for both face-up and face-down positions. The model is also listed as 65UL5Q-M.AMAQ.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
- UHD ADS panel
- Brightness and contrast
- webOS 6.1 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
UHD ADS panel
3840 x 2160 resolution at 60 Hz with 1.07 billion colours.
02
Brightness and contrast
500 nits typical brightness with a 1,200:1 contrast ratio.
03
webOS 6.1 platform
Built-in Wi-Fi and Bluetooth with Screen Share support.
04
Content scheduling
Local scheduling, group manager and up to 4 video tags.
05
Video wall ready
Tile Mode and Gapless Playback with a 10.8 mm even bezel.
06
Remote management
SNMP, Crestron connectivity, RS-232C control and Wake on LAN.
07
Mobile and cloud management
Mobile CMS and Connected Care support.
08
Built-in audio
Two 10 W speakers for in-room sound.
Specifications
31 specificationsGeneral
Key FeatureswebOS 6.1, built-in Wi-Fi and Bluetooth, tile mode, Crestron connectivity, SNMP, SuperSign CMS, Mobile CMS, Connected Care
Model65UL5Q-M
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, regulation book, easy setup guide, warranty card, phone to D-Sub 9 gender adapter
Display
Aspect Ratio16:9
Bezel Size10.8 mm even
Brightness500 nits (typical)
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size65 inch
Viewing Angle178 x 178 degrees
Performance
Operating SystemwebOS 6.1
Storage8 GB
Audio
Speaker Output2 × 10 W built-in
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS-232C In/Out, RJ-45 LAN In × 1, USB 2.0 × 2, Audio Out × 1
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption0.5 W (power off)
Physical
ColorBlack bezel
Dimensions1452.9 x 829.2 x 59.7 mm (W x H x D)
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C (portrait 0 to 35 °C)
TiltFace-up or face-down up to 15°
VESA Mount300 x 300 mm
Compliance
CertificationsCB, FCC Class B, CE, ePEAT (US)
Downloads
Manufacturer documents for the LG UL5Q 65-inch UHD Digital Signage Display – 65UL5Q-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the LG 65UL5Q-M?
The LG 65UL5Q-M has a 65-inch ADS screen with a native resolution of 3840 x 2160 (4K UHD) at 60 Hz. It uses a 16:9 aspect ratio, supports portrait and landscape orientation, and lists 500 nits typical brightness with a 1,200:1 contrast ratio.
Can the 65UL5Q-M run 24/7 in a busy lobby or retail space?
Yes. The manufacturer rates the LG 65UL5Q-M for 24/7 operation, with an operating temperature of 0 to 40 °C and humidity of 10% to 80%. Portrait orientation is rated for 0 to 35 °C, so check the ambient temperature for portrait installs.
How is the LG 65UL5Q-M mounted?
The display uses a 300 x 300 mm VESA interface, so a compatible wall or stand bracket fits it. The monitor measures 1452.9 x 829.2 x 59.7 mm. The manufacturer lists a face-up and face-down tilt of up to 15 degrees. Confirm the bracket and wall details with Procure.ae before installation.
Does the 65UL5Q-M work with SuperSign and network management tools?
Yes. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB, Mobile CMS and Connected Care, along with Crestron connectivity, SNMP, RS-232C control and Wake on LAN. The options in use depend on the control system set up on site.
Can the 65UL5Q-M be used in a video wall?
Yes. The manufacturer lists Tile Mode for video walls and Gapless Playback for continuous content. The bezel is 10.8 mm on all sides, so the overall wall size and frame design depend on how many displays are used. Procure.ae can advise on the configuration.
Can I buy the 65UL5Q-M in the UAE?
