LGDigital SignageSKU 86UL3J-N

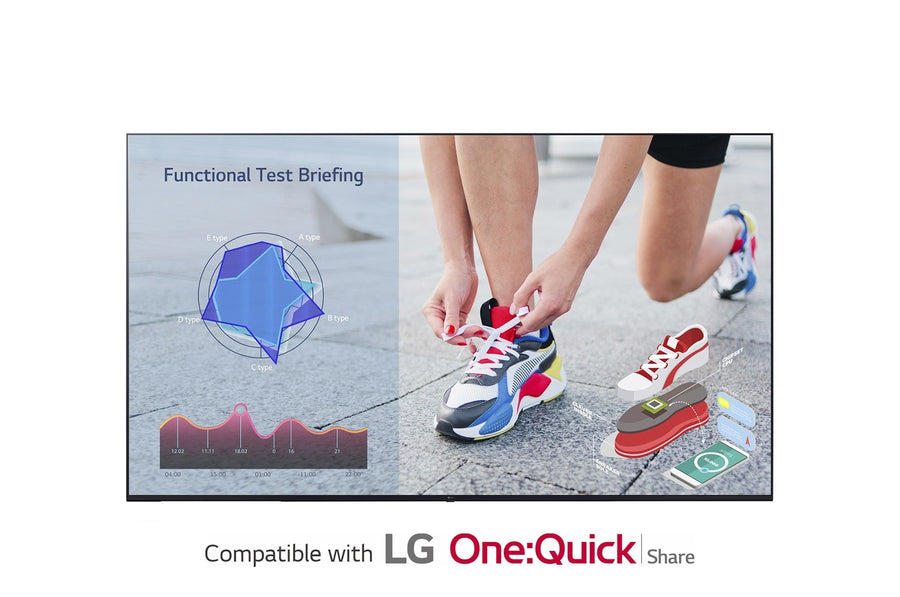

LG UL3J Series 86-inch 4K UHD Digital Signage Display – 86UL3J-N
The LG 86UL3J-N is a discontinued 86-inch 4K UHD digital signage display with a 120 Hz refresh rate and 330 nits typical brightness. It is built for landscape signage in lobbies, meeting areas and information displays, and supports SuperSign CMS. Procure.ae, an authorised LG reseller, can confirm current availability and recommend a successor model in the UAE.
The 86UL3J-N uses a 3840 x 2160 ADS panel with 330 nits typical brightness, a 1,400:1 contrast ratio and a 120 Hz refresh rate. The 8 ms (G to G) response time and 178° x 178° viewing angles suit moving content. The DCI 80% color gamut shows 1.07 billion colors using advanced 8-bit processing. It runs webOS 6.0 from 16 GB of eMMC storage and is rated for 16 hours a day, seven days a week.
The 86UL3J-N fits lobbies, meeting areas, reception desks and information displays used in landscape orientation only. Tile Mode, PIP and Video Tag (4) support multi-screen layouts, and Crestron Connected, Wake on LAN and HDMI-CEC integrate it with control systems. The 600 x 400 mm VESA interface sets the bracket requirement. Compared with the 86UH5Q-E, this model is rated at 330 nits typical brightness and 120 Hz refresh rate, and it is landscape-only.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
330 nits
Type
Digital Signage Display
- webOS 6.0 platform
- 120 Hz refresh rate
- Native 4K UHD resolution
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 6.0 platform
Local contents scheduling, group manager and screen share.
02
120 Hz refresh rate
120 Hz refresh with an 8 ms (G to G) response time.
03
Native 4K UHD resolution
3840 x 2160 on an 86-inch ADS panel.
04
330 nits brightness
330 nits typical brightness with a 1,400:1 contrast ratio.
05
Multi-screen layouts
Tile Mode, PIP and Video Tag (4) for layouts.
06
Crestron integration
Crestron Connected and HDMI-CEC for control integration.
07
SuperSign software
SuperSign CMS, SuperSign Control+ and SuperSign WB.
08
16-hour daily operation
Rated for 16 hours a day, seven days a week.
Specifications
28 specificationsGeneral
Key FeatureswebOS 6.0, 16-hour daily operation, Crestron Connected, SuperSign CMS, SuperSign Control+, Tile Mode, Video Tag (4), HDMI-CEC
Model86UL3J-N
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, regulation book, phone to D-Sub 9 gender adapter, cable holder
Display
Aspect Ratio16:9
BacklightDirect
Brightness330 nits
Color Depth1.07 Billion colors (advanced 8-bit)
Color GamutDCI 80%
Contrast Ratio1,400:1
OrientationLandscape only
Panel TechnologyADS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Duty Cycle16 hours/day, 7 days/week
Operating SystemwebOS 6.0
Storage16 GB (eMMC)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3 (HDCP 2.2/1.4), RS232C In and Out (4-pin phone jack), RJ45 (LAN) In × 1, USB 2.0 Type A × 2, Audio Out
Physical
Dimensions1927 x 1104 x 59.9 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight45.2 kg (head only)
Compliance
CertificationsCB, FCC Class A, CE, ePEAT (US)
Downloads
Manufacturer documents for the LG UL3J Series 86-inch 4K UHD Digital Signage Display – 86UL3J-N — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 86UL3J-N?
The LG 86UL3J-N is an 86-inch 4K UHD webOS digital signage display with a 120 Hz refresh rate and 330 nits typical brightness. It is a discontinued model, built for landscape signage in commercial spaces.
Does the 86UL3J-N support portrait mounting?
No. The manufacturer lists the 86UL3J-N for landscape orientation only, with portrait not supported. Plan the mount and content layout around landscape use before installation, and confirm the requirement with Procure.ae.
What VESA mount does the 86UL3J-N use?
The 86UL3J-N uses a 600 x 400 mm VESA standard mount interface. Its monitor dimensions are 1927 x 1104 x 59.9 mm, and the head weighs 45.2 kg, so check the wall bracket span and rating before installation.
Can the 86UL3J-N be controlled over a network?
Yes. It has an RJ45 LAN port, RS232C in and out on 4-pin phone jacks, Wake on LAN and Crestron Connected support. SNMP and Status Mailing are also listed for monitoring from a central system.
