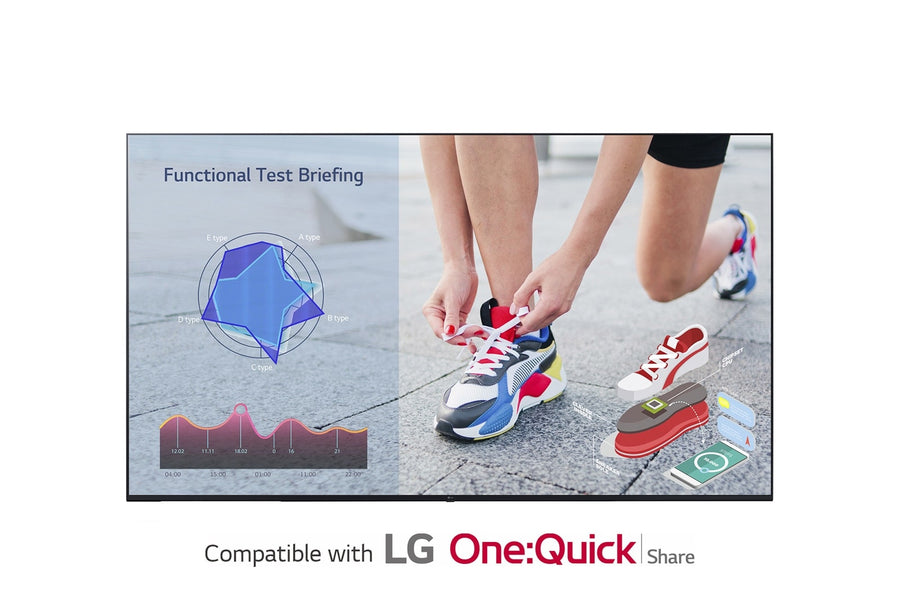

LG UL3J Series 86-inch 4K UHD Digital Signage Display – 86UL3J-N
The LG 86UL3J-N is a discontinued 86-inch 4K UHD digital signage display with a 120 Hz refresh rate and 330 nits typical brightness. It is built for landscape signage in lobbies, meeting areas and information displays, and supports SuperSign CMS. Procure.ae, an authorised LG reseller, can confirm current availability and recommend a successor model in the UAE.
The 86UL3J-N uses a 3840 x 2160 ADS panel with 330 nits typical brightness, a 1,400:1 contrast ratio and a 120 Hz refresh rate. The 8 ms (G to G) response time and 178° x 178° viewing angles suit moving content. The DCI 80% color gamut shows 1.07 billion colors using advanced 8-bit processing. It runs webOS 6.0 from 16 GB of eMMC storage and is rated for 16 hours a day, seven days a week.
The 86UL3J-N fits lobbies, meeting areas, reception desks and information displays used in landscape orientation only. Tile Mode, PIP and Video Tag (4) support multi-screen layouts, and Crestron Connected, Wake on LAN and HDMI-CEC integrate it with control systems. The 600 x 400 mm VESA interface sets the bracket requirement. Compared with the 86UH5Q-E, this model is rated at 330 nits typical brightness and 120 Hz refresh rate, and it is landscape-only.
Key features
Specifications
| Key Features | webOS 6.0, 16-hour daily operation, Crestron Connected, SuperSign CMS, SuperSign Control+, Tile Mode, Video Tag (4), HDMI-CEC |
| Model | 86UL3J-N |
| Type | Digital Signage Display |
| What's in the Box | Remote controller (2 batteries), power cord, regulation book, phone to D-Sub 9 gender adapter, cable holder |
| Aspect Ratio | 16:9 |
| Backlight | Direct |
| Brightness | 330 nits |
| Color Depth | 1.07 Billion colors (advanced 8-bit) |
| Color Gamut | DCI 80% |
| Contrast Ratio | 1,400:1 |
| Orientation | Landscape only |
| Panel Technology | ADS |
| Refresh Rate | 120 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (G to G) |
| Screen Size | 86 inch |
| Viewing Angle | 178° x 178° |
| Duty Cycle | 16 hours/day, 7 days/week |
| Operating System | webOS 6.0 |
| Storage | 16 GB (eMMC) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 3 (HDCP 2.2/1.4), RS232C In and Out (4-pin phone jack), RJ45 (LAN) In × 1, USB 2.0 Type A × 2, Audio Out |
| Dimensions | 1927 x 1104 x 59.9 mm |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 45.2 kg (head only) |
| Certifications | CB, FCC Class A, CE, ePEAT (US) |
