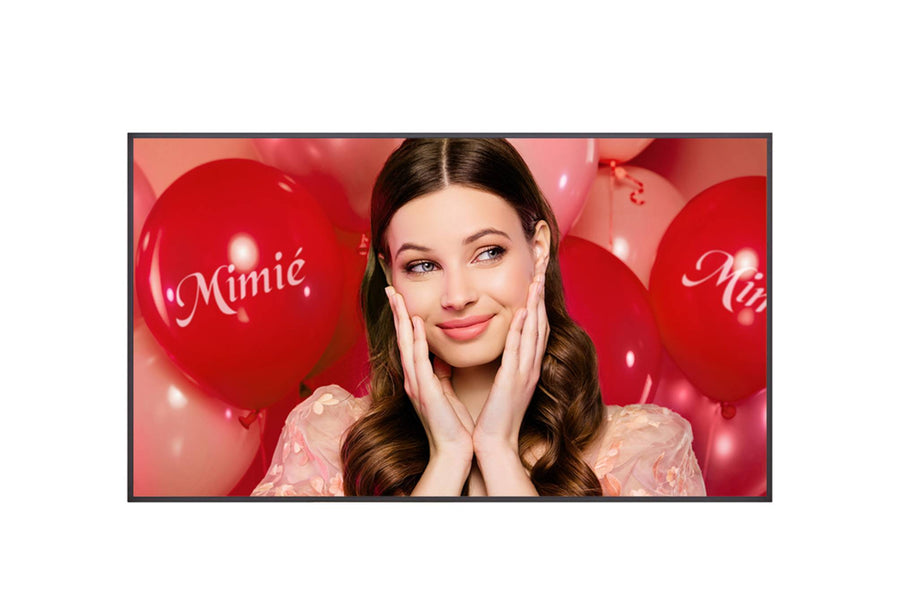

LG UH7Q 55-inch Digital Signage Display – 55UH7Q-E
The LG 55UH7Q-E is a 55-inch 4K UHD digital signage display for retail, corporate and public information use. It has a 700-nit typical ADS panel, webOS 8.0 with built-in Wi-Fi and Bluetooth, and 24/7 operation. Procure.ae, an authorised reseller, supplies it in the UAE with delivery and installation.
The LG 55UH7Q-E is a 55-inch 3840 x 2160 display with ADS panel technology, 700 nits typical brightness and 1,200:1 typical contrast. It shows 1.07 billion colors across a BT.709 95% gamut, with a 178º x 178º viewing angle and an 8 ms response time. The display is listed for 60 Hz refresh and 24/7 operation. Built-in 16 GB eMMC storage runs webOS 8.0 with local content scheduling and group management included.
The 55UH7Q-E suits signage installations that need remote management and multi-screen layouts. SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud, plus Mobile CMS and LG Connected Care, are listed in the manufacturer's data, and Crestron Connected and Cisco certification are included. PBP, PIP and Tile Mode settings support multi-picture and tiled layouts. The display mounts on a 300 x 300 mm VESA pattern and supports portrait and landscape orientation.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits (typical)
Type
Digital Signage Display
- 4K UHD ADS panel
- 700-nit typical brightness
- webOS 8.0 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD ADS panel
Native 3840 x 2160 resolution with 1,200:1 typical contrast and 1,000,000:1 dynamic contrast.
02
700-nit typical brightness
Typical brightness of 700 nits with a 178º x 178º viewing angle and 8 ms response time.
03
webOS 8.0 platform
Runs webOS 8.0 with 16 GB of internal eMMC storage.
04
Built-in Wi-Fi and Bluetooth
Wireless connectivity built into the display for network content management.
05
Local content scheduling
Local Contents Scheduling, Group Manager and Fail over are included for multi-display operation.
06
Multi-picture modes
PBP with four pictures, PIP, four Video Tag inputs and Tile Mode Setting.
07
SuperSign and enterprise integration
SuperSign CMS, Control+, WB and Cloud, with Mobile CMS, Connected Care, Crestron Connected and Cisco certification.
08
Sensors and speakers
Temperature and gyro sensors, plus 10 W × 2 built-in speakers.
Specifications
36 specificationsGeneral
Key Features4K UHD ADS panel, 700-nit typical brightness, 1,200:1 contrast, webOS 8.0, 16 GB storage, Wi-Fi and Bluetooth, PIP and PBP, SuperSign CMS and Control+
Model55UH7Q-E
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, regulation book, RS232C gender adapter
Display
Aspect Ratio16:9
BacklightEdge-lit
Bezel Size11.4 mm even bezel
Brightness700 nits (typical)
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,200:1 (typical)
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 8.0
Storage16 GB
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, RS232C In/Out, RJ45 LAN In × 1, IR In, USB 2.0 Type A × 2, Audio Out
Wi-FiBuilt-in
Power
Power Consumption71 W (Smart Energy Saving 70%)
Power SourceBuilt-in power supply
Physical
Dimensions1240.1 x 711.9 x 29.7 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltUp to 15° face down (at 40 °C)
VESA Mount300 x 300 mm
Weight14.3 kg (display head)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US)
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH7Q 55-inch Digital Signage Display – 55UH7Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 55UH7Q-E?
It is a 55-inch 4K UHD digital signage display with an ADS panel, 700-nit typical brightness, webOS 8.0 and built-in Wi-Fi and Bluetooth. It is designed for continuous 24/7 operation, with local content scheduling and remote management software.
Is the LG 55UH7Q-E suitable for 24/7 use?
Yes. The manufacturer lists 24/7 operating hours, and Smart Energy Saving at the 70% setting is listed at 71 W. The operating temperature is 0 to 40 °C and humidity is 10% to 80%, which should be checked against the installation site.
Can the LG 55UH7Q-E be used in portrait orientation?
Yes. The manufacturer lists portrait and landscape orientation, plus screen rotation and external input rotation features. The display mounts on a 300 x 300 mm VESA pattern, and Procure.ae provides installation across the UAE, including portrait mounts.
Can the LG 55UH7Q-E be used in a video wall?
Yes. The manufacturer lists Tile Mode Setting and PBP with four pictures, so the display can be used in tiled multi-screen layouts. It mounts on a 300 x 300 mm VESA pattern.
Can I buy the LG 55UH7Q-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
