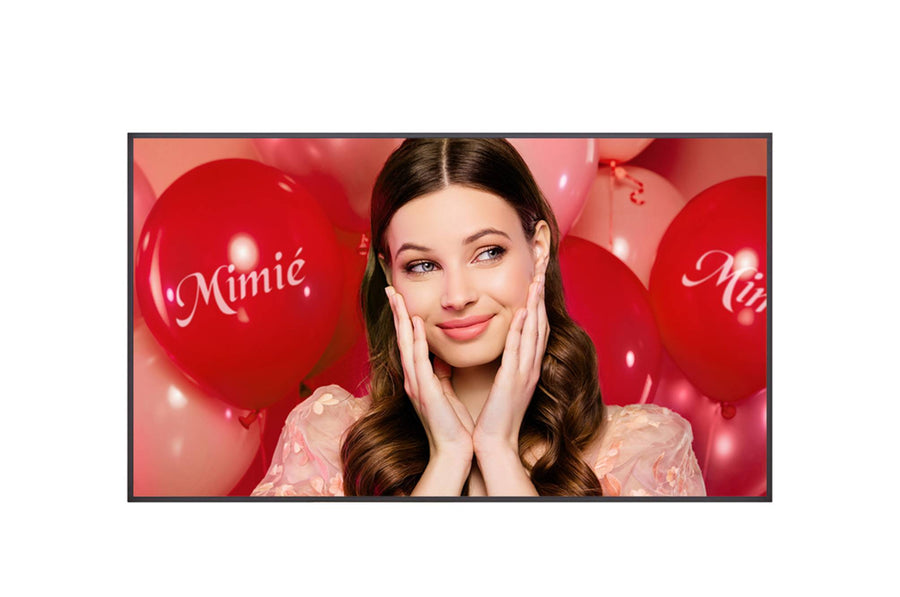

LG UH7Q 49-inch 4K UHD Digital Signage Display – 49UH7Q-E
The LG 49UH7Q-E is a 49-inch 4K UHD IPS digital signage display for high-brightness signage networks. It has 700-nit typical brightness, 16 GB storage and built-in webOS 8.0, and it is rated for 24/7 operation. Procure.ae supplies the LG 49UH7Q-E across the UAE, with delivery and installation.
The 49UH7Q-E has an IPS panel with a native resolution of 3840 x 2160 and a typical brightness of 700 nits. Its typical contrast ratio is 1,100:1, and its dynamic contrast is rated at 1,000,000:1. Viewing angles are 178 degrees horizontal and vertical. The display supports 1.07 billion colors with BT.709 95% color gamut coverage. The response time is listed as 8 ms rise and 10 ms fall, with a 60 Hz refresh rate. The manufacturer rates the unit for 24/7 operation in portrait or landscape orientation.
Use the 49UH7Q-E for lobbies, retail floors, corporate reception areas and video walls where content is managed centrally. Built-in webOS 8.0 supports local content scheduling, group management, play via URL, tile mode and screen rotation. It also lists Crestron Connected, Cisco certification, SNMP and HDMI-CEC support, along with SuperSign CMS, SuperSign Cloud and Mobile CMS. Compared with the 43UH7Q-E, this 49-inch model uses IPS instead of ADS and has a 300 x 300 mm VESA interface and an 11.4 kg head.
Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- 4K UHD IPS panel
- webOS 8.0 platform
- Multi-screen layouts
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 native resolution with 700 nits typical brightness.
02
webOS 8.0 platform
Built-in webOS 8.0 with 16 GB eMMC internal memory.
03
Multi-screen layouts
PIP, four-split PBP, tile mode and screen rotation settings.
04
Cloud and CMS software
SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud.
05
24/7 operation
Rated by the manufacturer for 24/7 operation, in portrait or landscape orientation.
06
Network control
RS-232C, RJ45 LAN and IR input, with SNMP support for remote management.
07
Certified integration
Cisco certification and Crestron Connected support are listed.
08
Built-in sensors
Temperature, auto brightness and acceleration sensors, plus Wi-Fi and Bluetooth.
Specifications
41 specificationsGeneral
Key Features4K UHD IPS panel, webOS 8.0, 16 GB storage, PIP and four-split PBP, tile mode, SuperSign CMS, Crestron Connected, Cisco certified, IP5X rating
Model49UH7Q-E
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick start guide, regulation book, RS-232C phone adapter, IR receiver
Display
Aspect Ratio16:9
BacklightEdge-lit
Bezel Size11.4 mm even bezel
Brightness700 nits
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response TimeTr 8 ms / Tf 10 ms
Screen Size49 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 8.0
Storage16 GB eMMC
Audio
DisplayPort1 In (HDCP 2.2/1.4)
Speaker Output10 W × 2 (built-in)
Connectivity
HDMI Inputs3
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, RS-232C In/Out, RJ45 LAN × 1, IR In, USB 2.0 × 2, Audio Out
USB PortsUSB 2.0 Type A × 2
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption61 W (smart energy saving)
Standby Power0.5 W
Physical
ColorBlack
Dimensions1104.3 x 635.5 x 29.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1215.0 x 742.0 x 142.0 mm
Shipping Weight14.2 kg
TiltUp to 15° face-down (at 40 °C)
VESA Mount300 x 300 mm
Weight11.4 kg (head)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US)
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH7Q 49-inch 4K UHD Digital Signage Display – 49UH7Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 49UH7Q-E?
The LG 49UH7Q-E is a 49-inch 4K UHD IPS digital signage display in the UH7Q series. It has a 700-nit typical brightness rating, a 3840 x 2160 resolution and webOS 8.0 built in. The manufacturer rates it for 24/7 operation.
Is the 49UH7Q-E suitable for video walls?
Yes. The 49UH7Q-E includes a tile mode setting and local network sync. The manufacturer specifications list daisy chain as not supported, so each display needs its own input feed. Video wall layouts are set up through the tile mode settings.
Does the 49UH7Q-E support 4K content?
Yes. The 49UH7Q-E has a native resolution of 3840 x 2160. Its video inputs are HDMI In × 3 and DisplayPort In (HDCP 2.2/1.4). Confirm the source output and cable with the installer.
What mounting does the 49UH7Q-E use?
The 49UH7Q-E uses a VESA standard mount interface of 300 x 300 mm. The head weighs 11.4 kg, and the monitor measures 1104.3 x 635.5 x 29.7 mm. Check the bracket rating and VESA pattern before installation.
Does the 49UH7Q-E integrate with other systems?
Yes. The manufacturer lists Crestron Connected, Cisco certification, SNMP, HDMI-CEC, Beacon and webRTC support. It also supports SuperSign CMS and Mobile CMS for content management, with RS-232C and RJ45 LAN ports for control.
