LGDigital SignageSKU 43UH7Q-E

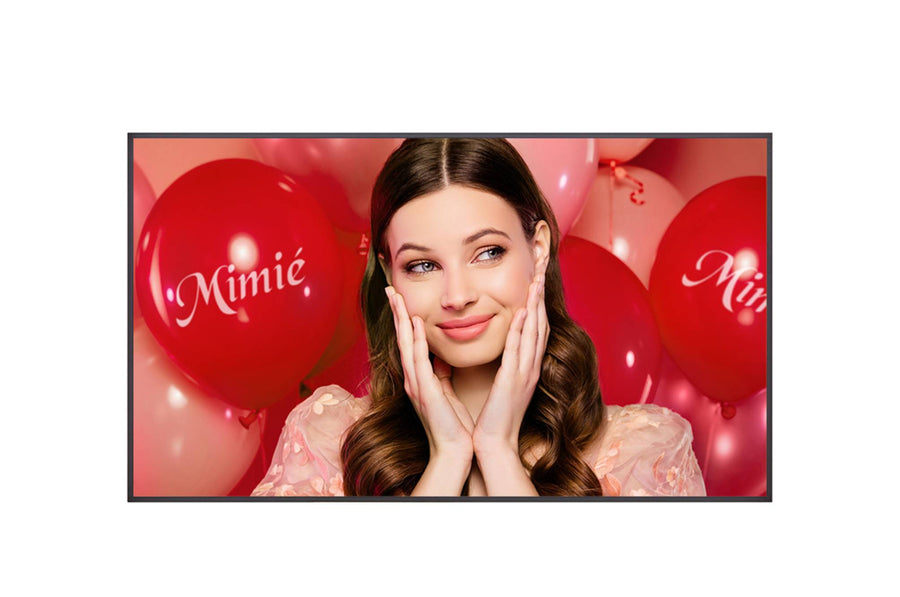

LG UH7Q 43-inch 4K UHD Digital Signage Display – 43UH7Q-E
The LG 43UH7Q-E is a 43-inch 4K UHD digital signage display for high-brightness indoor signage networks. It has a 3840 x 2160 resolution, a 700-nit typical brightness rating and 24/7 operation, with webOS 8.0 built in. Procure.ae supplies the LG 43UH7Q-E across the UAE.
The 43UH7Q-E uses an ADS panel with a native resolution of 3840 x 2160 and a typical brightness of 700 nits. Its typical contrast ratio is 1,200:1, and viewing angles are rated at 178 degrees horizontal and vertical. The display supports 1.07 billion colors with BT.709 95% color gamut coverage. An 8 ms grey-to-grey response time and a 60 Hz refresh rate suit video playback. The manufacturer rates the unit for 24/7 operation in portrait or landscape orientation.
Use the 43UH7Q-E for lobbies, reception areas, corridors and retail or information screens where content is managed centrally. Built-in webOS 8.0 with 16 GB eMMC storage runs local content scheduling, play via URL and SuperSign CMS. It also supports Crestron Connected, Cisco certification, SNMP and Wake on LAN for network management. Compared with the 49-inch 49UH7Q-E, this 43-inch model has a 200 x 200 mm VESA interface and a lower 48 W smart-energy-saving rating.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- 4K UHD panel
- webOS 8.0 platform
- Multi-screen layouts
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 native resolution on an ADS panel with 700 nits typical brightness.
02
webOS 8.0 platform
Built-in webOS 8.0 with 16 GB eMMC internal memory for local content.
03
Multi-screen layouts
PIP, four-split PBP and tile mode settings for video wall and split-screen layouts.
04
Content management
SuperSign CMS, SuperSign Control+ and Local Contents Scheduling for playlists.
05
24/7 operation
Rated by the manufacturer for 24/7 operation, in portrait or landscape orientation.
06
Network control
RS-232C, RJ45 LAN and IR control, with SNMP, Wake on LAN and Crestron Connected support.
07
Built-in sensors
Temperature, auto brightness and acceleration (gyro) sensors are built in.
08
Connection ports
HDMI In × 3, DisplayPort In, USB 2.0 × 2 and an audio output.
Specifications
41 specificationsGeneral
Key FeaturesBuilt-in webOS 8.0, 4K UHD 700-nit panel, 24/7 operation, SuperSign CMS compatible, Crestron Connected, Cisco certified, tile mode, portrait and landscape
Model43UH7Q-E
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick start guide, regulation book, RS-232C phone adapter, IR receiver
Display
Aspect Ratio16:9
BacklightEdge-lit
Bezel Size11.4 mm even bezel
Brightness700 nits
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size43 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 8.0
Storage16 GB eMMC
Audio
DisplayPort1 In (HDCP 2.2/1.4)
Speaker Output10 W × 2 (built-in)
Connectivity
HDMI Inputs3
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, RS-232C In/Out, RJ45 LAN × 1, IR In, USB 2.0 × 2, Audio Out
USB PortsUSB 2.0 Type A × 2
Wi-FiBuilt-in Wi-Fi
Power
Power Consumption48 W (smart energy saving)
Standby Power0.5 W
Physical
ColorBlack
Dimensions971.7 x 561.0 x 29.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1055.0 x 660.0 x 140.0 mm
Shipping Weight11.3 kg
TiltUp to 15° face-down (at 40 °C)
VESA Mount200 x 200 mm
Weight9.4 kg (head)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US)
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH7Q 43-inch 4K UHD Digital Signage Display – 43UH7Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 43UH7Q-E?
The LG 43UH7Q-E is a 43-inch 4K UHD digital signage display in the UH7Q series. It has a 700-nit typical brightness rating, a 3840 x 2160 resolution and built-in webOS 8.0. The manufacturer rates it for 24/7 operation.
Is the 43UH7Q-E bright enough for well-lit rooms?
Yes. The 43UH7Q-E has a typical brightness of 700 nits, which is the rating the manufacturer lists for high-brightness signage. The manufacturer gives a typical value rather than a peak figure, so the specifications do not state a maximum brightness.
Can the 43UH7Q-E be used in a video wall?
Yes. The 43UH7Q-E includes a tile mode setting for video wall layouts and supports local network sync and RS-232C sync. The manufacturer lists daisy chaining as not supported, so each display needs its own input feed.
What mounting does the 43UH7Q-E use?
The 43UH7Q-E uses a VESA standard mount interface of 200 x 200 mm. The head weighs 9.4 kg, and the manufacturer rates the tilt at up to 15 degrees face-down at 40 °C. Check the wall or stand against the VESA pattern before installation.
Does the 43UH7Q-E integrate with other systems?
Yes. The manufacturer lists SNMP, Crestron Connected, Cisco certification, HDMI-CEC, Beacon and webRTC support. SuperSign CMS handles content management, and RS-232C and RJ45 LAN ports allow control from external systems.
