LGDigital SignageSKU 49UH7F-H

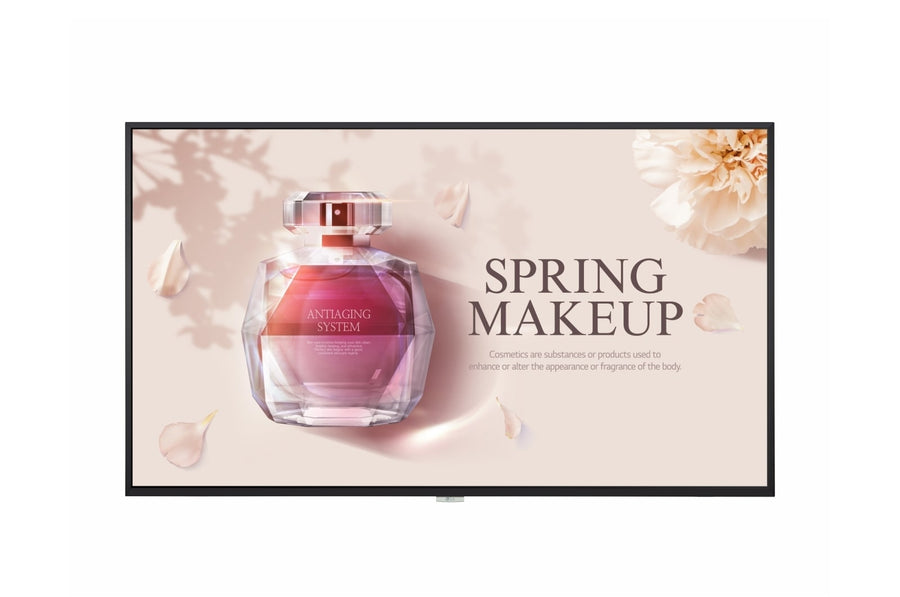

LG UH7F 49-inch High-Haze 4K UHD Digital Signage Display – 49UH7F-H
The LG 49UH7F-H is a 49-inch 4K UHD IPS digital signage display with a 28% haze surface treatment and an IP5x rating. It has 700-nit typical brightness and built-in webOS 4.1 for signage networks. This model is discontinued. Procure.ae supplies LG signage across the UAE and can confirm availability.
The 49UH7F-H uses an IPS panel with a native resolution of 3840 x 2160 and a typical brightness of 700 nits. Its typical contrast ratio is 1,000:1, and its dynamic contrast is rated at 500,000:1. The surface treatment is rated at 28% haze. The color depth is 10-bit, 1.07 billion colors, with BT.709 95% color gamut coverage. Viewing angles are 178 degrees horizontal and vertical, with an 8 ms grey-to-grey response time and 24/7 operation.
Use the 49UH7F-H in bright indoor signage areas where a high-haze surface is specified, such as lobbies and corporate reception areas. It includes embedded CMS features such as Local Contents Scheduling and Group Manager, plus built-in Wi-Fi and a temperature sensor. The software listed includes SuperSign CMS, SuperSign Control and Control+, SuperSign WB and SuperSign Media Editor. Compared with the 49UH7F, this model adds the 28% haze surface and lists a 1,000:1 contrast ratio instead of 1,100:1.
Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- Haze surface treatment
- 4K UHD IPS panel
- webOS 4.1 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Haze surface treatment
Surface treatment rated at 28% haze, as listed by the manufacturer.
02
4K UHD IPS panel
3840 x 2160 native resolution with 700 nits typical brightness.
03
webOS 4.1 platform
Built-in webOS 4.1 with 8 GB internal memory.
04
Embedded CMS
Local Contents Scheduling, Group Manager, Fail over and USB Plug & Play support.
05
Built-in sensors
Temperature, auto brightness and acceleration sensors are included.
06
Software suite
SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Media Editor.
07
Network control
RS-232C in and out, RJ45 LAN in, IR input and LG ConnectedCare.
08
IP5x rating
Manufacturer lists an IP5x rating for the display.
Specifications
34 specificationsGeneral
Key Features28% haze surface, 4K UHD IPS panel, 700 nits, webOS 4.1, 8 GB storage, Local Contents Scheduling, SuperSign CMS, IP5x rating
Model49UH7F-H
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, HDMI cable, regulation book, phone-to-RS-232C adapter
Display
Bezel Size9.9 mm (top, left, right), 14.4 mm (bottom)
Brightness700 nits
Color Depth10-bit, 1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,000:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size49 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 4.1
Storage8 GB
Audio
Speaker OutputBuilt-in speaker
Connectivity
EthernetRJ45 LAN In
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS type compatible
PortsRS-232C In/Out (4-pin phone jack), RJ45 LAN In, IR In
Serial PortRS-232C In/Out (4-pin phone jack)
Wi-FiBuilt-in Wi-Fi
Physical
ColorBlack
Dimensions1098.6 x 644.5 x 39.9 mm
Duty Cycle24/7
Finish28% haze surface treatment
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight15.4 kg (head)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP / Energy Star 8.0
IP RatingIP5x
Downloads
Manufacturer documents for the LG UH7F 49-inch High-Haze 4K UHD Digital Signage Display – 49UH7F-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 49UH7F-H?
The LG 49UH7F-H is a 49-inch 4K UHD IPS digital signage display with a 28% haze surface treatment. It has a 700-nit typical brightness, a 3840 x 2160 resolution and webOS 4.1 built in. The manufacturer lists the model as discontinued.
What does the 28% haze surface do?
The 49UH7F-H has a surface treatment rated at 28% haze, as listed in the manufacturer specifications. Haze describes how much light the surface diffuses. The specifications do not state a glare-reduction figure, so test the display in its intended room.
Does the 49UH7F-H support 4K content?
Yes. The 49UH7F-H has a native resolution of 3840 x 2160 and a 10-bit color depth. The manufacturer specifications do not list the video inputs for this model, so confirm the source connection with the installer before installation.
What mounting does the 49UH7F-H use?
The 49UH7F-H uses a VESA standard mount interface of 300 x 300 mm. The head weighs 15.4 kg, and the monitor measures 1098.6 x 644.5 x 39.9 mm. Check the bracket rating and VESA pattern before installation.
Can the 49UH7F-H be managed over a network?
Yes. The 49UH7F-H has an RJ45 LAN input, RS-232C in and out, and an IR input. The manufacturer lists Fail over, Built-in Wi-Fi and LG ConnectedCare for network and remote management.
