LGDigital SignageSKU 49UH7F

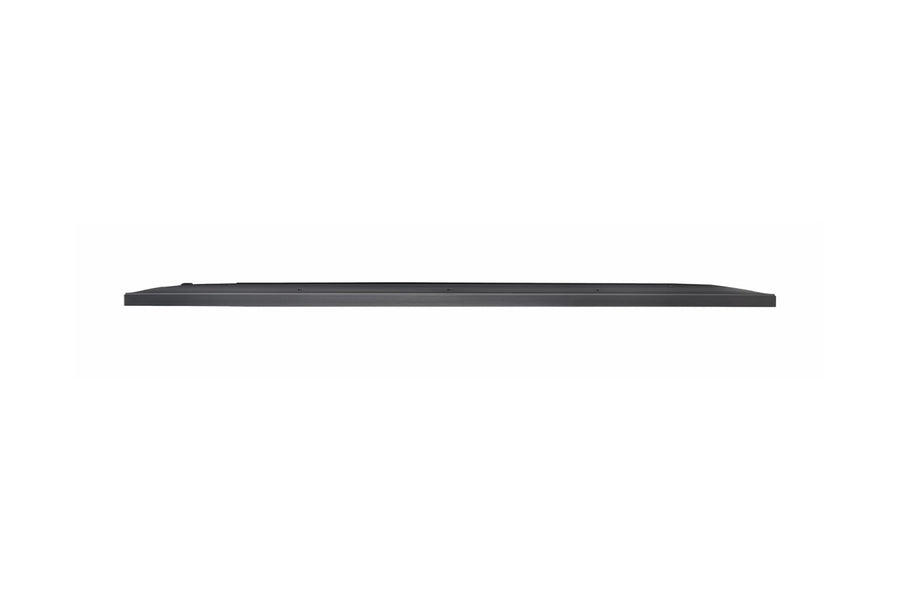

LG UH7F 49-inch 4K UHD Digital Signage Display – 49UH7F
The LG 49UH7F is a 49-inch 4K UHD IPS digital signage display with a 700-nit typical brightness rating and built-in webOS 4.1. It is rated for 24/7 signage operation with local content scheduling. This model is discontinued. Procure.ae supplies LG signage across the UAE and can confirm availability.
The 49UH7F has a native resolution of 3840 x 2160 on an IPS panel, with 700 nits typical brightness and a 1,100:1 typical contrast ratio. Its dynamic contrast is rated at 500,000:1, and viewing angles are 178 degrees horizontal and vertical. The color depth is 1.07 billion colors with BT.709 95% color gamut. The response time is 8 ms grey to grey, and the refresh rate is 60 Hz. The manufacturer rates the unit for 24/7 operation in portrait or landscape orientation.
Use the 49UH7F in indoor signage networks that need local scheduling, group management and remote management. The display includes webOS 4.1, 8 GB internal memory and built-in Wi-Fi and Bluetooth, with Crestron, Cisco and SNMP support listed. Its OPS type compatibility is listed as piggyback. The manufacturer does not list a haze surface treatment for this model, unlike the 49UH7F-H.
Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- 4K UHD IPS panel
- webOS 4.1 platform
- Embedded content management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 native resolution with 700 nits typical brightness.
02
webOS 4.1 platform
Built-in webOS 4.1 with 8 GB internal memory.
03
Embedded content management
Local Contents Scheduling, Group Manager and Fail over support.
04
Multi-screen layouts
PIP, four-split PBP and tile mode settings.
05
Built-in sensors
Temperature, auto brightness and acceleration sensors.
06
Network control
RS-232C in and out, RJ45 LAN in, IR input and SNMP support.
07
Connection ports
HDMI In × 3, DisplayPort In and Out, DVI-D In, and audio in and out.
08
Software support
SuperSign CMS, SuperSign Control+ and SuperSign WB listed for content management.
Specifications
41 specificationsGeneral
Key Features4K UHD IPS panel, webOS 4.1, 8 GB storage, Local Contents Scheduling, tile mode, PIP and PBP, SuperSign CMS, IP5X rating
Model49UH7F
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick start guide, regulation book, HDMI cable, phone-to-RS-232C adapter
Display
Aspect Ratio16:9
BacklightEdge-lit
Bezel Size9.9 mm (top, left, right), 14.4 mm (bottom)
Brightness700 nits
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size49 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 4.1
Storage8 GB eMMC
Audio
DisplayPort1 In (HDCP 2.2/1.3), 1 Out
Connectivity
HDMI Inputs3
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS type compatible (piggyback)
PortsHDMI In × 3, DisplayPort In/Out, DVI-D In, RJ45 LAN In, RS-232C In/Out, IR In, USB 2.0 × 1, Audio In/Out
USB PortsUSB 2.0 Type A × 1
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption75 W (smart energy saving, 70%)
Standby Power0.5 W
Physical
ColorBlack
Dimensions1098.6 x 644.5 x 39.9 mm (with logo)
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions1197.0 x 775.0 x 162.0 mm
Shipping Weight18.8 kg
TiltUp to 30° face-down
VESA Mount300 x 300 mm
Weight15.4 kg (head)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP / Energy Star
IP RatingIP5X
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 49UH7F?
The LG 49UH7F is a 49-inch 4K UHD IPS digital signage display in the UH7F series. It has a 700-nit typical brightness rating, a 3840 x 2160 resolution and webOS 4.1 built in. The manufacturer lists the model as discontinued.
Does the 49UH7F support 4K content?
Yes. The 49UH7F has a native resolution of 3840 x 2160. The manufacturer lists HDMI In × 3, DisplayPort In (HDCP 2.2/1.3) and DVI-D In (HDCP 1.4) as inputs. Confirm the source output and cable with the installer.
Can the 49UH7F be used in a video wall?
Yes. The 49UH7F includes a tile mode setting and Local Network Sync. The manufacturer specifications do not state daisy chain support for this model, so plan a separate source feed for each display.
What mounting does the 49UH7F use?
The 49UH7F uses a VESA standard mount interface of 300 x 300 mm. The head weighs 15.4 kg, and the carton measures 1197.0 x 775.0 x 162.0 mm. Check the bracket rating and VESA pattern before installation.
Can the 49UH7F be controlled over a network?
Yes. The 49UH7F has an RJ45 LAN input, RS-232C in and out, and an IR input. The manufacturer lists SNMP, Wake on LAN, Crestron Connected and Cisco certification for network management.
