LGDigital SignageSKU 86UH5Q-GQ

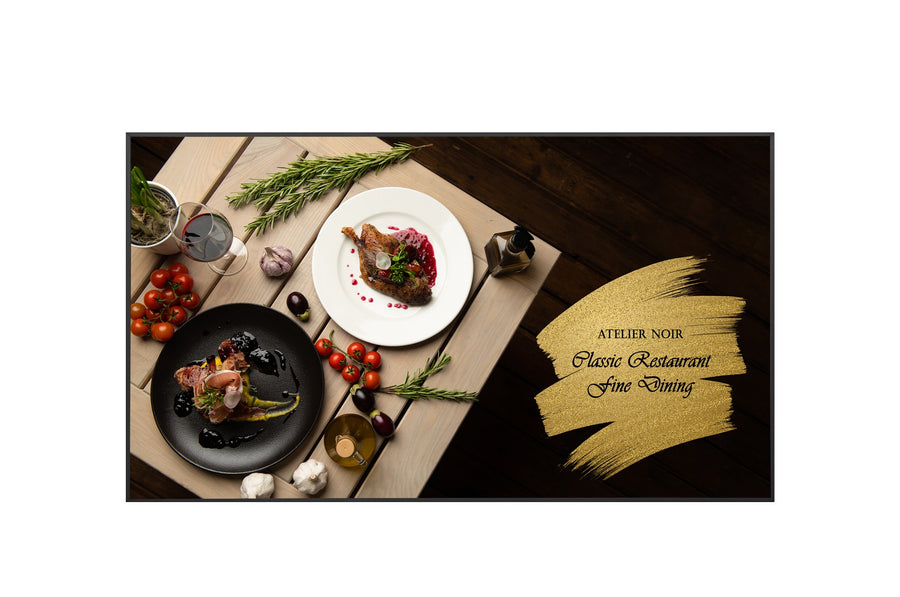

LG UH5Q Series 86-inch 4K UHD Digital Signage Display – 86UH5Q-GQ
The LG 86UH5Q-GQ is an 86-inch 4K UHD digital signage display with webOS 8.0, 500 nits typical brightness and HDMI and DisplayPort inputs. It suits lobbies, retail floors and meeting spaces that need centrally managed screens in portrait or landscape. Procure.ae, an authorised LG reseller, supplies the 86UH5Q-GQ across the UAE.
The 86UH5Q-GQ offers 3840 x 2160 resolution on an edge-lit ADS panel with a 1,200:1 typical contrast ratio and an 8 ms (G to G, typical) response time. The BT.709 95% color gamut is rated at DCI-P3 80%, with 1.07 billion colors through 8-bit plus FRC. Three HDMI inputs and one DisplayPort input accept 4K at 60 Hz, and the webOS 8.0 platform runs from 16 GB of eMMC storage. The display is rated for 24/7 operation with an IP5X rating.
The 86UH5Q-GQ fits lobbies, retail floors, showrooms and video walls where content is managed centrally. Tile Mode supports arrays up to 15 x 15, and IR daisy chaining runs through the RS232C in and out ports, since the display has no IR output of its own. SuperSign CMS and LG ConnectedCare are listed for content management and remote monitoring. The 500 nits typical brightness distinguishes it from the 86UH5Q-E, which is rated at 700 nits.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- webOS 8.0 platform
- Native 4K UHD resolution
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
Local contents scheduling, group manager and screen share.
02
Native 4K UHD resolution
3840 x 2160 at 60 Hz on an 86-inch ADS panel.
03
500 nits brightness
500 nits typical with a 1,200:1 contrast ratio.
04
HDMI and DisplayPort inputs
Three HDMI and one DisplayPort input, each up to 4K at 60 Hz.
05
Tile mode
Tile Mode Setting supports arrays up to 15 x 15.
06
Multi-zone display
PIP, PBP (4-way) and Video Tag (4), with one external input.
07
Dust protection rating
IP5X rating listed by the manufacturer.
08
24/7 operation
Rated for 24/7 operation in portrait or landscape orientation.
Specifications
32 specificationsGeneral
Key FeatureswebOS 8.0, 24/7 operation, IP5X rating, Tile Mode up to 15 x 15, PIP and PBP (4-way), Video Tag (4), SuperSign CMS, Connected Care
Model86UH5Q-GQ
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holders (6) and 7-pin cable holder
Display
Aspect Ratio16:9
BacklightEdge
Bezel Size13.4 mm (even)
Brightness500 nits
Color Depth1.07 Billion colors (8-bit + FRC)
Color GamutBT.709 95% (DCI-P3 80%)
Contrast Ratio1,200:1 (typical)
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G, typical)
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 8.0
Storage16 GB (eMMC)
Audio
Speaker Output10 W x 2 (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3 (4K 60 Hz), DisplayPort In × 1 (4K 60 Hz), RS232C In and Out, RJ45 (LAN) In × 1, IR In × 1, USB 2.0 Type A × 2, Audio Out
Power
Power Consumption120 W (Smart Energy Saving, 70%)
Physical
Dimensions1928.8 x 1099.8 x 29.7 mm (without IR and handle)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight53.0 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, Energy Star, ePEAT (US)
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH5Q Series 86-inch 4K UHD Digital Signage Display – 86UH5Q-GQ — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 86UH5Q-GQ?
The LG 86UH5Q-GQ is an 86-inch 4K UHD digital signage display with an edge-lit ADS panel, 500 nits typical brightness and webOS 8.0. It is built for 24/7 operation in commercial spaces and works in portrait or landscape orientation.
Does the 86UH5Q-GQ support 4K at 60 Hz over HDMI and DisplayPort?
Yes. The manufacturer lists three HDMI inputs and one DisplayPort input, each at 3840 x 2160 and 60 Hz, with HDCP 2.2 and 1.4 support. Two USB 2.0 ports and an audio output are also fitted.
Can the 86UH5Q-GQ be used in a video wall?
Yes. Tile Mode Setting supports arrays up to 15 x 15. Video Tag and PBP functions work with one external input only, so plan the source routing for each display before installation.
What VESA mount does the 86UH5Q-GQ use?
The 86UH5Q-GQ uses a 600 x 400 mm VESA standard mount interface. Its monitor dimensions are 1928.8 x 1099.8 x 29.7 mm without IR and handle, and the head weighs 53.0 kg, so check the wall bracket rating before installation.
Can the 86UH5Q-GQ be managed remotely?
Yes. It has an RJ45 LAN port, RS232C in and out, SNMP, Wake on LAN, HDMI-CEC and Connected Care support. It works with SuperSign CMS for content management and remote monitoring across multiple displays.
