LGDigital SignageSKU 110UH5Q-H

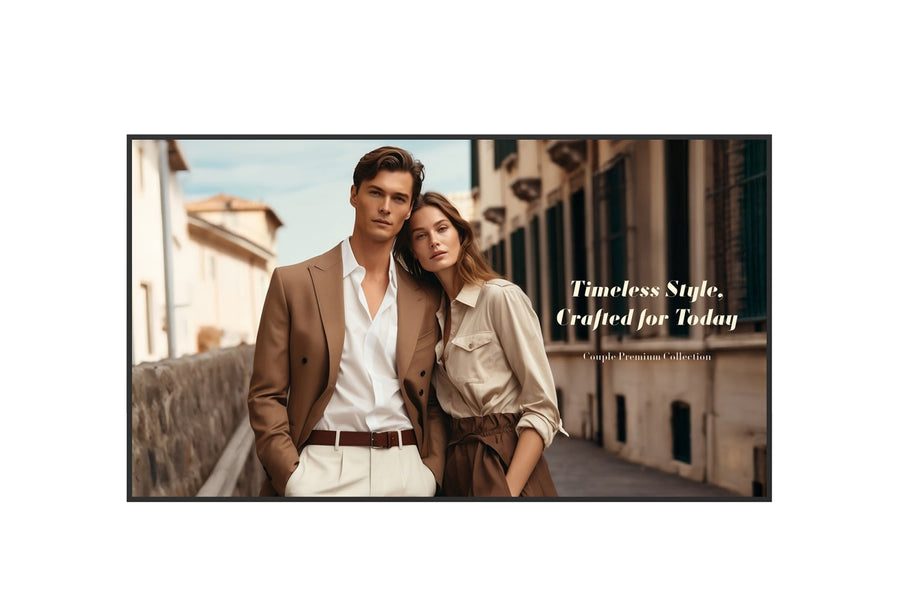

LG UH5Q Series 110-inch UHD Digital Signage Display – 110UH5Q-H
The LG 110UH5Q-H is a 110-inch 4K UHD digital signage display from the UH5Q series, suited to large-format screens rated for 24/7 operation. It offers 3840 x 2160 resolution at 120Hz, 500 nit typical brightness and webOS 6.1. Procure.ae, an authorised reseller, supplies the LG 110UH5Q-H across the UAE.
The 110UH5Q-H pairs a 110-inch 3840 x 2160 UHD panel with a 120Hz refresh rate, 500 nit typical brightness and a 1,200:1 typical contrast ratio. Its colour gamut is rated at 95% of BT709, and it supports 1.07 billion colours with 178 x 178 degree viewing angles. Built-in Wi-Fi and Bluetooth, 8GB of eMMC storage, webOS 6.1 and two 10W speakers are included.
The display suits large lobbies, retail spaces, corporate venues and public information displays. It supports portrait or landscape use, with a rated operating range of 0 °C to 40 °C in landscape and 0 °C to 35 °C in portrait. PIP, 4-screen PBP, video tag and tile mode settings support multi-screen layouts, and the unit is listed with Cisco Certification and Crestron Connected. It mounts on an 800 x 600mm VESA interface with an even 18mm bezel.
Screen Size
110 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage
- 110-inch UHD Panel
- 120Hz Refresh Rate
- BT709 95% Colour Gamut
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
110-inch UHD Panel
3840 x 2160 native resolution across a 110-inch screen for large-format viewing.
02
120Hz Refresh Rate
120Hz refresh rate with 8ms response time (G to G) for smooth motion.
03
BT709 95% Colour Gamut
Rated at 95% of the BT709 colour gamut with 1.07 billion colours.
04
webOS 6.1 Platform
Built-in webOS 6.1 with local content scheduling, group manager and play via URL.
05
Multi-Screen Layouts
PIP, 4-screen PBP, four video tags and tile mode for multi-screen setups.
06
Cisco and Crestron Listings
Listed with Cisco Certification and Crestron Connected for networked control.
07
Remote Management
SuperSign CMS, Control Manager, SNMP and Wake on LAN for remote control and monitoring.
08
Built-in Speakers
Two 10W speakers provide audio without an external sound system.
Specifications
42 specificationsGeneral
CompatibilityCisco certified, Crestron Connected
Key FeaturesSmart Energy Saving, auto brightness sensor, gyro sensor, PIP and 4-split PBP, tile mode, fail-over, Wake on LAN, cloud content management
Model110UH5Q-H
TypeDigital Signage
What's in the BoxRemote controller (2 batteries), power cord, regulation book, phone-to-D-Sub9 adapter
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size18 mm (even)
Brightness500 nits (typical)
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationLandscape, portrait
Panel TechnologyADS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size110 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemwebOS 6.1
Storage8 GB (eMMC)
Audio
Audio OutAudio out × 1
Speaker Output10 W × 2 (built-in)
Connectivity
BluetoothBuilt-in
EthernetRJ45 in × 1
HDMI InputsHDMI In × 3
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS232C in × 1, out × 1
USB PortsUSB 2.0 × 2
Wi-FiBuilt-in
Power
Power Consumption259 W (Smart Energy Saving, 70%)
Standby Power0.5 W
Physical
ColorBlack
Dimensions2481.7 x 1410.8 x 68.6 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (portrait: 0 to 35 °C)
Shipping Dimensions2660 x 1600 x 280 mm
Shipping Weight103.05 kg
VESA Mount800 x 600 mm
Weight64.45 kg
Compliance
CertificationsIEC 62368-1:2018, UL 62368-1:2019, FCC Class B, CE, RCM
Downloads
Manufacturer documents for the LG UH5Q Series 110-inch UHD Digital Signage Display – 110UH5Q-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and refresh rate does the LG 110UH5Q-H have?
It has a 3840 x 2160 (UHD) native resolution and a 120Hz refresh rate. Typical brightness is 500 nit with a 1,200:1 typical contrast ratio, and the response time is 8ms (G to G).
Can the 110UH5Q-H be wall-mounted?
Yes. It uses an 800 x 600mm VESA standard mount interface. The head weighs 64.45kg and the packed weight is 103.05kg, so the mount and wall structure must be rated for that load.
Is the 110UH5Q-H suitable for a standard meeting room?
It is a 110-inch display, so it suits large spaces such as lobbies, halls and retail floors rather than standard meeting rooms. Its monitor dimensions are 2481.7 x 1410.8 x 68.6mm, so check the wall or floor space before ordering.
Does the 110UH5Q-H support Cisco or Crestron systems?
Yes. The display is listed with Cisco Certification and as Crestron Connected. It also has RS232C in and out, an RJ45 LAN input, SNMP and Control Manager for system integration.
Can the 110UH5Q-H run in portrait orientation?
Yes. Portrait and landscape orientation are both supported, with screen rotation and external input rotation settings. In portrait mode the rated operating temperature is 0 °C to 35 °C, compared with 0 °C to 40 °C in landscape.
