LG UH5Q 65-inch UHD Digital Signage Display – 65UH5Q-E

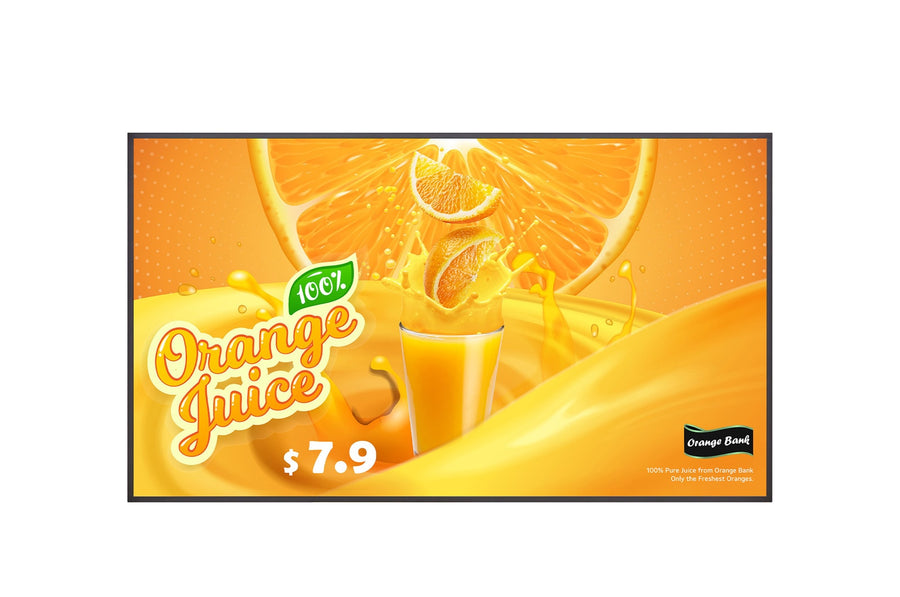

The LG 65UH5Q-E is a 65-inch UHD digital signage display with an ADS panel, 500 nits typical brightness and an 11.4 mm even bezel. It is rated for 24/7 operation and runs webOS 8.0 with PIP, PBP for up to 4 screens and tile mode for video walls. Procure.ae supplies the LG 65UH5Q-E across the UAE.
The ADS panel delivers 3840 x 2160 UHD resolution at 60 Hz, 500 nits typical brightness and a 1,200:1 typical contrast ratio. Its 10-bit colour depth and BT709 95% colour gamut suit clear video and graphics. The display supports portrait and landscape orientation, a 178 x 178 degree viewing angle and an 8 ms response time. It includes 16 GB of internal storage, a pixel sensor and a gyro sensor, plus two built-in 10 W speakers.
The 65UH5Q-E runs webOS 8.0 with built-in Wi-Fi and Bluetooth. Local content scheduling, group management, PIP and PBP for up to 4 screens, and Tile Mode for video walls up to 15 x 15 are built in. SuperSign CMS, SuperSign Cloud and Crestron connectivity allow remote management across a network. Mount it on the 300 x 300 mm VESA interface. The manufacturer lists a 0 to 40 °C operating range for 24/7 installations.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
- UHD ADS panel
- Brightness and contrast
- webOS 8.0 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
UHD ADS panel
3840 x 2160 resolution at 60 Hz with 10-bit colour depth.
02
Brightness and contrast
500 nits typical brightness with a 1,200:1 typical contrast ratio.
03
webOS 8.0 platform
Built-in Wi-Fi and Bluetooth with Screen Share support.
04
Multi-screen modes
PIP and PBP for up to 4 screens in one display.
05
Video wall ready
Tile Mode up to 15 x 15 with an 11.4 mm even bezel.
06
Cloud management
SuperSign Cloud and Connected Care support.
07
Remote control
Crestron connectivity, SNMP, RS-232C control and Wake on LAN.
08
Built-in audio
Two 10 W speakers for in-room sound.
Specifications
32 specificationsGeneral
Key FeatureswebOS 8.0, built-in Wi-Fi and Bluetooth, PIP and PBP up to 4 screens, tile mode up to 15 x 15, Crestron connectivity, SuperSign Cloud, Connected Care, Smart Energy Saving
Model65UH5Q-E
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick setup guide, regulation book, phone to RS-232C gender adapter, cable holder, AC cord holder
Display
Aspect Ratio16:9
Bezel Size11.4 mm even
Brightness500 nits (typical)
Color Depth10-bit, 1.07 billion colors
Color GamutBT709 95%
Contrast Ratio1,200:1 (typical)
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size65 inch
Viewing Angle178 x 178 degrees
Performance
Operating SystemwebOS 8.0
Storage16 GB
Audio
Speaker Output2 × 10 W built-in
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, RS-232C In/Out, RJ-45 LAN In × 1, IR In × 1, USB 2.0 × 2
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption0.5 W (power off)
Physical
ColorBlack bezel
Dimensions1459.0 x 835.0 x 29.7 mm (W x H x D)
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight21.1 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ErP, Energy Star, ePEAT (US)
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH5Q 65-inch UHD Digital Signage Display – 65UH5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the LG 65UH5Q-E?
The LG 65UH5Q-E has a 65-inch ADS screen with a native resolution of 3840 x 2160 (4K UHD) at 60 Hz. It uses a 16:9 aspect ratio, supports portrait and landscape orientation, and lists 500 nits typical brightness with a 1,200:1 typical contrast ratio.
Can the 65UH5Q-E run 24/7 in a busy lobby or retail space?
Yes. The manufacturer rates the LG 65UH5Q-E for 24/7 operation, with an operating temperature of 0 to 40 °C and humidity of 10% to 80%. It carries an IP5X dust-protection rating and includes Smart Energy Saving mode.
How is the LG 65UH5Q-E mounted?
The display uses a 300 x 300 mm VESA interface, so a compatible wall or stand bracket fits it. The monitor measures 1459.0 x 835.0 x 29.7 mm and weighs 21.1 kg without packaging. Confirm the bracket and wall details with Procure.ae before installation.
Does the 65UH5Q-E work with SuperSign and network management tools?
Yes. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Connected Care, along with Crestron connectivity, SNMP, RS-232C control and RJ-45 LAN. The options in use depend on the control system and cloud services set up on site.
Can the 65UH5Q-E be used in a video wall?
Yes. Tile Mode supports video walls up to 15 x 15 displays, and Gapless Playback is listed for continuous content. The bezel is 11.4 mm on all sides, which determines the overall wall size. Procure.ae can advise on the full configuration for your project.
