LGDigital SignageSKU 55EW5G-V

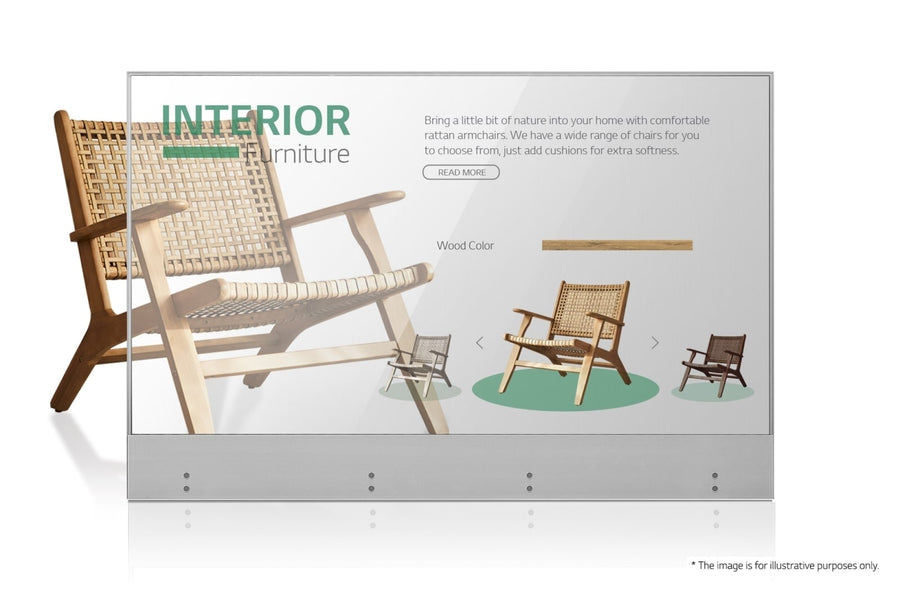

LG Transparent OLED EW5 55-inch Signage Display – 55EW5G-V
The LG 55EW5G-V is a 55-inch Full HD transparent OLED signage display with 150,000:1 contrast and 1 ms grey-to-grey response. It is rated for 18 hours a day, 7 days a week, for moving content. The manufacturer lists it as discontinued, and Procure.ae supplies it in the UAE while confirming current availability or a successor.
The 55EW5G-V uses a Full HD (1920 x 1080) OLED panel rated at 150 nits at 100% APL and 400 nits at 25% APL. Its 150,000:1 contrast ratio and 1 ms grey-to-grey response, with 8 ms MPRT, are listed for moving content. The panel offers 10-bit color depth, 1.07 billion colors and BT.709 120% color gamut, with a 178 x 178 degree viewing angle. It carries 3.0 mm tempered, shatter-proof protection glass with an anti-reflective film.
The 55EW5G-V suits storefront windows, lobbies and showroom features where a see-through display is the point of the installation. The head weighs 11.6 kg and the signage box 3.4 kg. The model has no speaker and no standard VESA mount interface. It is a separate listing from the 55EW5G-A and 55EW5F-A in the same series, so confirm the model code (55EW5G-V.AMAZ or 55EW5G-V.AMIZ) before ordering.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
150 nits (APL 100%) / 400 nits (APL...
Type
Transparent OLED Signage Display
- Transparent OLED panel
- 1 ms response
- 10-bit color
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Transparent OLED panel
Full HD 1920 x 1080 transparent OLED with 150,000:1 contrast ratio.
02
1 ms response
1 ms grey-to-grey response with 8 ms MPRT.
03
10-bit color
10-bit color depth, 1.07 billion colors and BT.709 120% color gamut.
04
Tempered protection glass
3.0 mm tempered, chemically strengthened, shatter-proof glass with anti-reflective film.
05
Operating schedule
Rated for 18 hours a day, 7 days a week, for moving content only.
06
Built-in power
Built-in power at 100–240 V AC, typically 250 W and 280 W maximum.
07
Viewing angle
178 x 178 degree viewing angle.
08
Operating range
Rated for 0 to 40 °C and 10% to 80% RH.
Specifications
25 specificationsGeneral
Key FeaturesTransparent OLED panel, Full HD 1920 x 1080, 150,000:1 contrast, BT.709 120% gamut, 18/7 moving-content operation, tempered protection glass
Model55EW5G-V
TypeTransparent OLED Signage Display
What's in the BoxRemote controller, power cord, quick start guide, IR receiver, MCX harness cables, DP cable (2 m), LAN cable (1.5 m), RS232 cable (1.5 m), LC cable (3 m)
Display
Bezel Size7.9 mm (T/R/L), 121.7 mm (B)
Brightness150 nits (APL 100%) / 400 nits (APL 25%), without glass
Color Depth10-bit (1.07 billion colors)
Color GamutBT.709 120%
Contrast Ratio150,000:1
Panel TechnologyOLED
Resolution1920 x 1080 (Full HD)
Response Time1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Viewing Angle178 x 178 degrees
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
Power
Power Consumption250 W (typical), 280 W (maximum)
Power SourceBuilt-in power
Physical
Dimensions1225.5 x 810.1 x 4.9 mm (head)
Duty Cycle18/7 (moving content only)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Surface Protection3.0 mm tempered glass, anti-reflective film, shatter-proof
VESA MountNot supported
Weight11.6 kg (head), 3.4 kg (signage box)
Compliance
CertificationsIEC 60950-1, EN 60950-1, UL 60950-1, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Transparent OLED EW5 55-inch Signage Display – 55EW5G-V — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the LG 55EW5G-V have?
It has Full HD resolution of 1920 x 1080. Brightness is rated at 150 nits at 100% APL and 400 nits at 25% APL, without glass, on a 55-inch OLED panel.
Does the LG 55EW5G-V support VESA wall mounting?
No. The manufacturer's listing states that this model has no standard VESA mount interface, so confirm the mounting method with Procure.ae before installation. Procure.ae can advise on a suitable mounting arrangement before you order.
How many hours a day can the LG 55EW5G-V run?
The manufacturer rates operation at 18 hours a day, 7 days a week, for moving content only. Operating temperature is 0 to 40 °C and humidity 10% to 80% RH.
What power does the LG 55EW5G-V need?
It uses built-in power at 100–240 V AC, 50/60 Hz, with typical consumption of 250 W and a maximum of 280 W. The model has no speaker.
What is included with the LG 55EW5G-V?
The package includes a remote controller with 2 batteries, power cord, quick start guide, IR receiver, MCX harness cables, a 2 m DP cable, a 1.5 m LAN cable, a 1.5 m RS232 cable and a 3 m LC cable.
Can I buy the 55EW5G-V in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
