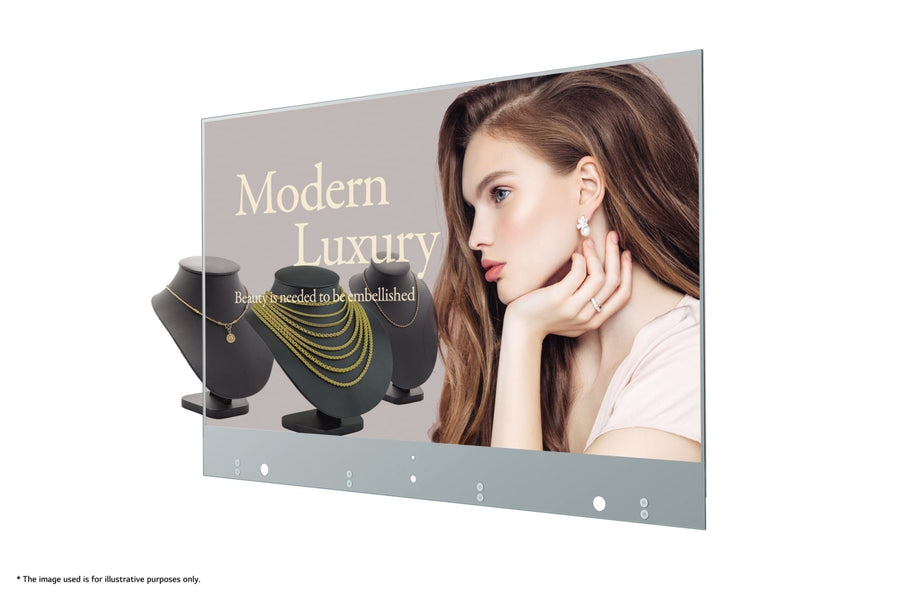

LG Transparent OLED EW5 55-inch Signage Display – 55EW5F-A
The LG 55EW5F-A is a 55-inch Full HD transparent OLED signage display with 38% transparency. It is rated at 400 nits at 25% APL and 150 nits at 100% APL, and it is managed with SuperSign CMS and SuperSign Control. Procure.ae supplies the LG 55EW5F-A in the UAE.
The 55EW5F-A uses a Full HD (1920 x 1080) OLED panel with 38% typical transparency. Typical brightness is rated at 400 nits at 25% APL and 150 nits at 100% APL. External control interfaces include RS232C in and out, RJ45 LAN in and out and an IR input, for remote control and monitoring. The software set is SuperSign CMS for content and SuperSign Control and Control+ for device management.
The 55EW5F-A suits storefront windows, lobbies and showroom features where digital content should sit over a see-through panel. Its head measures 1225.53 x 810.1 x 6.6 mm and weighs 13.9 kg, with a separate 3.4 kg signage box. Other 55-inch models share the EW5 series, so confirm the exact model code (55EW5F-A.AMA or 55EW5F-A.AMI) before ordering.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits (APL 25%) / 150 nits (APL ...
Type
Transparent OLED Signage Display
- Transparent OLED panel
- Full HD resolution
- Brightness rating
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Transparent OLED panel
Full HD OLED panel with 38% typical transparency.
02
Full HD resolution
1920 x 1080 native resolution on a 55-inch screen.
03
Brightness rating
400 nits at 25% APL and 150 nits at 100% APL.
04
SuperSign content management
SuperSign CMS for content, with SuperSign Control and Control+ for device control.
05
Control interfaces
RS232C in and out, RJ45 LAN in and out, and an IR input.
06
Built-in power
Built-in power supply at 100–240 V AC, 50/60 Hz.
07
Operating range
Rated for 0 to 40 °C and 10% to 80% humidity.
08
Head dimensions
Head measures 1225.53 x 810.1 x 6.6 mm and weighs 13.9 kg.
Specifications
17 specificationsGeneral
ControlsRS232C in/out, RJ45 (LAN) in/out, IR in
Key FeaturesTransparent OLED panel, 38% transparency, SuperSign CMS, SuperSign Control and Control+, RS232C and LAN control
Model55EW5F-A
TypeTransparent OLED Signage Display
What's in the BoxRemote controller, power cord, quick start guide, IR receiver, RS232 cable, DP cable, LAN cable, FFC cables, screws, rubber dampers
Display
Bezel Size7.9 mm (T/L/R), 121.7 mm (B)
Brightness400 nits (APL 25%) / 150 nits (APL 100%)
Panel TechnologyOLED
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
Power
Power SourceBuilt-in power
Physical
Dimensions1225.53 x 810.1 x 6.6 mm (head)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight13.9 kg (head), 3.4 kg (signage box)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Transparent OLED EW5 55-inch Signage Display – 55EW5F-A — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the LG 55EW5F-A have?
It has a native resolution of 1920 x 1080 (Full HD). Brightness is rated at 400 nits at 25% APL and 150 nits at 100% APL on a 55-inch OLED panel.
Does the LG 55EW5F-A support VESA wall mounting?
The manufacturer's specifications do not list a VESA standard mount interface for this model. Confirm the mounting method with Procure.ae before installation, noting that the head weighs 13.9 kg.
Can the LG 55EW5F-A be controlled remotely?
Yes. It has RS232C in and out, RJ45 LAN in and out, and an IR input. SuperSign Control and Control+ are listed for device management.
What are the power and environmental requirements for the 55EW5F-A?
It uses a built-in power supply rated at 100–240 V AC, 50/60 Hz. The operating temperature is 0 to 40 °C and the operating humidity is 10% to 80%.
What is included in the LG 55EW5F-A package?
The package includes a remote controller, power cord, quick start guide, IR receiver, RS232 cable, DP cable, LAN cable, FFC cables, screws and rubber dampers.
Can I buy the 55EW5F-A in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
