LGDigital SignageSKU 30EW5TP-A

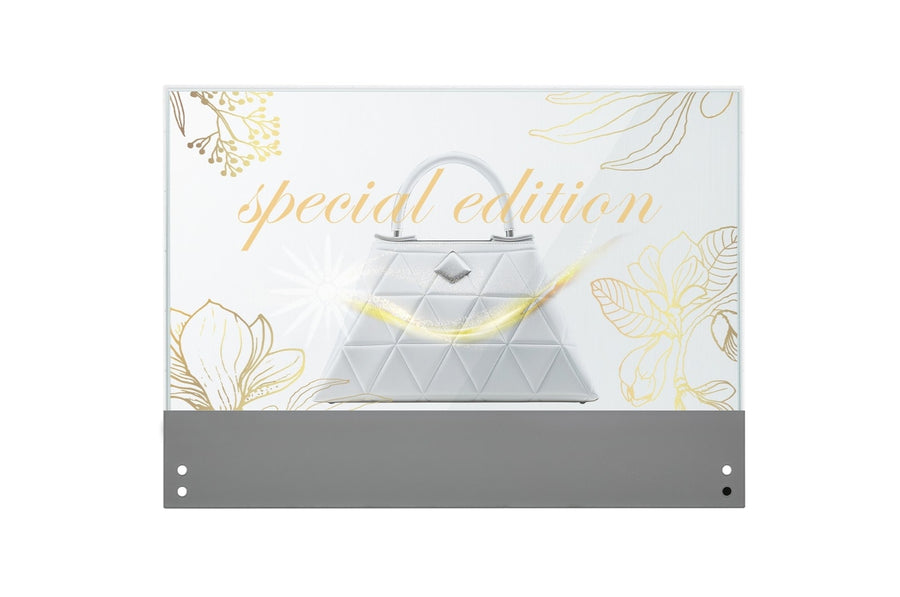

LG Transparent OLED EW5 30-inch Touch Signage Display – 30EW5TP-A
The LG 30EW5TP-A is a 30-inch transparent OLED touch signage display with 37% transparency and 10-point touch. It has 1366 x 768 resolution, 200,000:1 contrast and a 120 Hz refresh rate, and it runs webOS 23 for content playback. Procure.ae supplies the LG 30EW5TP-A in the UAE.
The 30EW5TP-A uses a 30-inch OLED panel with a native 1366 x 768 resolution and 37% transparency when set. Brightness is rated at 200 nits at 100% APL and 600 nits at 25% APL, without glass. The 120 Hz refresh rate, 0.1 ms grey-to-grey response and 200,000:1 contrast ratio are listed for the panel. The panel covers BT.709 110% color gamut with 10-bit color depth, and it has a 16:9 aspect ratio that can run in portrait or landscape.
The 30EW5TP-A suits shop windows, lobbies, showrooms and interactive displays where see-through content is the point of the installation. Touch is 10-point over USB 2.0, and the unit is controlled through IR, RS232C and RJ45 LAN, with SuperSign CMS, SuperSign Control+ and Cloud management listed. Operation is rated at 18 hours a day, 7 days a week, for moving content only. The 55-inch 55EW5F-A in the same EW5 series uses a Full HD panel instead.
Screen Size
30 inch
Resolution
1366 x 768 (HD)
Brightness
200 nits (APL 100%) / 600 nits (APL...
Type
Transparent OLED Signage Display
- Transparent OLED panel
- 10-point touch
- 200,000:1 contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Transparent OLED panel
Transparent OLED display with 37% transparency when set.
02
10-point touch
Multi-touch over USB 2.0 with up to 10 touch points.
03
200,000:1 contrast
Contrast ratio rated at 200,000:1.
04
120 Hz refresh
120 Hz refresh rate with 0.1 ms grey-to-grey response.
05
Portrait and landscape
Supports portrait and landscape orientation.
06
webOS 23 signage
Runs webOS 23 with SuperSign CMS and SuperSign Control+ management.
07
Control interfaces
RS232C, IR and RJ45 LAN for control and monitoring.
08
Rated operating range
Operates from 0 to 40 °C at 10% to 80% humidity.
Specifications
29 specificationsGeneral
Key FeaturesTransparent OLED, 37% transparency, 10-point touch, webOS 23, SuperSign CMS, RS232C and LAN control, 18/7 operation for moving content
Model30EW5TP-A
TypeTransparent OLED Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick start guide, IR receiver, MCX harness cables, HDMI cable (3 m), USB cables
Display
Aspect Ratio16:9
Bezel Size7.9 mm (T/R/L), 114.7 mm (B)
Brightness200 nits (APL 100%) / 600 nits (APL 25%), without glass
Color Depth10-bit (1.07 billion colors)
Color GamutBT.709 110%
Contrast Ratio200,000:1
OrientationPortrait and landscape
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1366 x 768 (HD)
Response Time0.1 ms (G to G), 8 ms (MPRT)
Screen Size30 inch
Touch Accuracy2 mm (typical)
Touch Points10-point multi-touch
Viewing Angle178 x 178 degrees
Performance
Operating SystemwebOS 23
Storage16 GB (eMMC)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In x 1, DP In x 1, DP Out x 1, LAN In/Out x 1 each, RS232C In/Out x 1 each, USB 2.0 x 2, Touch USB 2.0 Type B x 1, Audio Out x 1
Power
Standby Power0.5 W
Physical
Dimensions680.2 x 496.2 x 15.3 mm (head)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight4.2 kg (head), 2.4 kg (signage box)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Transparent OLED EW5 30-inch Touch Signage Display – 30EW5TP-A — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the resolution and brightness of the LG 30EW5TP-A?
It has a native resolution of 1366 x 768 (HD) on a 16:9 OLED panel. Brightness is rated at 200 nits at 100% APL and 600 nits at 25% APL, without glass.
Does the LG 30EW5TP-A have touch input?
Yes. It supports 10-point multi-touch over a USB 2.0 Type B touch interface, with touch accuracy rated at 2 mm typical. Windows 10 and Windows 11 are listed for touch operating support.
Can the LG 30EW5TP-A be controlled and managed remotely?
Yes. The manufacturer lists RS232C, IR and RJ45 LAN control, plus SuperSign CMS, SuperSign Control+, SuperSign Cloud and Mobile CMS for content management, along with SNMP and Wake on LAN.
Does the LG 30EW5TP-A support VESA wall mounting?
No. The manufacturer's specifications do not list a VESA standard mount interface for this model. The head measures 680.2 x 496.2 x 15.3 mm and weighs 4.2 kg, and the signage box measures 449.2 x 288.6 x 42.8 mm and weighs 2.4 kg.
How many hours a day can the LG 30EW5TP-A operate?
The manufacturer rates operation at 18 hours a day, 7 days a week, for moving content only. Operating temperature is 0 to 40 °C and humidity 10% to 80%.
