LGDigital SignageSKU 55SM5KE

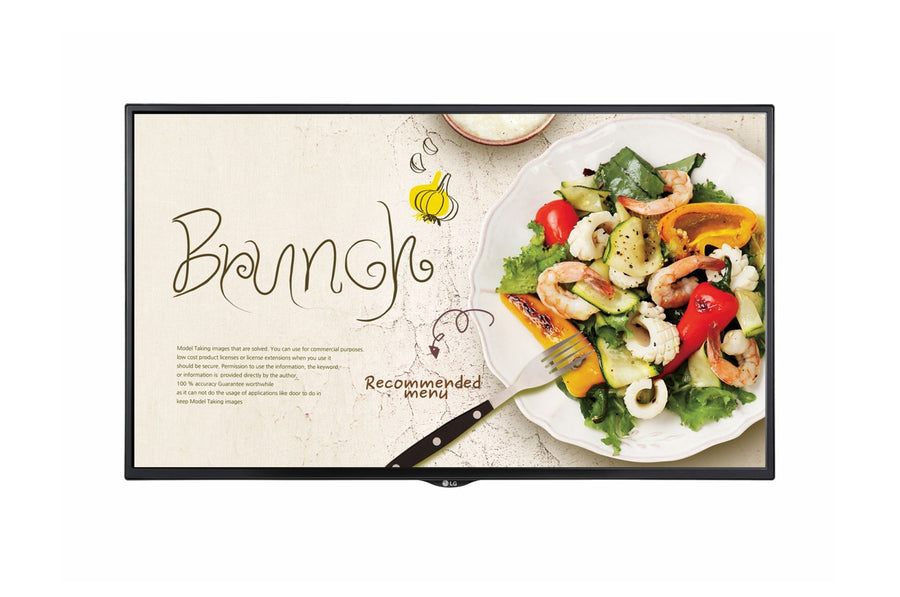

LG SM5K 55-inch Full HD Digital Signage Display – 55SM5KE
The LG 55SM5KE is a discontinued 55-inch Full HD standard signage display for corporate, retail and education use. It offers 450 nits typical brightness, 1920 x 1080 resolution and RS232C, RJ45 and IR control with OPS compatibility. Procure.ae can confirm current availability in the UAE or recommend a current successor model.
The 55SM5KE has a 55-inch screen at 1920 x 1080 (Full HD) resolution with 450 nits typical brightness. Its external control options are RS232C in and out, an RJ45 LAN input and an IR receiver input, for integration with a control system. The monitor measures 1238 x 714.9 x 54 mm and has a 300 x 300 mm VESA mount interface. The manufacturer lists 100 W typical and 115 W maximum power consumption.
The 55SM5KE fits corporate lobbies, retail signage, hospitality and education displays across the UAE and the wider GCC. It accepts external media players such as the LG MP500 and MP700 and OPS modules for plug-in computing. It works with SuperSign CMS and SuperSign Control+ or Control software for content management and monitoring. As the model is discontinued, check the current LG successor before specifying it for a project.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Digital Signage Display
- Full HD panel
- 450 nits brightness
- External control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD panel
1920 x 1080 resolution on a 55-inch screen.
02
450 nits brightness
450 nits typical brightness for indoor signage.
03
External control
RS232C in and out, RJ45 LAN input and IR receiver input.
04
Media player support
Attachable to external media players, with OPS compatibility.
05
SuperSign software
Works with SuperSign CMS and SuperSign Control+ or Control.
06
Narrow bezel
11.9 mm sides and 18 mm bottom.
07
Power draw
100 W typical and 115 W maximum consumption.
08
VESA mounting
300 x 300 mm mount interface.
Specifications
18 specificationsGeneral
Key FeaturesOPS-compatible, external media player support, SuperSign CMS, SuperSign Control+ and Control, RS232C, RJ45 and IR control
Model55SM5KE
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick guide, HDMI cable, regulation book, phone to RS232C gender, memory cover
Display
Bezel Size11.9 mm sides, 18 mm bottom
Brightness450 nits
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsRS232C In/Out, RJ45 (LAN) In, IR Receiver In
Power
Power Consumption100 W (typical), 115 W (max)
Power SourceBuilt-in power
Physical
Dimensions1238 x 714.9 x 54 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight17.5 kg
Compliance
CertificationsIEC 60950-1, EN 60950-1, UL 60950-1, FCC Class A, CE, KC, Energy Star 8.0
Downloads
Manufacturer documents for the LG SM5K 55-inch Full HD Digital Signage Display – 55SM5KE — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 55SM5KE still available?
The LG 55SM5KE is a discontinued model. Procure.ae can confirm current availability and recommend the current successor model for your project. Its specifications are listed here for reference when comparing with current models.
Does the 55SM5KE support external media players?
Yes. The manufacturer lists it as attachable to external media players, and as compatible with OPS modules for plug-in computing. The display also has RS232C in and out and an RJ45 LAN input for control.
What mounting does the 55SM5KE use?
It uses a 300 x 300 mm VESA standard mount interface. The head weighs 17.5 kg, so use a wall bracket or stand rated for at least that load. The monitor measures 1238 x 714.9 x 54 mm without the optional stand.
Can it be controlled by a control system?
Yes. It has RS232C in and out, an RJ45 LAN input and an IR receiver input, so it can be integrated with a control system. It also has an IR receiver input for remote control.
How much power does the 55SM5KE use?
The manufacturer lists 100 W typical and 115 W maximum, with 70 W in smart energy saving mode, on a 100–240 V AC, 50/60 Hz supply. The power supply is built in, so no external power brick is required.
