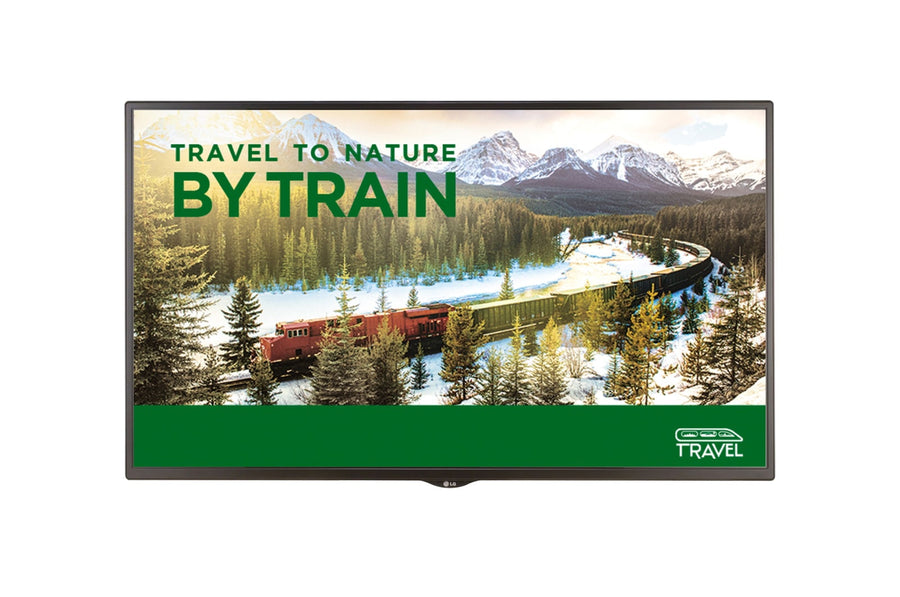

LG SH7E 55-inch Full HD High-Brightness Digital Signage Display – 55SH7E
The LG 55SH7E is a 55-inch Full HD high-brightness digital signage display rated at 700 nits, with a 300 x 300 mm VESA interface. It is OPS-type compatible and works with SuperSign CMS. This model is discontinued. Procure.ae supplies LG signage across the UAE and can confirm availability.
The 55SH7E has a 55-inch screen with a 1920 x 1080 Full HD resolution and a typical brightness of 700 cd/m2. External control options include RS-232C in and out, RJ45 LAN and IR input. The manufacturer lists an operating temperature of 0 to 40 °C and humidity of 10% to 80%, and the unit runs on 100–240 V AC. Typical power draw is 130 W, with a maximum of 150 W and smart energy saving rated at 91 W. The head weighs 17.5 kg and measures 1238 x 714.9 x 54 mm.
Use the 55SH7E for indoor signage where content is managed through SuperSign CMS and monitored with SuperSign Link. The specifications list Windows 7 and 10, and macOS 10.12 and 10.13, for the control software, with a 2.7 GHz dual-core or higher CPU and 4 GB of RAM. The display can also use external media players. Compared with the 49-inch 49SH7DD, this model is 55 inches and uses the same 300 x 300 mm VESA interface.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 cd/m²
Type
Digital Signage Display
- Full HD 700-nit screen
- Content management
- OPS compatibility
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD 700-nit screen
1920 x 1080 resolution with a 700 cd/m2 typical brightness rating.
02
Content management
SuperSign CMS for content and SuperSign Link for control and monitoring.
03
OPS compatibility
OPS-type compatible for a plug-in computing module.
04
External media players
Listed as attachable to external media players.
05
Network control
RS-232C in and out, RJ45 LAN in and IR input.
06
Operating range
Rated for 0 to 40 °C and 10% to 80% humidity.
07
Power rating
Typical 130 W, maximum 150 W, with smart energy saving at 91 W.
Specifications
22 specificationsGeneral
Key FeaturesFull HD 1920 x 1080, 700 cd/m² brightness, OPS-type compatible, external media players, SuperSign CMS, SuperSign Link, RS-232C and RJ45 control, 130 W typical power
Model55SH7E
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick start guide, HDMI cable, regulation book, phone-to-RS-232C adapter
Display
Brightness700 cd/m²
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Performance
Operating SystemWindows 7/10 (64-bit), macOS 10.12/10.13 (SuperSign Link)
Connectivity
EthernetRJ45 LAN In
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS-type compatible
PortsRS-232C In/Out, RJ45 LAN In, IR In
Serial PortRS-232C In/Out
Power
Power Consumption130 W typical, 150 W maximum (smart energy saving 91 W)
Physical
Dimensions1238 x 714.9 x 54 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions1330 x 807 x 170 mm
Shipping Weight21.7 kg
VESA Mount300 x 300 mm
Weight17.5 kg (head)
Compliance
CertificationsIEC/EN/UL 60950-1; EMC FCC Class A, CE, KC; Energy Star 8.0
Downloads
Manufacturer documents for the LG SH7E 55-inch Full HD High-Brightness Digital Signage Display – 55SH7E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 55SH7E?
The LG 55SH7E is a 55-inch Full HD high-brightness digital signage display in the SH7E series. It has a 700 cd/m2 brightness rating, a 1920 x 1080 resolution and a 300 x 300 mm VESA mount interface. The manufacturer lists the model as discontinued.
Is the 55SH7E compatible with media players?
Yes. The manufacturer lists the 55SH7E as OPS-type compatible and attachable to external media players. These options are listed in the manufacturer specifications. Confirm the chosen player model with the installer before installation.
How is the 55SH7E controlled?
The 55SH7E supports RS-232C in and out, RJ45 LAN in and IR input. The manufacturer lists SuperSign Link as its control and monitoring software, with Windows and macOS versions stated in the specifications.
What mounting does the 55SH7E use?
The 55SH7E uses a VESA standard mount interface of 300 x 300 mm. The head weighs 17.5 kg, and the packed weight is 21.7 kg. Check the bracket rating and VESA pattern before installation.
What power does the 55SH7E need?
The 55SH7E runs on 100–240 V AC, 50/60 Hz, with a typical power draw of 130 W and a maximum of 150 W. The manufacturer rates smart energy saving at 91 W. Confirm the circuit capacity with the installer before fitting the display.
