LGDigital SignageSKU 49SH7DD

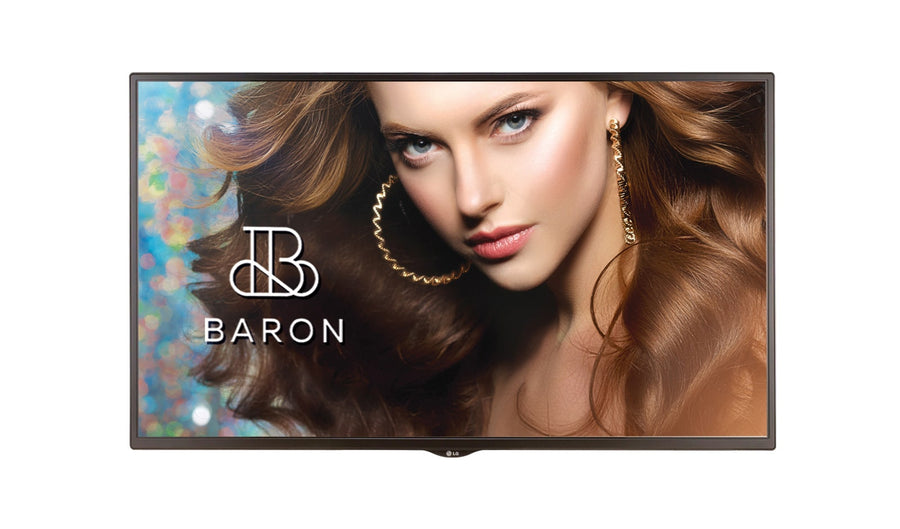

LG SH7D 49-inch Full HD High-Brightness Digital Signage Display – 49SH7DD
The LG 49SH7DD is a 49-inch Full HD digital signage display for indoor signage networks. It has a 700 cd/m2 brightness rating, a 300 x 300 mm VESA interface and RS-232C and RJ45 control. Procure.ae supplies the LG 49SH7DD across the UAE, with delivery and installation.
The 49SH7DD has a 49-inch screen with a 1920 x 1080 Full HD resolution and a brightness rating of 700 cd/m2. External control options include RS-232C in and out, RJ45 LAN and an IR receiver. The manufacturer lists an operating temperature of 0 to 40 °C and humidity of 10% to 80%, and the unit runs on 100–240 V AC. Smart energy saving is rated at 65 W. The head weighs 14.3 kg and measures 1102.2 x 638.5 x 54 mm.
Use the 49SH7DD for indoor signage where content is managed through the manufacturer software. The specifications list SuperSign Premium as the content management software and SuperSign C for control and monitoring. The display can also use the MP500 and MP700 external media players. The 49SH7DD is not listed as OPS-type compatible. Compared with the 49SH7DB, it has a 300 x 300 mm VESA interface instead of 400 x 400 mm and lists no DisplayPort output.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 cd/m²
Type
Digital Signage Display
- Full HD 700-nit screen
- Content management
- Media player support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD 700-nit screen
1920 x 1080 resolution with a 700 cd/m2 typical brightness rating.
02
Content management
SuperSign Premium content management software and SuperSign C for control and monitoring.
03
Media player support
Attachable to the MP500 and MP700 external media players.
04
Network control
RS-232C in and out, RJ45 LAN and IR receiver for remote control.
05
Compact depth
Overall depth of 54 mm, with a head weight of 14.3 kg.
06
Energy saving
Smart energy saving rated at 65 W, with ErP and Energy Star 8.0 listed.
07
Operating range
Rated for 0 to 40 °C and 10% to 80% humidity.
Specifications
19 specificationsGeneral
Key FeaturesFull HD 700-nit screen, SuperSign Premium CMS, SuperSign C monitoring, MP500/MP700 media player support, RS-232C and RJ45 control, IR receiver, 300 x 300 mm VESA, 65 W smart energy saving
Model49SH7DD
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C adapter, IR receiver
Display
Brightness700 cd/m²
Resolution1920 x 1080 (Full HD)
Screen Size49 inch
Connectivity
EthernetRJ45 LAN × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotNot OPS-type compatible
PortsRS-232C In/Out, RJ45 LAN × 1, IR receiver, USB × 1
Serial PortRS-232C In/Out
Power
Power Consumption65 W (smart energy saving)
Physical
Dimensions1102.2 x 638.5 x 54 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight14.3 kg (head)
Compliance
CertificationsUL, cUL, CB, TUV, KC; EMC FCC Class A, CE, KCC
Downloads
Manufacturer documents for the LG SH7D 49-inch Full HD High-Brightness Digital Signage Display – 49SH7DD — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 49SH7DD?
The LG 49SH7DD is a 49-inch Full HD digital signage display in the SH7D series. It has a 700 cd/m2 brightness rating, a 1920 x 1080 resolution and a 300 x 300 mm VESA mount interface. It can use the MP500 and MP700 external media players.
Does the 49SH7DD support OPS computing modules?
No. The manufacturer lists the 49SH7DD as not OPS-type compatible. It can use the MP500 and MP700 external media players, which the manufacturer lists as attachable to the display. Confirm the chosen player model with the installer before installation.
Can the 49SH7DD be controlled remotely?
Yes. The 49SH7DD supports RS-232C in and out, RJ45 LAN and an IR receiver. These connections let external systems control the display, and SuperSign C is listed as its control and monitoring software.
What VESA mount does the 49SH7DD need?
The 49SH7DD uses a VESA standard mount interface of 300 x 300 mm. Its head weighs 14.3 kg, so confirm that the bracket or stand is rated for that load before installation.
What temperature range does the 49SH7DD operate in?
The 49SH7DD is rated for operation from 0 to 40 °C at 10% to 80% humidity, according to the manufacturer specifications. Plan the location and ventilation around that range before installation.
