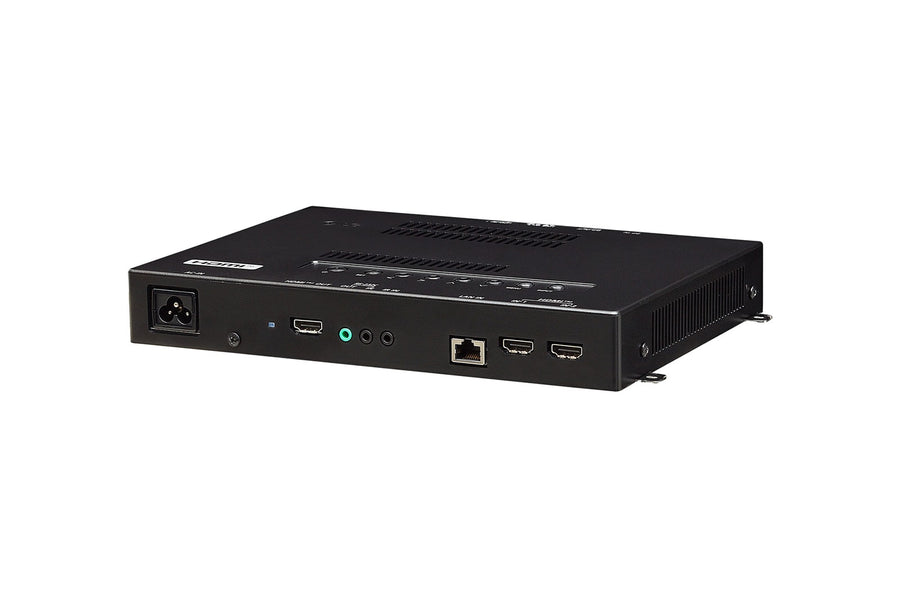

LG WP601 OPS Player digital signage media playerLG

LG OPS Player Digital Signage Media Player – WP601

The LG WP601 OPS Player is a digital signage media player that runs webOS 6.0 and plays content on LG signage displays. It suits businesses, schools and government offices that update screens from a central system. It has two HDMI inputs, 16 GB internal memory and built-in Wi-Fi and Bluetooth. Procure.ae supplies the LG WP601 across the UAE.

The WP601 supports scheduled local playback, play via URL, gapless playback and failover. It has two HDMI inputs, one DisplayPort input with HDCP 2.2, one HDMI output and one DisplayPort output. Two USB 2.0 Type A ports, RS-232C in and out, and an IR input connect it to existing controls. Its RJ45 port is a LAN output rather than an input. Content is managed through SuperSign CMS, SuperSign Control+ and SuperSign Cloud.

The WP601 suits single displays, PBP or PIP layouts, and multi-screen walls using tile mode settings. It fits lobbies, retail floors, classrooms and meeting rooms where a compact player sits out of sight. It operates from 0 to 40 °C and 10% to 80% humidity on 100–240 V AC power. Its 258 x 36.5 x 186 mm body and 0.87 kg weight keep the install small. Procure.ae can advise on the right LG display to pair with it.

Type
Digital Signage Media Player
Weight
0.87 kg
  • webOS 6.0 platform
  • Multi-screen layouts
  • Cloud and central management
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
webOS 6.0 platform
runs LG webOS 6.0 for signage apps and content playback.
02
Multi-screen layouts
supports 4-split PBP, PIP and tile mode settings for video walls.
03
Cloud and central management
works with SuperSign Cloud, SuperSign Control+ and Group Manager.
04
Video inputs
two HDMI inputs and one DisplayPort input with HDCP 2.2 support.
05
Network connection
RJ45 LAN output, built-in Wi-Fi and Bluetooth, and Wake on LAN.
06
Control ports
RS-232C in and out, IR in and HDMI-CEC support.
07
Local storage
16 GB internal eMMC memory with gapless playback.
08
Scheduling and failover
local content scheduling, fail over and a no-signal image.

Specifications

17 specifications
General
Key FeatureswebOS 6.0, 4-split PBP and PIP, Tile mode for video walls, Built-in Wi-Fi and Bluetooth, Wake on LAN, Local content scheduling, SuperSign Cloud compatible, Fail over
ModelWP601
TypeDigital Signage Media Player
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS-232C adapter, IR cable, ferrite core
Performance
Operating SystemwebOS 6.0
Storage16 GB
Connectivity
ConnectivityRJ45 LAN Out, Wi-Fi, Bluetooth, RS-232C, IR, HDMI-CEC
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, HDMI Out × 1, DisplayPort Out × 1, USB 2.0 Type A × 2, RJ45 LAN Out × 1, RS-232C In/Out, IR In
Wi-FiBuilt-in
Power
Standby Power0.5 W (power off)
Physical
ColorBlack
Dimensions258 x 36.5 x 186 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight0.87 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE Class A

Downloads

Manufacturer documents for the LG OPS Player Digital Signage Media Player – WP601 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the LG WP601 work with LG signage displays?
Yes. The WP601 connects through HDMI or DisplayPort and supports HDMI-CEC control. Check the display's input list and control ports before ordering, and Procure.ae can confirm the pairing for your project.
How is the WP601 different from the WP600?
Both players run webOS 6.0 with the same video inputs and storage. The WP601 has an RJ45 LAN output port instead of an RJ45 LAN input, and it is listed under the LG OPS Player name.
How much storage does the WP601 have?
The WP601 has 16 GB of internal eMMC memory. The manufacturer's specifications do not state how much of that is free for content after the system software is installed. Use the scheduling features to keep the library within that capacity, and confirm storage needs with Procure.ae for large video libraries.
Can the WP601 drive a video wall?
Yes. The WP601 has tile mode settings and 4-split PBP and PIP layouts, so it can drive multi-screen content. Confirm the wall layout and display inputs with Procure.ae before ordering.
Can I buy the WP601 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
