LGDigital SignageSKU 75XF3PS-BP

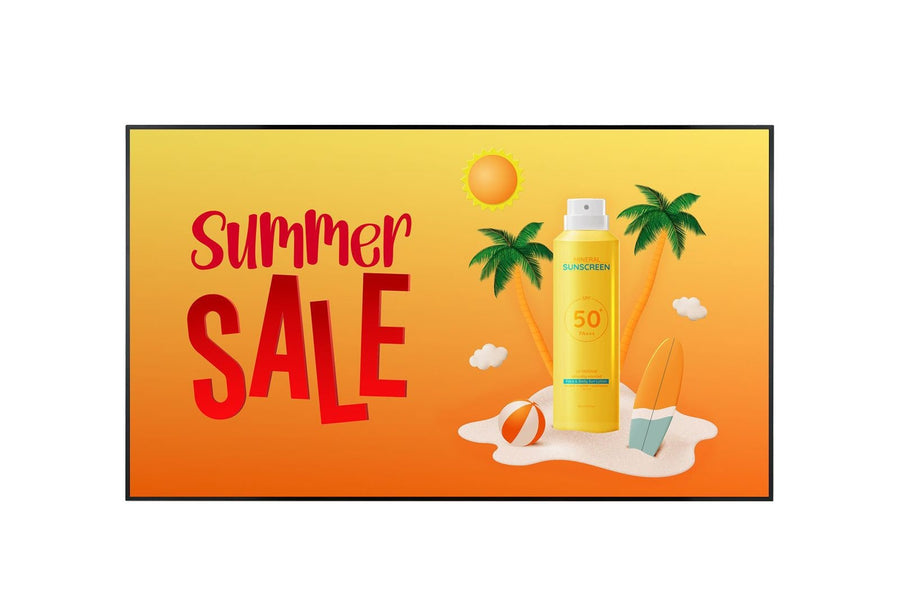

LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3PS-BP
The LG 75XF3PS-BP is a 75-inch open-frame 4K UHD digital signage display with 3,000 nits typical brightness, 10-bit colour and webOS 6.0. It adds SuperSign Cloud, Connected Care and power protection for managed deployments. Procure.ae supplies the LG 75XF3PS-BP across the UAE.
The 75XF3PS-BP uses a 3840 x 2160 IPS panel with 3,000 nits typical and 2,800 nits minimum brightness. Its 10-bit panel provides 1.07 billion colours, with an NTSC 68% colour gamut, 1200:1 typical contrast and 8 ms response time at 60 Hz. The display is listed for 24/7 operation and portrait and landscape orientation, with brightness compensation. It includes current, BLU, temperature, humidity and auto-brightness sensors and a built-in fan, with an operating range of 0 to 50 °C without direct sunlight and 0 to 40 °C in direct sunlight.
It fits open-frame signage in lobbies, retail floors and corporate reception areas, and it suits video walls with Tile Mode Setting up to 15 x 15 and Backlight Sync. Management uses SuperSign CMS, SuperSign Control+ and SuperSign Cloud, with Connected Care and SNMP support. Compared with the 75XF3P, it lists a narrower NTSC 68% colour gamut and adds current, BLU and fan sensors plus local key operation.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3000 nits (typical), 2800 nits (min...
Type
Digital Signage Display
- Open-frame brightness
- 10-bit colour
- 4K UHD panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Open-frame brightness
3,000 nits typical and 2,800 nits minimum brightness.
02
10-bit colour
1.07 billion colours with NTSC 68% colour gamut.
03
4K UHD panel
3840 x 2160 IPS resolution on a 75-inch screen.
04
Sensor suite
Current, BLU, temperature, humidity and auto-brightness sensors.
05
Video wall tiling
Tile Mode Setting up to 15 x 15 with Backlight Sync.
06
Cloud management
SuperSign Cloud, SuperSign CMS and SuperSign Control+ software.
07
Power protection
Power protection and a conformal-coated power board.
08
Local key operation
Local key operation with Local Network Sync and fail over.
Specifications
26 specificationsGeneral
Key FeaturesOpen-frame design, 3000 nits typical, 4K UHD, 10-bit colour, Current and BLU sensors, Local key operation, Power protection, SuperSign Cloud
Model75XF3PS-BP
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size11.8 mm (even)
Brightness3000 nits (typical), 2800 nits (minimum)
Color Depth1.07 billion colours (10-bit)
Color GamutNTSC 68%
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) x 178° (V)
Performance
Operating SystemwebOS 6.0
Storage8 GB
Audio
Speaker OutputExternal speaker output, 10 W + 10 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In, DP Out, RS232C In/Out, RJ45 LAN In, USB 2.0 Type A
Physical
Dimensions1675.2 x 953.6 x 128.9 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 50 °C (without direct sunlight); 0 to 40 °C (direct sunlight)
Weight35.7 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
Downloads
Manufacturer documents for the LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3PS-BP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 75XF3PS-BP a 4K display?
Yes. It has a 3840 x 2160 UHD resolution on a 75-inch 16:9 IPS panel. The manufacturer lists 10-bit colour with 1.07 billion colours and an NTSC 68% colour gamut, with a 60 Hz refresh rate for standard 4K signage content.
How bright is the LG 75XF3PS-BP?
It has 3,000 nits typical brightness and 2,800 nits minimum, with a 1200:1 typical contrast ratio and 500,000:1 dynamic contrast. Brightness compensation is listed, and an auto brightness sensor is included, so the installer can check the room conditions when setting the display output.
Can the LG 75XF3PS-BP be used in a video wall?
Yes. The manufacturer lists Tile Mode Setting up to 15 x 15, Backlight Sync and Local Network Sync. Confirm the wall layout, bezel alignment and control cabling with Procure.ae before the installation is specified.
What are the mounting dimensions and weight of the LG 75XF3PS-BP?
The manufacturer's specifications do not state a VESA mount pattern for the 75XF3PS-BP. The monitor measures 1675.2 x 953.6 x 128.9 mm, the head weighs 35.7 kg and the packed weight is 47.0 kg, so plan the mounting frame and handling around these figures.
How is the LG 75XF3PS-BP managed remotely?
It supports SuperSign CMS, SuperSign Control+ and SuperSign Cloud, with Connected Care support. Network and control options include RS232C In/Out, RJ45 LAN and Wake on LAN, with SNMP and Status Mailing for alerts and monitoring.
