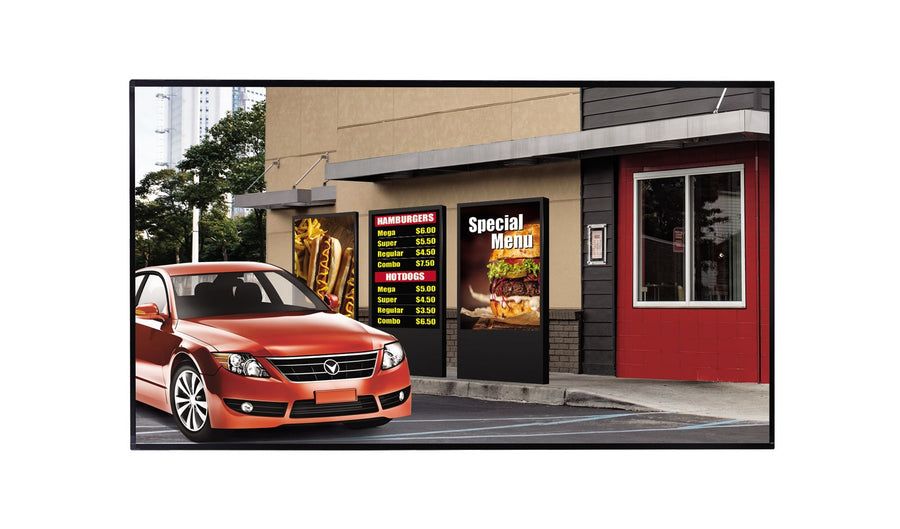

LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3C
The LG 75XF3C is a 75-inch open-frame 4K UHD digital signage display built for high-brightness signage. It lists 3,000 nits typical brightness with glass, a 3840 x 2160 IPS panel and webOS 3.0. Procure.ae supplies the LG 75XF3C across the UAE.
The 75XF3C pairs a 3840 x 2160 UHD IPS panel with 3,000 nits typical brightness measured with glass and a 1,200:1 typical contrast ratio. The panel shows 1.07 billion colours at 10-bit with NTSC 72% gamut, a 60 Hz refresh rate and 8 ms grey-to-grey response. The manufacturer lists direct sunlight support, a conformal-coated power board and built-in temperature, humidity and auto-brightness sensors.
It fits open-frame installations in lobbies, shopping malls and retail spaces that need a 75-inch 4K screen. The display runs webOS 3.0 with SuperSign CMS for content management and supports HDMI-CEC, RS232C control, SNMP monitoring and Wake on LAN. It has two HDMI inputs, a DisplayPort input, a DVI-D input and no built-in speaker. Compared with the 75XF3P, it runs webOS 3.0 instead of webOS 6.0 and does not list PIP or PBP modes.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3000 nits (typical, with glass)
Type
Digital Signage Display
- Open-frame brightness
- 4K UHD resolution
- Direct sunlight rating
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Open-frame brightness
3,000 nits typical brightness with glass.
02
4K UHD resolution
3840 x 2160 IPS panel with 1.07 billion colours.
03
Direct sunlight rating
Operating range of 0 to 50 °C, or 0 to 40 °C in direct sunlight.
04
Built-in sensors
Auto brightness, temperature, humidity and fan.
05
SuperSign CMS
Content management with SuperSign CMS software.
06
Network control
RJ45 LAN, RS232C In/Out, IR In and Wake on LAN.
07
Video wall tiling
Tile Mode Setting for tiled video wall installations.
08
Even black bezel
11.8 mm even bezel around the open-frame panel.
Specifications
25 specificationsGeneral
Key FeaturesOpen-frame design, 3000 nits typical, 4K UHD IPS, Direct sunlight rating, SuperSign CMS, Tile mode, Wake on LAN, SNMP
Model75XF3C
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size11.8 mm (even)
Brightness3000 nits (typical, with glass)
Color Depth1.07 billion colours (10-bit)
Color GamutNTSC 72%
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) x 178° (V)
Performance
Operating SystemwebOS 3.0
Storage8 GB
Audio
Speaker OutputExternal speaker output only (no built-in speaker)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In, DP Out, DVI-D In, Audio In, RS232C In/Out, RJ45 LAN In, IR In, USB 3.0 Type A × 1
Physical
Dimensions1675.2 x 953.6 x 123.9 mm
Operating Humidity10% to 85% RH
Operating Temperature0 to 50 °C (0 to 40 °C in direct sunlight)
Weight36.7 kg
Compliance
CertificationsUL Recognized, CB, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 75XF3C a 4K display?
Yes. The LG 75XF3C has a 3840 x 2160 UHD native resolution on a 75-inch 16:9 IPS panel. It lists 1.07 billion colours at 10-bit, with NTSC 72% colour gamut and a 60 Hz refresh rate, which suits detailed video and graphics content.
How bright is the LG 75XF3C?
It has 3,000 nits typical brightness with glass and a 1,200:1 typical contrast ratio. Dynamic contrast is listed at 500,000:1. The display is an open-frame design with an 11.8 mm even bezel, and it includes an auto brightness sensor for the installation environment.
Does the LG 75XF3C support video wall installations?
Yes. The manufacturer lists Tile Mode Setting, Screen Rotation, Backlight Sync and Local Network Sync, which are the settings used for tiled and multi-display setups. Confirm the tiling arrangement and control cabling with Procure.ae before ordering.
What are the mounting dimensions and weight of the LG 75XF3C?
The manufacturer's specifications do not state a VESA mount pattern for the 75XF3C. The monitor measures 1675.2 x 953.6 x 123.9 mm, the head weighs 36.7 kg and the packed weight is 46.3 kg, so plan the mounting frame and handling around these figures.
Can the LG 75XF3C be controlled and monitored remotely?
Yes. It has an RJ45 LAN input, RS232C In/Out, an IR input and Wake on LAN. SNMP and Status Mailing are listed, so the display can report status over the network. Confirm integration needs with Procure.ae before installation.
