LGDigital SignageSKU 55EH5C-S

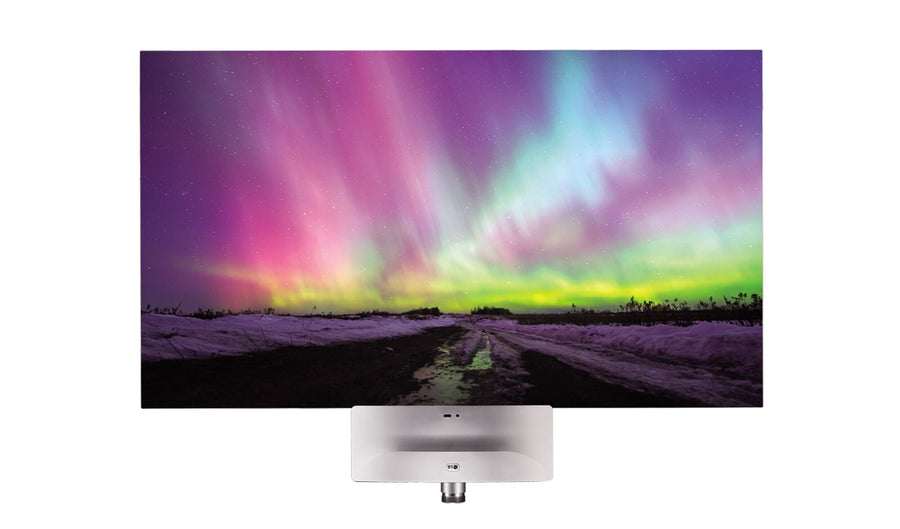

LG OLED EH5 Dual-View Flat 55-inch Digital Signage Display – 55EH5C-S
The LG 55EH5C-S is a 55-inch flat OLED digital signage display with a 1920 x 1080 Full HD panel and a separate signage box. It suits commercial signage that needs a slim 2 mm off-bezel and 400 nits brightness, with RS232C, RJ45 and USB control. Procure.ae supplies this LG model in the UAE.
The 55EH5C-S has a 55-inch flat OLED panel at 1920 x 1080 Full HD resolution. Brightness is rated at 400 nits at 25% average picture level and 100 nits at 100% APL. The off-bezel width is 2 mm on all four sides, and the head is 7.94 mm deep, or 8.94 mm at the edge. The head weighs 21 kg and connects to a separate signage box that carries the control and input ports.
The signage box supports OPS compatibility and external media player attachment, and it works with the SuperSign-w lite and SuperSign-c software listed by the manufacturer. Control runs over RS232C and RJ45 LAN on 1+1 ports, plus an IR receiver and USB 2.0 and 3.0 ports. Power is 100–240 V AC, and the unit operates from 0 to 40 °C at 10% to 80% humidity, which suits commercial installations that need a slim display.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits (APL 25%), 100 nits (APL 1...
Type
OLED Digital Signage Display
- Flat OLED panel
- Off-bezel design
- Slim head
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Flat OLED panel
a flat OLED display with 1920 x 1080 Full HD resolution.
02
Off-bezel design
a 2 mm off-bezel width on all four sides.
03
Slim head
the head measures 7.94 mm deep, or 8.94 mm at the edge.
04
Signage box
a separate signage box with control and input ports and OPS compatibility.
05
External media player
an external media player can be attached to the signage box.
06
SuperSign software
SuperSign-w lite and SuperSign-c support for content management.
07
Control interfaces
RS232C and RJ45 (1+1 each), an IR receiver, and USB 2.0 and 3.0 ports.
08
Power efficiency
0.5 W power draw when off, with ErP compliance listed.
Specifications
17 specificationsGeneral
Key FeaturesFlat OLED panel, 2 mm off-bezel, Signage box with OPS compatibility, External media player attachable, SuperSign-w lite and SuperSign-c, IR receiver, ErP compliance
Model55EH5C-S
TypeOLED Digital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, QSG, mini HDMI cables (3 m × 2), power harness cables (3 m × 2), regulation book, RS232C gender adapter, jack cover, signage box bracket
Display
Bezel Size2 mm (off-bezel, all four sides)
Brightness400 nits (APL 25%), 100 nits (APL 100%)
Panel TechnologyOLED
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsRS232C In/Out (1+1), RJ45 LAN In/Out (1+1), IR receiver, USB 2.0 × 2, USB 3.0 × 2
Power
Power Consumption0.5 W (power off)
Physical
Dimensions1227.6 x 702.7 x 7.94 mm (head, W x H x D)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight21 kg (head)
Compliance
CertificationsUL, cUL, CB, TUV, KC, FCC Class A, CE, KCC
Downloads
Manufacturer documents for the LG OLED EH5 Dual-View Flat 55-inch Digital Signage Display – 55EH5C-S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 55EH5C-S?
The LG 55EH5C-S is a 55-inch flat OLED display with 1920 x 1080 Full HD resolution. Brightness is rated at 400 nits at 25% average picture level and 100 nits at 100%.
Does the 55EH5C-S need a separate signage box?
Yes. The head connects to a separate signage box using two 3 m mini HDMI cables and two 3 m power harness cables, both supplied. The signage box carries the control and input ports, including RS232C, RJ45, USB and the IR receiver.
How thin is the 55EH5C-S and what is its bezel width?
The head is 7.94 mm deep, or 8.94 mm at the edge, with a 2 mm off-bezel width on all four sides. The head weighs 21 kg and measures 1,227.6 x 702.7 mm.
Can the 55EH5C-S be controlled from a central system?
Yes. It supports RS232C and RJ45 LAN control on 1+1 ports, plus an IR receiver and USB 2.0 and 3.0 ports. These interfaces allow integration with existing control and content management systems.
Which operating conditions apply to the 55EH5C-S?
The unit operates from 0 to 40 °C with 10% to 80% relative humidity, on 100–240 V AC, 50/60 Hz power. Its power draw is 0.5 W when off, and the manufacturer lists UL, cUL, CB, TUV and KC safety approvals.
