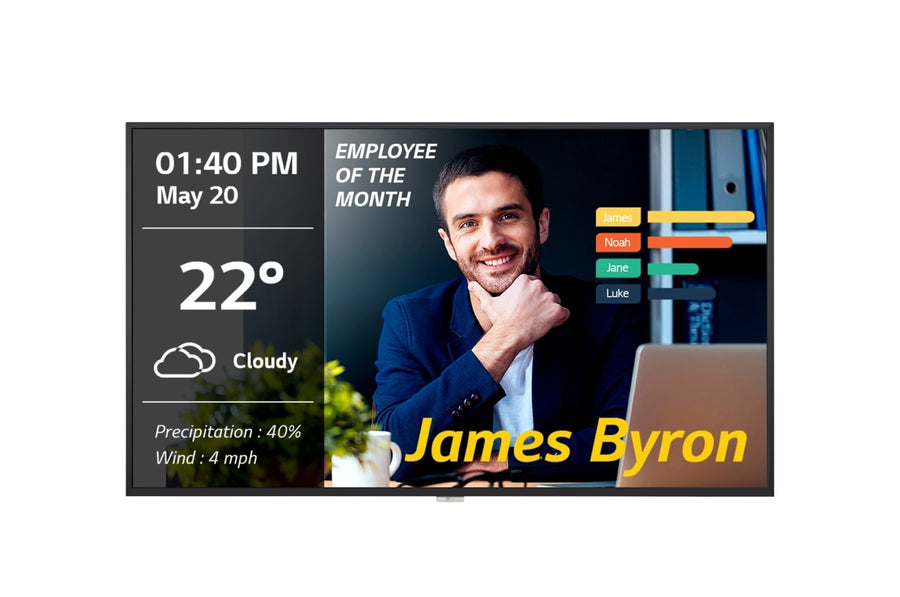

LG 49UM3DG IP5x dust-proof 4K UHD digital signage displayLG
Digital SignageSKU 49UM3DG

LG IP5x Dust-Proof Ultra HD 49-inch Digital Signage Display – 49UM3DG

The LG 49UM3DG is a 4K UHD digital signage display with an IP5X dust-proof rating, a 350-nit IPS panel and a 1,200:1 contrast ratio. It suits signage in dusty or busy environments such as lobbies, transport hubs and retail areas. Procure.ae supplies the LG 49UM3DG across the UAE.

The 49UM3DG uses an IPS panel with a native resolution of 3,840 x 2,160 and 350 nits typical brightness. The display has a 1,200:1 contrast ratio and covers 95% of the BT.709 colour gamut with 10-bit colour depth. An 8 ms (G to G) response time and 178° x 178° viewing angle suit video and static content. The manufacturer rates the display for 18 hours a day, 7 days a week, and it supports both portrait and landscape orientation.

The 49UM3DG is rated IP5X, which makes it suited to dusty environments. Its external control options are RS232C In and Out, RJ45 LAN In and IR In, and it supports SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Media Editor for content management. The VESA 300 x 300 mm mounting interface supports wall or stand installation, and the maximum face-down tilt is 15 degrees within 30 °C conditions.

Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Type
Digital Signage Display
Weight
15.4 kg (without stand)
  • IP5X dust-proof
  • 4K UHD panel
  • Brightness
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
IP5X dust-proof
IP5X rating for dust resistance
02
4K UHD panel
3,840 x 2,160 IPS panel with 95% BT.709 colour gamut
03
Brightness
350 nits typical with a 1,200:1 contrast ratio
04
Content management
SuperSign CMS, Control+, WB and Media Editor
05
Control
RS232C In/Out, RJ45 LAN In and IR In
06
Mounting
VESA 300 x 300 mm interface
07
Extended operation
Rated for 18 hours a day, 7 days a week
08
Service
Signage365Care availability differs by region

Specifications

23 specifications
General
Key FeaturesIP5X dust-proof, 350 nits, 4K UHD IPS panel, SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Media Editor, Signage365Care, speaker
Model49UM3DG
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick setup guide, regulation book, phone-to-RS232C adapter
Display
Brightness350 nits (typical)
Color Depth1.07 billion colours (10-bit)
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Viewing Angle178° x 178°
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsRS232C In/Out (4-pin), RJ45 LAN In, IR In
Power
Power Consumption85 W typical, 120 W maximum
Physical
Dimensions1098.6 x 633.3 x 39.9 mm
Duty Cycle18/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight15.4 kg (without stand)
Compliance
IP RatingIP5X

Downloads

Manufacturer documents for the LG IP5x Dust-Proof Ultra HD 49-inch Digital Signage Display – 49UM3DG — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the LG 49UM3DG?
The LG 49UM3DG is a 4K UHD digital signage display in the IP5x Dust-Proof Ultra HD Series. It has an IPS panel, 350 nits typical brightness and a 1,200:1 contrast ratio. The IP5x rating makes it suited to signage in dusty environments.
Is the 49UM3DG dust-proof?
The manufacturer rates the 49UM3DG IP5x, which indicates protection against dust ingress. It is designed for signage in dusty or busy environments. The operating temperature is 0 to 40 °C and humidity is 10% to 80%.
Can the 49UM3DG be wall-mounted?
Yes. The display has a VESA standard mount interface of 300 x 300 mm and supports portrait and landscape orientation. Its monitor dimensions are 1098.6 x 633.3 x 39.9 mm. The maximum face-down tilt is 15 degrees within 30 °C and 50% humidity.
Can the display be controlled remotely?
Yes. The 49UM3DG has RS232C In and Out, RJ45 LAN In and IR In. It works with SuperSign Control+ for monitoring and with SuperSign CMS for scheduling content across several displays.
What power does the 49UM3DG use?
The display uses 100 to 240 V AC at 50/60 Hz with built-in power. The manufacturer lists typical consumption of 85 W and a maximum of 120 W, and it is listed under CB/NRTL safety and FCC Class A and CE EMC approvals.
Can I buy the 49UM3DG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
