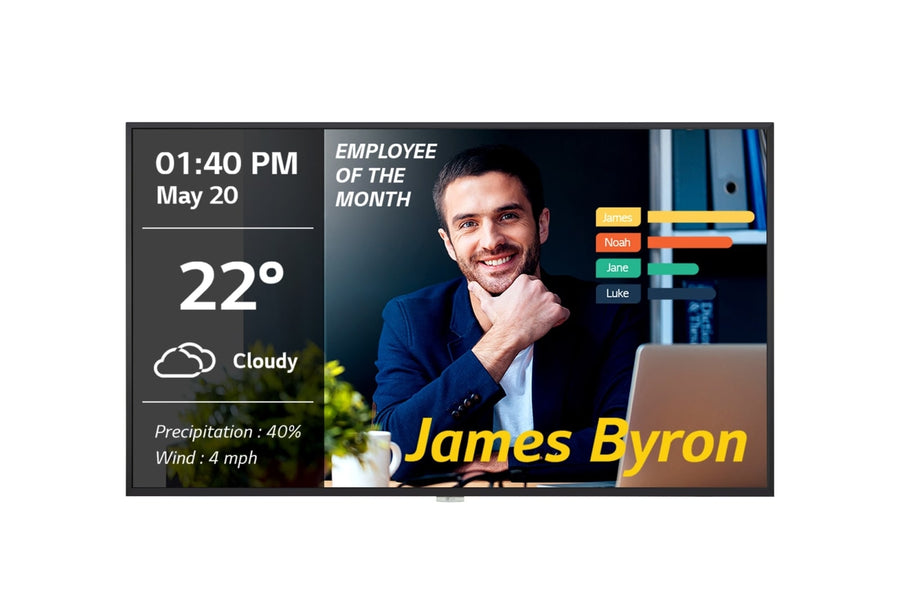

LG 65UM3DG 65-inch IP5X dust-proof UHD digital signage displayLG
Digital SignageSKU 65UM3DG

LG IP5X Dust-Proof UHD 65-inch Digital Signage Display – 65UM3DG

The LG 65UM3DG is a 65-inch UHD digital signage display with an IP5X dust-proof housing, an IPS panel and 350 nits typical brightness. It suits dusty indoor sites, retail and corporate information screens, and runs SuperSign software. Procure.ae supplies the LG 65UM3DG across the UAE.

The IPS panel delivers 3840 x 2160 UHD resolution with 350 nits typical brightness, a 1,200:1 contrast ratio and a 500,000:1 dynamic contrast ratio. Its BT709 95% colour gamut and 10-bit colour depth suit accurate video playback. The display supports portrait and landscape orientation, a 178 x 178 degree viewing angle and an 8 ms response time. The IP5X rating covers dust protection for the housing, which suits dusty sites.

The 65UM3DG suits signage installations that need dust protection and a built-in speaker. It is controlled through RS-232C in and out, RJ-45 LAN and IR, and manages content with SuperSign CMS, SuperSign Control and Control+, and SuperSign Media Editor. The 300 x 300 mm VESA interface supports wall mounting. The display is rated for 18 hours a day, 7 days a week, so it fits daytime and extended-hours use rather than round-the-clock operation.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Type
Digital Signage Display
  • IP5X dust protection
  • IPS UHD panel
  • Contrast and colour
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
IP5X dust protection
Rated for dust-prone indoor sites.
02
IPS UHD panel
3840 x 2160 resolution with 350 nits typical brightness.
03
Contrast and colour
1,200:1 contrast ratio and BT709 95% colour gamut.
04
Portrait and landscape
Supports both orientations for signage content.
05
SuperSign software
SuperSign CMS, Control, Control+ and Media Editor.
06
Network control
RS-232C in and out, RJ-45 LAN and IR input.
07
Built-in speaker
Audio output for signage content.
08
Energy saving
Smart Energy Saving mode at 74 W and 0.5 W power-off consumption.

Specifications

30 specifications
General
Key FeaturesIP5X dust protection, IPS UHD panel, SuperSign CMS, SuperSign Control and Control+, SuperSign Media Editor, Signage 365 Care, Smart Energy Saving, built-in speaker
Model65UM3DG
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick setup guide, regulation book, phone to RS-232C gender adapter
Display
Aspect Ratio16:9
Bezel Size9.9 mm sides and top, 14.4 mm bottom
Brightness350 nits (typical)
Color Depth10-bit
Color GamutBT709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size65 inch
Viewing Angle178 x 178 degrees
Audio
AudioBuilt-in speaker
Connectivity
EthernetRJ-45 LAN In
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232C In/Out (4-pin phone jack)
Power
Power Consumption105 W (typical), 160 W (maximum), 74 W (smart energy saving), 0.5 W (power off)
Physical
ColorBlack bezel
Dimensions1453.3 x 832.8 x 39.9 mm (W x H x D)
Duty Cycle18 hours a day, 7 days a week
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight28.2 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP
IP RatingIP5X

Downloads

Manufacturer documents for the LG IP5X Dust-Proof UHD 65-inch Digital Signage Display – 65UM3DG — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What are the screen size and resolution of the LG 65UM3DG?
The LG 65UM3DG has a 65-inch IPS screen with a native resolution of 3840 x 2160 (4K UHD). It uses a 16:9 aspect ratio, supports portrait and landscape orientation, and lists 350 nits typical brightness with a 1,200:1 contrast ratio and BT709 95% colour gamut.
Is the 65UM3DG suitable for a dusty site?
Yes. The LG 65UM3DG carries an IP5X rating, which covers dust protection. It is rated for operating temperatures of 0 to 40 °C and humidity of 10% to 80%. Confirm the site conditions with Procure.ae before installation.
Can the 65UM3DG run 24/7 in a busy lobby?
No. The manufacturer rates the LG 65UM3DG for 18 hours a day, 7 days a week. For round-the-clock use, a model rated for 24/7 operation is the better fit. Procure.ae can advise on the right model for your hours of use.
How is the 65UM3DG mounted?
The display uses a 300 x 300 mm VESA interface. The monitor measures 1453.3 x 832.8 x 39.9 mm and weighs 28.2 kg without packaging, so use a bracket rated for that load. Confirm the bracket and wall details with Procure.ae before installation.
Does the 65UM3DG work with SuperSign and network control?
Yes. The manufacturer lists SuperSign CMS, SuperSign Control and Control+, SuperSign WB and SuperSign Media Editor, along with RS-232C in and out, RJ-45 LAN and IR input. Signage 365 Care is also listed, subject to regional availability.
Can I buy the 65UM3DG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
