LGDigital SignageSKU 49UH5F-H

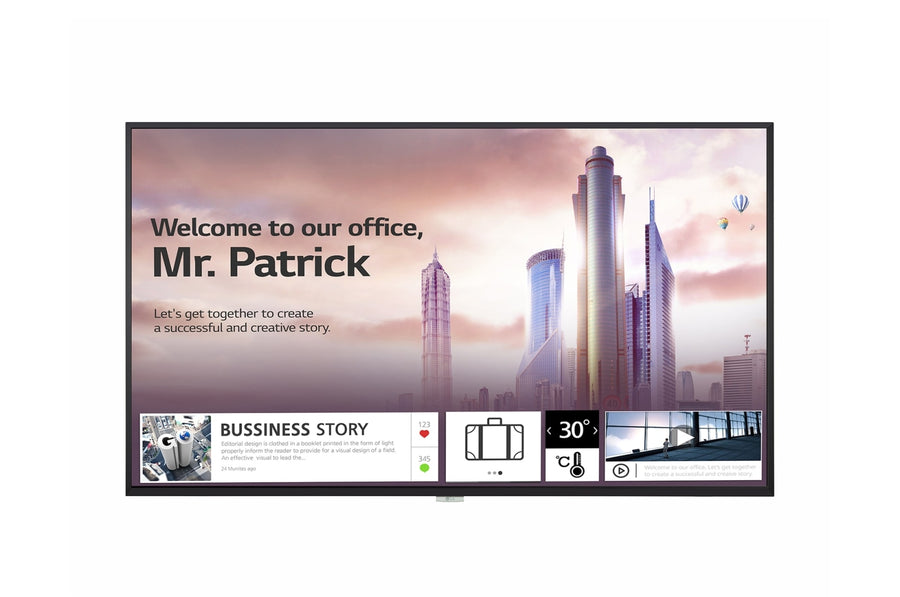

LG High Haze UHD 49-inch Digital Signage Display – 49UH5F-H
The LG 49UH5F-H is a 49-inch 4K UHD (3840 x 2160) digital signage display with an IPS panel, 500 nits typical brightness and webOS 4.1 for content playback and remote management. It suits lobbies, retail floors and meeting areas that need an always-on screen. Procure.ae supplies the LG 49UH5F-H across the UAE.
The 49UH5F-H uses a 49-inch IPS panel with a native resolution of 3840 x 2160 and 500 nits typical brightness. The display has a 1,000:1 contrast ratio and covers 95% of the BT.709 colour gamut. A 60 Hz refresh rate and 8 ms (G to G) response time suit video playback, and the 178° viewing angle keeps images readable from the side. The unit is rated for 24/7 operation and supports both portrait and landscape orientation. Built-in 10 W x 2 speakers are included.
The 49UH5F-H runs webOS 4.1 and supports SuperSign CMS, Mobile CMS and Crestron Connected for managing content across several screens. Its inputs include three HDMI ports, DisplayPort in and out, DVI-D, RJ45 LAN, RS232C and IR, and it supports tile mode for multi-screen layouts. VESA 300 x 300 mm mounting and an IP5X rating suit wall or stand installation in reception areas, classrooms and retail environments.
Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD resolution
- Brightness
- Always-on operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 IPS panel with 95% BT.709 colour gamut
02
Brightness
500 nits typical with a 1,000:1 contrast ratio
03
Always-on operation
Rated for 24/7 use with smart energy saving
04
Built-in webOS
webOS 4.1 with SuperSign CMS and Mobile CMS support
05
Integrated audio
Built-in 10 W x 2 speakers
06
Connectivity
Three HDMI inputs, DisplayPort, RJ45 LAN and RS232C control
07
Wireless
Built-in Wi-Fi and Bluetooth
08
Mounting
VESA 300 x 300 mm with IP5X dust resistance
Specifications
32 specificationsGeneral
Key FeaturesDust-resistant IP5X, 10 W x 2 speakers, SuperSign CMS, Mobile CMS, Crestron Connected, tile mode, Wi-Fi and Bluetooth, 24/7 operation
Model49UH5F-H
TypeDigital Signage Display
What's in the BoxRemote controller with batteries, power cord, quick setup guide, HDMI cable, regulation book, phone-to-RS232C adapter
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colours (10-bit)
Color GamutBT.709 95%
Contrast Ratio1,000:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size49 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.1
Storage8 GB internal
Audio
Speaker Output10 W x 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS compatible (piggyback, OPS power not built in)
PortsHDMI In × 3, DisplayPort In/Out, DVI-D In, RJ45 LAN In, RS232C In/Out, IR In, USB 2.0 × 1
Wi-FiBuilt-in
Power
Power Consumption76 W (smart energy saving)
Physical
Dimensions1098.6 x 644.5 x 39.9 mm (without stand)
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight16.0 kg (with stand)
Compliance
IP RatingIP5X
Downloads
Manufacturer documents for the LG High Haze UHD 49-inch Digital Signage Display – 49UH5F-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 49UH5F-H?
The LG 49UH5F-H is a 49-inch 4K UHD digital signage display with an IPS panel, 500 nits typical brightness and built-in webOS. It is designed for continuous operation in lobbies, retail areas and meeting spaces. Its 3840 x 2160 resolution and 178° viewing angle keep content readable from most positions in a room.
Does the 49UH5F-H support an OPS media player?
Yes. The display is compatible with piggyback OPS media players. OPS power is not built in, so the OPS unit needs its own power supply. The display also supports Play via URL, USB Plug and Play and SuperSign CMS for content management.
Can the 49UH5F-H be wall-mounted?
Yes. The display has a VESA standard mount interface of 300 x 300 mm and supports portrait and landscape orientation. Its monitor dimensions are 1098.6 x 644.5 x 39.9 mm without the stand. The manufacturer rates it IP5X for dust resistance and lists a maximum face-down tilt of 30 degrees.
Can the display be controlled remotely?
Yes. The 49UH5F-H supports RS232C In and Out, RJ45 LAN, IR In and Wake on LAN, so it can be controlled from a control system or a network. It also supports SNMP, Crestron Connected integration and SuperSign Control+ for monitoring and scheduling.
Is the 49UH5F-H suitable for 24/7 use?
Yes. The manufacturer lists operation at 24 hours a day, 7 days a week, with an operating temperature of 0 to 40 °C and humidity of 10% to 80%. The display draws 76 W in smart energy saving mode and includes a temperature sensor for monitoring.
Can I buy the 49UH5F-H in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
