LGInteractive Flat PanelsSKU 86TR3ER

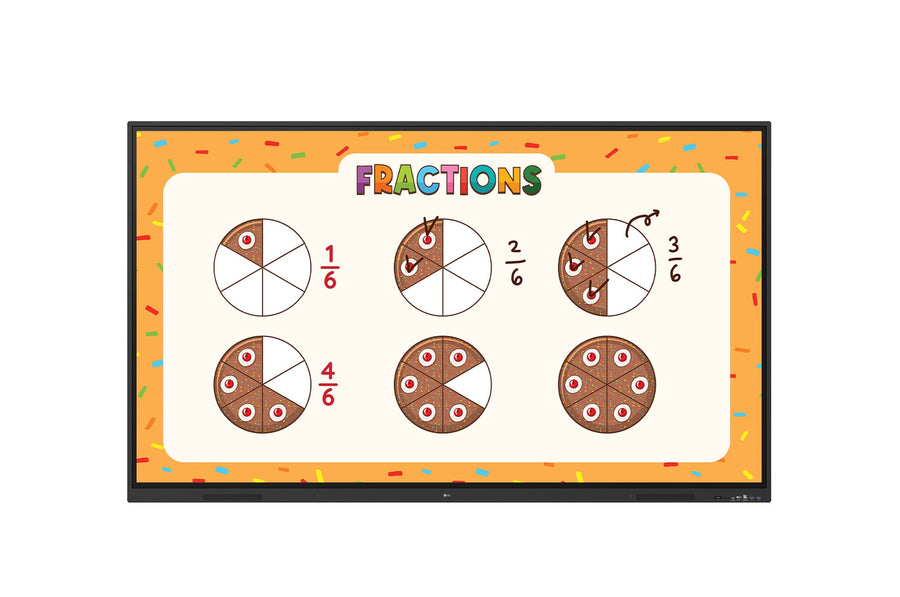

LG CreateBoard TR3ER 86-inch Interactive Flat Panel – 86TR3ER
The LG CreateBoard TR3ER 86-inch (model 86TR3ER) is a large-format 4K UHD interactive flat panel for meeting rooms, classrooms and collaboration spaces. It offers 50-point multi-touch, 350 nits typical brightness and Android 16 with 8 GB RAM and 128 GB storage. Procure.ae supplies the 86TR3ER in the UAE, with quotes, delivery and installation.
The 86TR3ER uses an 86-inch VA panel with a native 3840 x 2160 (4K UHD) resolution, 350 nits typical brightness, a 5,000:1 contrast ratio, a 60 Hz refresh rate and a 6.5 ms response time. Touch supports up to 50 points with ±2 mm accuracy. Built-in 20 W x 2 speakers, Wi-Fi 6 and Bluetooth 5.4 are built in, and the OPS slot works with built-in OPS power. The unit is rated for 16 hours a day, seven days a week, with Connected Care support for continuous use.
The 86TR3ER suits large meeting rooms, lecture halls and classrooms. It supports Windows 7, 8 and 10, Android, Linux, macOS and Chrome, and includes Screen Share, Wake on LAN and Smart Energy Saving. Compared with the 75TR3ER, it is the larger 86-inch model with a 5,000:1 contrast ratio, against 5,500:1 for the smaller panel.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Type
Interactive Flat Panel
- Large 4K Display
- 50-Point Touch
- Brightness and Contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large 4K Display
86-inch screen at 3840 x 2160 (4K UHD) on a 16:9 VA panel.
02
50-Point Touch
Multi-touch with up to 50 points and ±2 mm accuracy.
03
Brightness and Contrast
350 nits typical brightness with a 5,000:1 contrast ratio.
04
Android 16 Platform
8 GB RAM, 128 GB storage and an octa-core processor.
05
Wireless and Wired LAN
Built-in Wi-Fi 6, Bluetooth 5.4 and Gigabit LAN.
06
Sensors and Power
Auto brightness sensor, local key operation and Smart Energy Saving.
07
Connected Care
Connected Care support, with Wake on LAN for remote power-on.
08
OPS Slot
Accepts a compatible OPS module, with built-in OPS power.
Specifications
36 specificationsGeneral
CompatibilityWindows 7/8/10, Android, Linux, macOS, Chrome
Key FeaturesAuto brightness sensor, local key operation, Wake on LAN, Smart Energy Saving, Screen Share, PIP and PBP, Connected Care, OPS slot
Model86TR3ER
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth1.07 billion colors
Color GamutNTSC 72%
Contrast Ratio5,000:1
OrientationLandscape
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size86 inch
Touch Accuracy±2 mm
Touch Points50-point multi-touch
Viewing Angle178° x 178°
Performance
Duty Cycle16 hours/day, 7 days/week
Operating SystemAndroid 16
ProcessorOcta-core (A72 × 4 + A53 × 4)
RAM8 GB
Storage128 GB
Audio
Speaker Output20 W x 2
Connectivity
BluetoothBluetooth 5.4
EthernetGigabit LAN
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (OPS slot with built-in OPS power)
PortsHDMI In × 3, RJ45 LAN × 1, RS232C In × 1, Audio In, Audio Out
Touch USB PortsUSB 2.0 Type-B × 2
USB PortsUSB 3.0 Type-A × 3, USB 2.0 Type-A × 1, USB-C × 1 (65 W PD)
Wi-Fi802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Physical
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface ProtectionAnti-reflective, shatter-proof safety glass
Compliance
CertificationsCB, CE, KC, ERP, Energy Star
Downloads
Manufacturer documents for the LG CreateBoard TR3ER 86-inch Interactive Flat Panel – 86TR3ER — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 86TR3ER have multi-touch?
Yes. The 86TR3ER supports up to 50 touch points with ±2 mm accuracy and a Ø3 mm minimum object size. Two Touch USB 2.0 Type-B outputs connect the touch function to a computer, alongside its USB 3.0 and USB-C inputs.
Which inputs does the 86TR3ER offer?
It has HDMI (3), RS232C, RJ45 LAN, audio in and audio out, plus USB 3.0 Type-A x3, USB 2.0 Type-A x1 and a USB-C port that supports 65 W power delivery. An OPS slot with built-in OPS power is also fitted.
Does the 86TR3ER support Android and Windows sources?
Yes. The 86TR3ER runs Android 16 on its built-in platform, and the manufacturer lists Windows 7, 8 and 10, Linux, macOS and Chrome as supported systems. Its 8 GB RAM and 128 GB storage support that platform.
What mounting does the 86TR3ER need?
The manufacturer's specifications do not state a VESA pattern or head weight for the 86TR3ER. Procure.ae can confirm the mounting option for your room and arrange delivery and installation across the UAE.
Is the 86TR3ER suitable for a large meeting room?
Yes. The 86-inch screen, 50-point touch, 350 nits typical brightness and 178 x 178 degree viewing angles suit large meeting rooms and classrooms. It is listed for 0 to 40 °C and 10% to 90% humidity.
Can I buy the 86TR3ER in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
