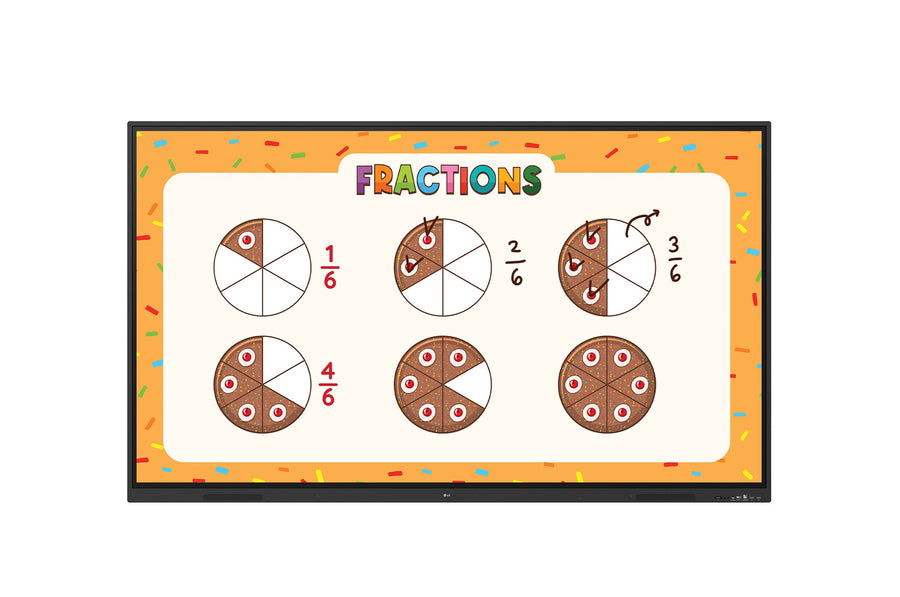

LG CreateBoard TR3ER 86-inch Interactive Flat Panel – 86TR3ER

The LG CreateBoard TR3ER 86-inch (model 86TR3ER) is a large-format 4K UHD interactive flat panel for meeting rooms, classrooms and collaboration spaces. It offers 50-point multi-touch, 350 nits typical brightness and Android 16 with 8 GB RAM and 128 GB storage. Procure.ae supplies the 86TR3ER in the UAE, with quotes, delivery and installation.

The 86TR3ER uses an 86-inch VA panel with a native 3840 x 2160 (4K UHD) resolution, 350 nits typical brightness, a 5,000:1 contrast ratio, a 60 Hz refresh rate and a 6.5 ms response time. Touch supports up to 50 points with ±2 mm accuracy. Built-in 20 W x 2 speakers, Wi-Fi 6 and Bluetooth 5.4 are built in, and the OPS slot works with built-in OPS power. The unit is rated for 16 hours a day, seven days a week, with Connected Care support for continuous use.

The 86TR3ER suits large meeting rooms, lecture halls and classrooms. It supports Windows 7, 8 and 10, Android, Linux, macOS and Chrome, and includes Screen Share, Wake on LAN and Smart Energy Saving. Compared with the 75TR3ER, it is the larger 86-inch model with a 5,000:1 contrast ratio, against 5,500:1 for the smaller panel.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

350 nits (typical)

Type

Interactive Flat Panel

Key features

Large 4K Display

86-inch screen at 3840 x 2160 (4K UHD) on a 16:9 VA panel.

50-Point Touch

Multi-touch with up to 50 points and ±2 mm accuracy.

Brightness and Contrast

350 nits typical brightness with a 5,000:1 contrast ratio.

Android 16 Platform

8 GB RAM, 128 GB storage and an octa-core processor.

Wireless and Wired LAN

Built-in Wi-Fi 6, Bluetooth 5.4 and Gigabit LAN.

Sensors and Power

Auto brightness sensor, local key operation and Smart Energy Saving.

Connected Care

Connected Care support, with Wake on LAN for remote power-on.

OPS Slot

Accepts a compatible OPS module, with built-in OPS power.

Specifications

General
Compatibility	Windows 7/8/10, Android, Linux, macOS, Chrome
Key Features	Auto brightness sensor, local key operation, Wake on LAN, Smart Energy Saving, Screen Share, PIP and PBP, Connected Care, OPS slot
Model	86TR3ER
Type	Interactive Flat Panel

Display
Aspect Ratio	16:9
Brightness	350 nits (typical)
Color Depth	1.07 billion colors
Color Gamut	NTSC 72%
Contrast Ratio	5,000:1
Orientation	Landscape
Panel Technology	VA
Refresh Rate	60 Hz
Resolution	3840 x 2160 (4K UHD)
Response Time	6.5 ms
Screen Size	86 inch
Touch Accuracy	±2 mm
Touch Points	50-point multi-touch
Viewing Angle	178° x 178°

Performance
Duty Cycle	16 hours/day, 7 days/week
Operating System	Android 16
Processor	Octa-core (A72 × 4 + A53 × 4)
RAM	8 GB
Storage	128 GB

Audio
Speaker Output	20 W x 2

Connectivity
Bluetooth	Bluetooth 5.4
Ethernet	Gigabit LAN
Input Voltage	100–240 V AC, 50/60 Hz
OPS Slot	Yes (OPS slot with built-in OPS power)
Ports	HDMI In × 3, RJ45 LAN × 1, RS232C In × 1, Audio In, Audio Out
Touch USB Ports	USB 2.0 Type-B × 2
USB Ports	USB 3.0 Type-A × 3, USB 2.0 Type-A × 1, USB-C × 1 (65 W PD)
Wi-Fi	802.11 a/b/g/n/ac/ax (Wi-Fi 6)

Physical
Operating Humidity	10% to 90% RH
Operating Temperature	0 to 40 °C
Surface Protection	Anti-reflective, shatter-proof safety glass

Compliance
Certifications	CB, CE, KC, ERP, Energy Star
