LGInteractive Flat PanelsSKU 65TR3BF

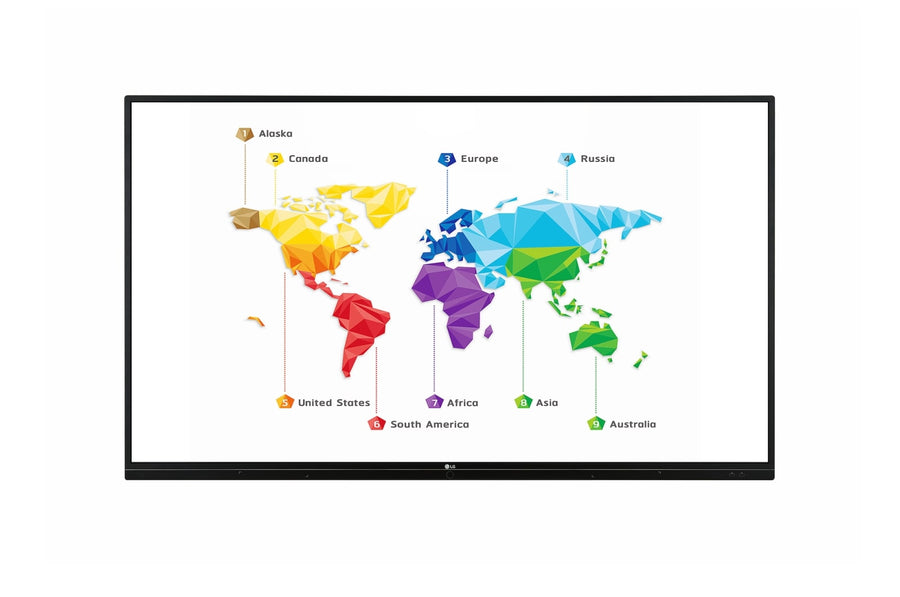

LG CreateBoard 65-inch Interactive Flat Panel – 65TR3BF
The LG 65TR3BF is a 65-inch 4K UHD CreateBoard interactive flat panel with infrared touch for 20 points and built-in writing software. It suits classrooms and meeting rooms that need annotation on one screen. This model is discontinued; Procure.ae can confirm current availability of LG interactive panels in the UAE.
The 65TR3BF uses a 3,840 x 2,160 (4K UHD) IPS panel with 350 nits typical brightness with protection glass, 1,200:1 contrast and 178º x 178º viewing angles. Its infrared touch provides up to 20 touch points and 10 writing points, with 1.5 mm accuracy over USB 2.0. Response time is 9 ms (G to G), and the rated life is 30,000 hours minimum at 16 hours of operation a day. Built-in speakers provide 24 W, made up of two 12 W channels.
The board is landscape-only and is OPS-type compatible for a plug-in computer module. Inputs are HDMI (3), RGB and audio, with USB 2.0 (3) and USB 3.0 (3) ports and two touch outputs for a connected PC. RS232C in and RJ45 control inputs allow room system control, and HDMI (1) with optical and audio outputs is listed. Windows 7, 8 and 10, Android, Linux and macOS are supported, with one-point touch on Windows XP, Linux and macOS. The body measures 1,488 x 897 x 86 mm and weighs 40 kg.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical, with protection ...
Touch Technology
Infrared
- 4K UHD display
- Infrared touch
- Writing points
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3,840 x 2,160 native resolution on a 65-inch 16:9 panel.
02
Infrared touch
IR touch with up to 20 touch points and 1.5 mm accuracy.
03
Writing points
Up to 10 writing points with the two pens supplied.
04
Embedded writing software
Writing software is built in for annotating on screen.
05
Built-in speakers
24 W total output from 12 W + 12 W built-in speakers.
06
Multiple inputs
HDMI (3), RGB, audio in, USB 2.0 (3) and USB 3.0 (3).
07
OPS compatibility
OPS-type compatible for a plug-in computer module.
08
Multi-OS support
Windows 7/8/10, Android, Linux and macOS are listed as supported.
Specifications
33 specificationsGeneral
Key Features4K UHD, infrared touch with 20 points, 10-point writing, embedded writing software, 24 W speakers, OPS-type compatible, Windows and Android support, 16-hour operation
Model65TR3BF
TypeInteractive Flat Panel
What's in the BoxPower cord (3 m), USB cable Type A to Type B (5 m), HDMI cable (3 m), writing pens (2), user manual, quick start guide, carton box, remote control
Display
Aspect Ratio16:9
Bezel Size17.7 mm (top, left, right), 45.7 mm (bottom)
Brightness350 nits (typical, with protection glass)
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size65 inch
Touch Accuracy1.5 mm
Touch Points20-point touch, 10-point writing
Touch Response Time60 ms (Android), 100 ms (Windows)
Touch TechnologyInfrared
Viewing Angle178º x 178º
Performance
Duty Cycle16 hours a day
Operating SystemWindows 7/8/10, Android, Linux, macOS (one-point touch on XP, Linux, Mac)
Audio
Speaker Output24 W (12 W + 12 W), built-in
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS-type compatible
PortsHDMI In × 3, RGB In, Audio In, RS232C In, RJ45 In, HDMI Out × 1, Optical / Audio Out
USB PortsUSB 2.0 × 3 (2 front, 1 bottom for updates), USB 3.0 × 3, Touch Out USB 2.0 Type-B × 2
Power
Power Consumption145 W typical, 275 W maximum
Physical
ColorBlack
Dimensions1488 x 897 x 86 mm (W x H x D)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight40 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE
Downloads
Manufacturer documents for the LG CreateBoard 65-inch Interactive Flat Panel – 65TR3BF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 65TR3BF support pen writing?
Yes. Two writing pens are supplied, and the infrared touch supports up to 20 touch points with up to 10 writing points. Touch accuracy is listed at 1.5 mm, which suits annotation and note-taking during lessons or meetings.
Which operating systems are supported?
Windows 7, 8 and 10, Android, Linux and macOS are listed as supported. One-point touch is listed for Windows XP, Linux and macOS, so confirm the platform before planning multi-touch use on those systems.
Can I wall mount the 65TR3BF?
Yes. It has a 600 x 400 mm VESA mount interface. The body measures 1,488 x 897 x 86 mm and weighs 40 kg, so the bracket must be rated for that load, and the mounting surface should be checked before installation.
What inputs and outputs does it have?
Inputs include HDMI (3), RGB and audio, with USB 2.0 (3) and USB 3.0 (3) ports and two USB Type-B touch outputs. Outputs are HDMI (1) and optical or audio output, which helps route sound to an external system.
Does it support OPS and room control?
Yes. The panel is listed as OPS-type compatible, so a plug-in computer module can be fitted. RS232C in and RJ45 control inputs are also listed for integration with room control systems.
