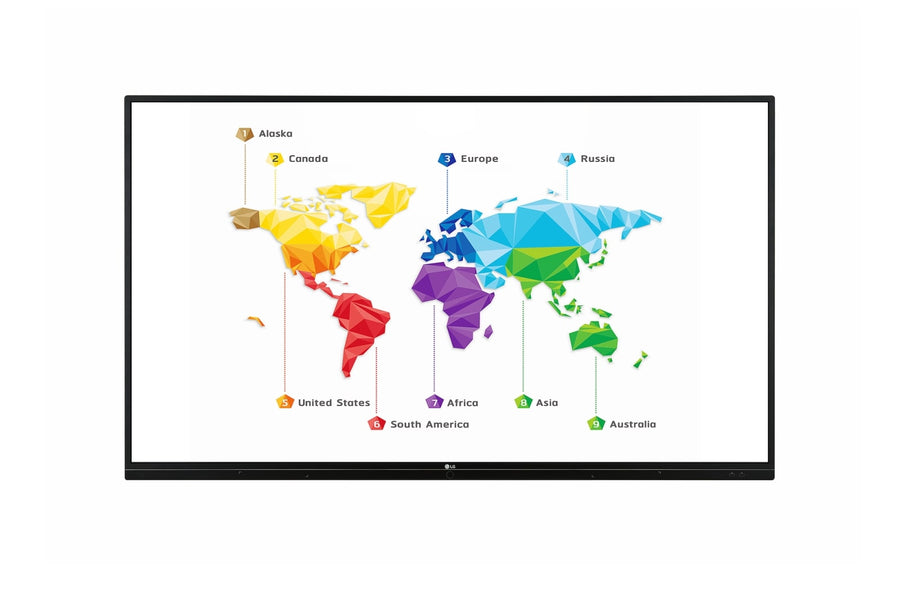

LG CreateBoard 65-inch Interactive Flat Panel – 65TR3BF
The LG 65TR3BF is a 65-inch 4K UHD CreateBoard interactive flat panel with infrared touch for 20 points and built-in writing software. It suits classrooms and meeting rooms that need annotation on one screen. This model is discontinued; Procure.ae can confirm current availability of LG interactive panels in the UAE.
The 65TR3BF uses a 3,840 x 2,160 (4K UHD) IPS panel with 350 nits typical brightness with protection glass, 1,200:1 contrast and 178º x 178º viewing angles. Its infrared touch provides up to 20 touch points and 10 writing points, with 1.5 mm accuracy over USB 2.0. Response time is 9 ms (G to G), and the rated life is 30,000 hours minimum at 16 hours of operation a day. Built-in speakers provide 24 W, made up of two 12 W channels.
The board is landscape-only and is OPS-type compatible for a plug-in computer module. Inputs are HDMI (3), RGB and audio, with USB 2.0 (3) and USB 3.0 (3) ports and two touch outputs for a connected PC. RS232C in and RJ45 control inputs allow room system control, and HDMI (1) with optical and audio outputs is listed. Windows 7, 8 and 10, Android, Linux and macOS are supported, with one-point touch on Windows XP, Linux and macOS. The body measures 1,488 x 897 x 86 mm and weighs 40 kg.
Key features
Specifications
| Key Features | 4K UHD, infrared touch with 20 points, 10-point writing, embedded writing software, 24 W speakers, OPS-type compatible, Windows and Android support, 16-hour operation |
| Model | 65TR3BF |
| Type | Interactive Flat Panel |
| What's in the Box | Power cord (3 m), USB cable Type A to Type B (5 m), HDMI cable (3 m), writing pens (2), user manual, quick start guide, carton box, remote control |
| Aspect Ratio | 16:9 |
| Bezel Size | 17.7 mm (top, left, right), 45.7 mm (bottom) |
| Brightness | 350 nits (typical, with protection glass) |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 9 ms |
| Screen Size | 65 inch |
| Touch Accuracy | 1.5 mm |
| Touch Points | 20-point touch, 10-point writing |
| Touch Response Time | 60 ms (Android), 100 ms (Windows) |
| Touch Technology | Infrared |
| Viewing Angle | 178º x 178º |
| Duty Cycle | 16 hours a day |
| Operating System | Windows 7/8/10, Android, Linux, macOS (one-point touch on XP, Linux, Mac) |
| Speaker Output | 24 W (12 W + 12 W), built-in |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | OPS-type compatible |
| Ports | HDMI In × 3, RGB In, Audio In, RS232C In, RJ45 In, HDMI Out × 1, Optical / Audio Out |
| USB Ports | USB 2.0 × 3 (2 front, 1 bottom for updates), USB 3.0 × 3, Touch Out USB 2.0 Type-B × 2 |
| Power Consumption | 145 W typical, 275 W maximum |
| Color | Black |
| Dimensions | 1488 x 897 x 86 mm (W x H x D) |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 40 kg |
| Certifications | CB / NRTL, FCC Class A, CE |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
