LGDigital SignageSKU 98UH5E

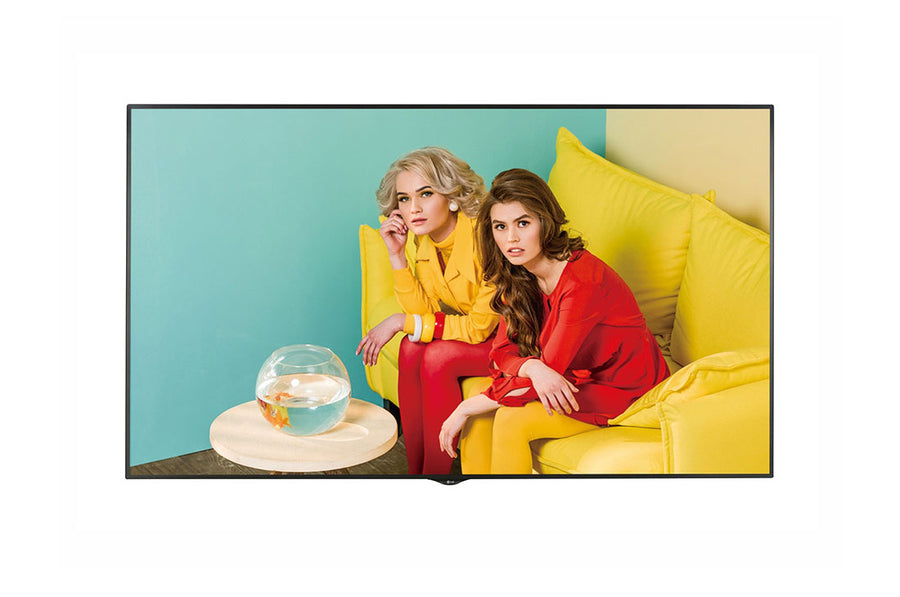

LG 98-inch UHD Digital Signage Display – 98UH5E
The LG 98UH5E is a 98-inch UHD digital signage display rated at 500 nits typical brightness and 120 Hz, for lobbies, showrooms and public venues. It provides 3840 x 2160 resolution with RS232C, RJ45 LAN and IR control inputs, and it is managed with SuperSign CMS. The model is discontinued, and Procure.ae can confirm current availability in the UAE.
The 98UH5E (also listed as 98UH5E-B.AMA) is a 98-inch UHD display with 3840 x 2160 resolution, 500 nits typical brightness and a 120 Hz refresh rate. Its external control set includes RS232C in and out through a 4-pin phone jack, an RJ45 LAN input and an IR input. The display has a 14.9 mm even bezel, and its power draw is 420 W typical and 560 W maximum, falling to 294 W in Smart Energy Saving mode.
The display is managed with SuperSign CMS, with SuperSign Control and Control+ software for control and monitoring. Its built-in power supply runs on 100 to 240 V AC at 50/60 Hz. The 88 kg head weight, 800 x 400 mm VESA interface and 2,342 x 1,386 x 402 mm carton with 123 kg packed weight set the installation requirements. Operating limits are 0 to 40 °C and 10% to 80% humidity.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 98-inch UHD panel
- 120 Hz refresh
- RS232C control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
98-inch UHD panel
3840 x 2160 resolution with 500 nits typical brightness.
02
120 Hz refresh
120 Hz refresh rate listed for the model.
03
RS232C control
RS232C in and out through a 4-pin phone jack.
04
RJ45 LAN and IR
RJ45 LAN input and IR input for network and remote control.
05
Energy use
420 W typical, 560 W maximum and 294 W in Smart Energy Saving mode.
06
SuperSign CMS
SuperSign CMS with SuperSign Control and Control+ software.
07
Even 14.9 mm bezel
Even bezel width of 14.9 mm with an off-bezel design.
08
VESA 800 x 400 mm
Mount interface for wall or floor brackets.
Specifications
22 specificationsGeneral
Key Features98-inch UHD, 500 nits, 120 Hz, RS232C, RJ45 LAN and IR control, 14.9 mm bezel, VESA 800 x 400 mm, SuperSign CMS
Model98UH5E
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, IR/light sensor receiver, DP cable (1.8 m), regulation book, phone to RS232C gender, eye-bolt
Display
Bezel Size14.9 mm (even)
Brightness500 nits
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size98 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotNot compatible
PortsRS232C In/Out (4-pin phone jack), RJ45 LAN In, IR In
Power
Power Consumption420 W typical, 560 W maximum
Power SourceBuilt-in power supply
Physical
Dimensions2191.8 x 1246.8 x 69.4 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions2342 x 1386 x 402 mm
Shipping Weight123 kg
VESA Mount800 x 400 mm
Weight88 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG 98-inch UHD Digital Signage Display – 98UH5E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 98UH5E have an OPS slot?
No. The manufacturer lists the 98UH5E as not OPS Type Compatible. The specifications do not list a built-in media player, so confirm playback options with Procure.ae before planning content delivery.
Can the LG 98UH5E be wall-mounted?
Yes. It uses an 800 x 400 mm VESA mount interface. The head weight is 88 kg, so use a bracket and wall structure rated for that load and have it installed by a qualified installer.
How much power does the LG 98UH5E use?
Typical power draw is 420 W, rising to 560 W at maximum. Smart Energy Saving mode lowers the draw to 294 W. The power supply runs on 100 to 240 V AC at 50/60 Hz, with built-in power.
Which control connections does it have?
It has RS232C in and out through a 4-pin phone jack, an RJ45 LAN input and an IR input. The box includes a phone-to-RS232C gender adapter for serial connection, and the LAN input suits network control.
Does the LG 98UH5E support a video wall?
The manufacturer specifications do not state a tile mode or video wall feature for the 98UH5E. The 14.9 mm even bezel is listed, so confirm multi-screen layout options with Procure.ae before planning a wall.
Can I buy the 98UH5E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
