LGDigital SignageSKU 86UM3E

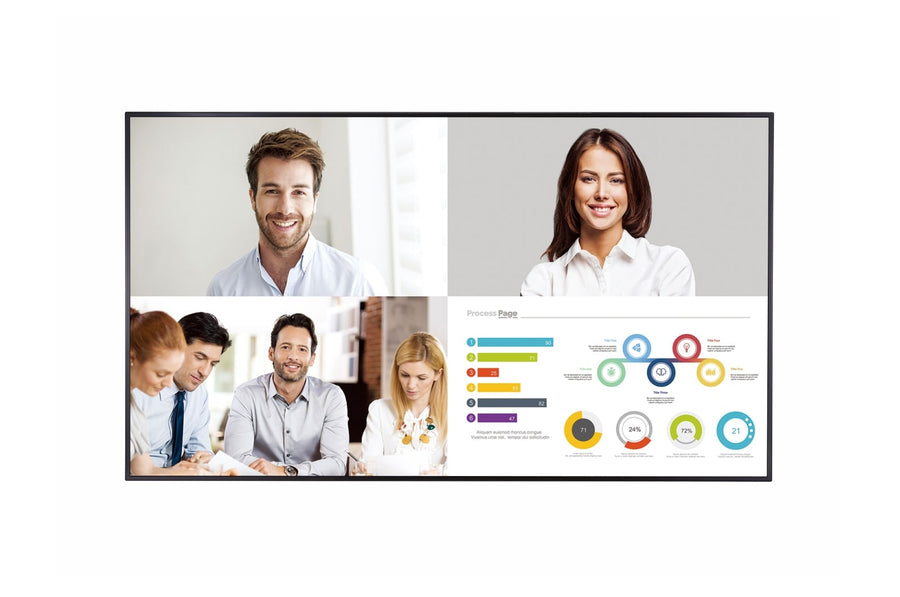

LG 86-inch UHD Digital Signage Display – 86UM3E
The LG 86UM3E is an 86-inch UHD digital signage display with 350 nits typical brightness, for lobbies, showrooms and public information areas. It includes RS232C, RJ45 LAN and IR control inputs, a 600 x 400 mm VESA mount and OPS Type Compatibility. The model is discontinued, and Procure.ae can confirm current availability in the UAE.
The 86UM3E (also listed as 86UM3E-B and 86UM3E-B.AMA) is a 3,840 x 2,160 (UHD) signage display rated at 350 nits typical brightness. External control options include RS232C in and out, RJ45 LAN in and IR in, which support remote control and integration with a management system. The manufacturer lists OPS Type Compatible, so an OPS computer module can be fitted. The display has a 14.3 mm even bezel, and operating limits are 0 to 40 °C and 10% to 80% humidity.
The display is listed with SuperSign CMS as its content management software, with SuperSign Control and Control+ for control and monitoring. Its built-in power supply runs on 100 to 240 V AC at 50/60 Hz. The 2,073 x 1,260 x 292 mm carton and 61.1 kg packed weight are useful for planning delivery and installation. The box includes a remote controller, power cord, DP cable (1.8 m) and a phone-to-RS232C gender adapter.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
- 350-nit UHD display
- External control
- OPS compatibility
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
350-nit UHD display
3840 x 2160 resolution at 350 nits typical brightness.
02
External control
RS232C in and out, RJ45 LAN in and IR in.
03
OPS compatibility
Listed as OPS Type Compatible for an optional OPS module.
04
SuperSign content management
SuperSign CMS with SuperSign Control and Control+ software.
05
Narrow bezel
14.3 mm even bezel width.
06
VESA mounting
600 x 400 mm VESA mount interface for wall or floor brackets.
07
Operating range
0 to 40 °C operating temperature and 10% to 80% humidity.
08
Included accessories
Remote controller, power cord, DP cable (1.8 m) and phone-to-RS232C gender adapter.
Specifications
20 specificationsGeneral
Key Features350 nits, UHD, RS232C, RJ45 LAN and IR control, OPS Type Compatible, SuperSign CMS, 14.3 mm bezel, VESA 600 x 400 mm
Model86UM3E
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, DP cable (1.8 m), regulation book, phone to RS232C gender
Display
Bezel Size14.3 mm (even)
Brightness350 nits
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS Type Compatible
PortsRS232C In/Out, RJ45 LAN In, IR In
Power
Power SourceBuilt-in power supply
Physical
Dimensions1926.2 x 1097.2 x 60.6 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions2073 x 1260 x 292 mm
Shipping Weight61.1 kg
VESA Mount600 x 400 mm
Weight49 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG 86-inch UHD Digital Signage Display – 86UM3E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 86UM3E support an OPS media player?
Yes. The manufacturer lists it as OPS Type Compatible, so an OPS module can be fitted. The specifications do not state OPS power or specific module compatibility, so confirm the module with Procure.ae before ordering.
Can the LG 86UM3E be wall-mounted?
Yes. It has a 600 x 400 mm VESA mount interface. The head weight is 49 kg, so use a wall or floor bracket rated for that load and have it installed by a qualified installer.
How is the LG 86UM3E controlled from a central system?
The display has RS232C in and out, an RJ45 LAN input and an IR input for control. Use RS232C for serial control or the RJ45 LAN input for network control, and confirm the control protocol with Procure.ae before integration.
Which content management software does it support?
The specifications list SuperSign CMS as the content management software, with SuperSign Control and Control+ for control and monitoring. Confirm license requirements with Procure.ae, since the specifications do not state them.
Does the LG 86UM3E support video wall use?
The manufacturer specifications do not state a tile mode or video wall feature for the 86UM3E. The 14.3 mm even bezel is listed, so confirm multi-screen layout options with Procure.ae before planning a wall.
