LGDigital SignageSKU 86UL5Q-M

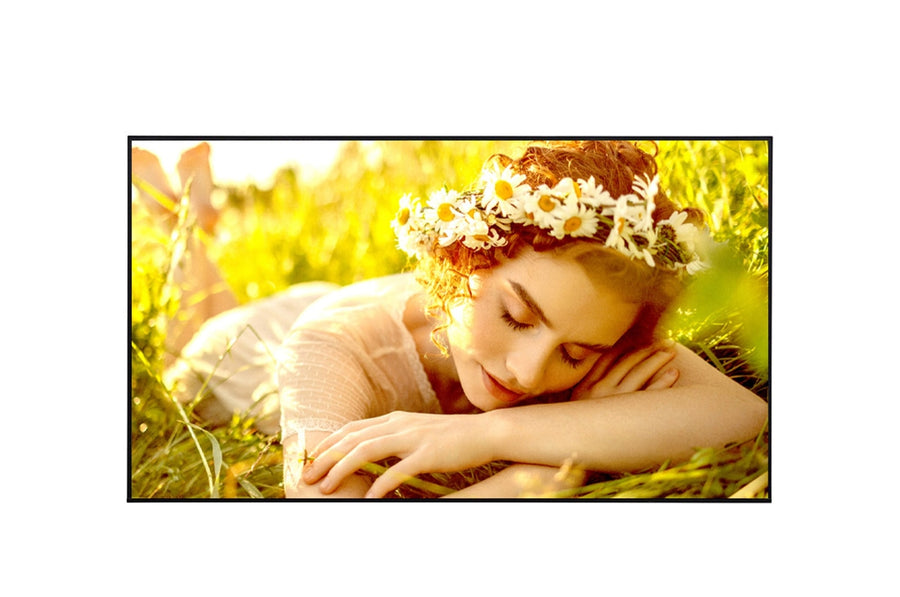

LG 86-inch UHD Digital Signage Display – 86UL5Q-M
The LG 86UL5Q-M is an 86-inch 4K UHD digital signage display for lobbies, retail floors, reception areas and meeting spaces. It provides 3840 x 2160 resolution, 500 nits typical brightness and 24/7 operation, with webOS and SuperSign CMS for content management. Procure.ae supplies the LG 86UL5Q-M in the UAE.
The 86UL5Q-M (also listed as 86UL5Q-M.AMAQ) uses an ADS panel with 3840 x 2160 (UHD) native resolution and 500 nits typical brightness. Contrast is listed at 1,200:1 with 1,000,000:1 dynamic contrast, and the 178° horizontal and vertical viewing angles keep content readable from the side. It shows 1.07 billion colors at DCI 80% gamut with an 8 ms grey-to-grey response time, and it is rated for 24/7 operation in portrait or landscape.
The display runs webOS with SuperSign CMS, SuperSign Control+ and SuperSign WB, plus Mobile CMS and LG Connected Care for remote management. It supports PIP and 4-way PBP split-screen layouts, four video tags and tile mode for video walls. Integration options include SNMP, Crestron Connected, Cisco certification, RS232C, LAN and HDMI-CEC control, The manufacturer's specifications do not state the VESA mount pattern for this model.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- 500-nit brightness
- Wide viewing angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 native resolution on an ADS panel.
02
500-nit brightness
500 nits typical brightness for indoor signage.
03
Wide viewing angle
178° horizontal and 178° vertical viewing angles.
04
webOS platform
webOS 6.1 with SuperSign CMS and Mobile CMS support.
05
Multi-screen layouts
PIP and 4-way PBP split-screen modes with 4 video tags.
06
Video wall tile mode
Tile Mode Setting with screen rotation for multi-display walls.
07
Remote management
SNMP, Crestron Connected, Wake on LAN and LAN control.
08
Tilt support
Tilt of 15 degrees is listed for face-up and face-down mounting.
Specifications
27 specificationsGeneral
Key FeatureswebOS, PIP and 4-way PBP, Tile mode, SuperSign CMS, SNMP, Crestron Connected, Smart Energy Saving, Built-in speakers
Model86UL5Q-M
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.1
Storage8 GB
Audio
Speaker Output10 W x 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS232C In/Out, RJ45 LAN In, USB 2.0 × 2, Audio Out
Wi-FiBuilt-in
Power
Standby Power0.5 W
Physical
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Tilt15° (face up and face down)
Compliance
CertificationsCB, FCC Class B, CE, KC, Cisco certified
Downloads
Manufacturer documents for the LG 86-inch UHD Digital Signage Display – 86UL5Q-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86UL5Q-M suitable for 24/7 operation?
Yes. The manufacturer lists 24/7 operation hours for the 86UL5Q-M, so it suits continuous-use spaces. Auto Brightness Sensor, PM mode and Smart Energy Saving are also included to manage power use and brightness.
Can the LG 86UL5Q-M be wall-mounted?
The manufacturer's specifications do not state the VESA mount pattern for this model. Confirm the mount pattern with Procure.ae before ordering a bracket, and use a bracket rated for the display weight.
Does it support portrait orientation?
Yes. The manufacturer lists portrait and landscape operation, along with screen rotation and external input rotation for orientation changes. Portrait suits menu boards and narrow corridors, while landscape suits wide lobby walls.
Can several 86UL5Q-M units form a video wall?
Yes. Tile Mode Setting is listed for multi-display walls, and Setting Data Cloning is listed for copying settings between units. Video wall sizing depends on the number of units and room layout, so plan the wall layout and cable routing before installation.
How are multiple displays managed remotely?
The 86UL5Q-M supports SuperSign CMS, SuperSign Control+, Group Manager, SNMP, Crestron Connected and Connected Care. These cover content scheduling, group control and status alerts across several screens. Scheduled content and status reporting help a team keep several screens running.
