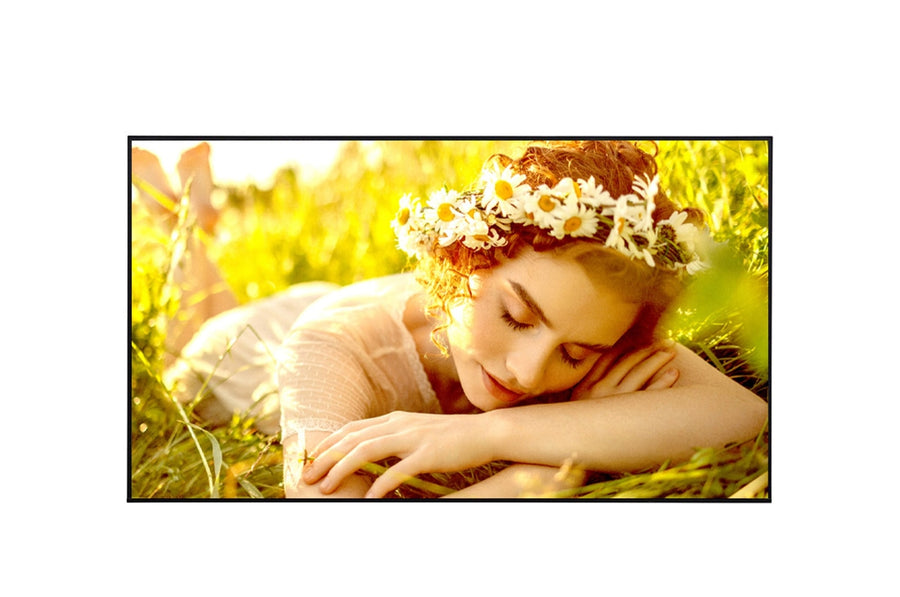

LG 86-inch UHD Digital Signage Display – 86UL5Q-M

LG 86-inch UHD Digital Signage Display – 86UL5Q-M

The LG 86UL5Q-M is an 86-inch 4K UHD digital signage display for lobbies, retail floors, reception areas and meeting spaces. It provides 3840 x 2160 resolution, 500 nits typical brightness and 24/7 operation, with webOS and SuperSign CMS for content management. Procure.ae supplies the LG 86UL5Q-M in the UAE.

The 86UL5Q-M (also listed as 86UL5Q-M.AMAQ) uses an ADS panel with 3840 x 2160 (UHD) native resolution and 500 nits typical brightness. Contrast is listed at 1,200:1 with 1,000,000:1 dynamic contrast, and the 178° horizontal and vertical viewing angles keep content readable from the side. It shows 1.07 billion colors at DCI 80% gamut with an 8 ms grey-to-grey response time, and it is rated for 24/7 operation in portrait or landscape.

The display runs webOS with SuperSign CMS, SuperSign Control+ and SuperSign WB, plus Mobile CMS and LG Connected Care for remote management. It supports PIP and 4-way PBP split-screen layouts, four video tags and tile mode for video walls. Integration options include SNMP, Crestron Connected, Cisco certification, RS232C, LAN and HDMI-CEC control, The manufacturer's specifications do not state the VESA mount pattern for this model.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display

Key features

01
4K UHD panel
3840 x 2160 native resolution on an ADS panel.
02
500-nit brightness
500 nits typical brightness for indoor signage.
03
Wide viewing angle
178° horizontal and 178° vertical viewing angles.
04
webOS platform
webOS 6.1 with SuperSign CMS and Mobile CMS support.
05
Multi-screen layouts
PIP and 4-way PBP split-screen modes with 4 video tags.
06
Video wall tile mode
Tile Mode Setting with screen rotation for multi-display walls.
07
Remote management
SNMP, Crestron Connected, Wake on LAN and LAN control.
08
Tilt support
Tilt of 15 degrees is listed for face-up and face-down mounting.

Specifications

General
Key FeatureswebOS, PIP and 4-way PBP, Tile mode, SuperSign CMS, SNMP, Crestron Connected, Smart Energy Saving, Built-in speakers
Model86UL5Q-M
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.1
Storage8 GB
Audio
Speaker Output10 W x 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS232C In/Out, RJ45 LAN In, USB 2.0 × 2, Audio Out
Wi-FiBuilt-in
Power
Standby Power0.5 W
Physical
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Tilt15° (face up and face down)
Compliance
CertificationsCB, FCC Class B, CE, KC, Cisco certified
