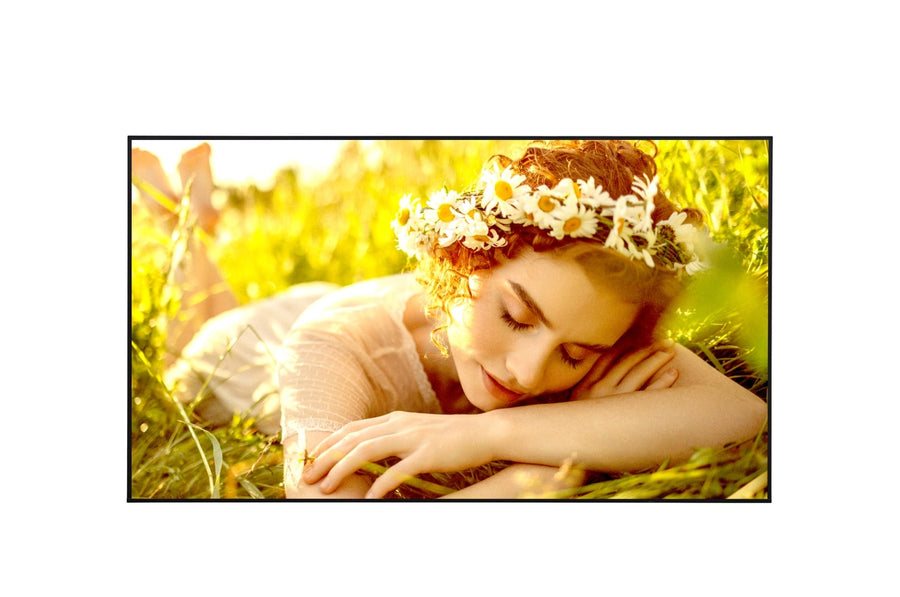

LG 86-inch UHD Digital Signage Display – 86UL5Q-E
The LG 86UL5Q-E is an 86-inch 4K UHD digital signage display for lobbies, retail floors, reception areas and meeting spaces. It provides 3840 x 2160 resolution, 500 nits typical brightness and 24/7 operation, with webOS 6.1 and SuperSign CMS for content management. Procure.ae supplies the LG 86UL5Q-E in the UAE.
The 86UL5Q-E (also listed as 86UL5Q-EP) uses an ADS panel with 3840 x 2160 (UHD) native resolution and 500 nits typical brightness. Contrast is listed at 1,200:1 with 1,000,000:1 dynamic contrast, and the 178° horizontal and vertical viewing angles keep content readable from the side. The panel shows 1.07 billion colors at DCI 80% colour gamut with an 8 ms grey-to-grey response time, and it is rated for 24/7 operation in portrait or landscape.
The display runs webOS 6.1 with SuperSign CMS, SuperSign Control+ and SuperSign Cloud, so content can be scheduled and monitored remotely. It supports PIP and 4-way PBP split-screen layouts, video tags and tile mode for video walls. Integration options include SNMP, Crestron Connected, RS232C, LAN and HDMI-CEC control, with a 600 x 400 mm VESA mount interface for wall installation.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- 500-nit brightness
- Wide viewing angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 native resolution on an ADS panel.
02
500-nit brightness
500 nits typical brightness for indoor signage.
03
Wide viewing angle
178° horizontal and 178° vertical viewing angles.
04
webOS 6.1 platform
Built-in webOS 6.1 with SuperSign CMS and Cloud support.
05
Multi-screen layouts
PIP and 4-way PBP split-screen modes with 4 video tags.
06
Video wall tile mode
Tile Mode Setting with screen rotation for multi-display walls.
07
Remote management
SNMP, Crestron Connected, Wake on LAN and LAN control.
08
Energy saving
Smart Energy Saving mode draws 154 W at the 70% setting.
Specifications
30 specificationsGeneral
Key FeatureswebOS 6.1, PIP and 4-way PBP, Tile mode, SuperSign CMS, SNMP, Crestron Connected, Smart Energy Saving, Built-in speakers
Model86UL5Q-E
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.1
Storage8 GB
Audio
Speaker Output10 W x 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS232C In/Out, RJ45 LAN In, USB 2.0 × 2, Audio Out
Wi-FiBuilt-in
Power
Power Consumption154 W (Smart Energy Saving, 70%)
Standby Power0.5 W
Physical
Dimensions1926.6 x 1098 x 60 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight31.8 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC
Downloads
Manufacturer documents for the LG 86-inch UHD Digital Signage Display – 86UL5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86UL5Q-E suitable for 24/7 operation?
Yes. The manufacturer lists 24/7 operation hours for the 86UL5Q-E, so it suits continuous-use spaces. Smart Energy Saving, PM mode and an Auto Brightness Sensor are also included to manage power use and brightness.
Can the LG 86UL5Q-E be wall-mounted?
Yes. It has a 600 x 400 mm VESA standard mount interface. The manufacturer does not list a stand weight, so use a wall or ceiling bracket rated for the 31.8 kg display weight.
Does it support portrait orientation?
Yes. The manufacturer lists portrait and landscape operation, along with screen rotation and external input rotation for orientation changes. Portrait suits menu boards and narrow corridors, while landscape suits wide lobby walls and presentation use.
Can several 86UL5Q-E units form a video wall?
Yes. Tile Mode Setting is listed for multi-display walls. Backlight Sync is listed as not supported, so brightness matching across units must be set manually. Plan the wall layout and cable routing before installation.
How are multiple displays managed remotely?
The 86UL5Q-E supports SuperSign CMS, SuperSign Control+, Group Manager, SNMP and Crestron Connected. These cover content scheduling, group control and status alerts across several screens. Remote alerts help identify a failed screen quickly.
