LG 86-inch UHD Digital Signage Display – 86UL5Q-E — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
LG · 86UL5Q-E · Digital Signage

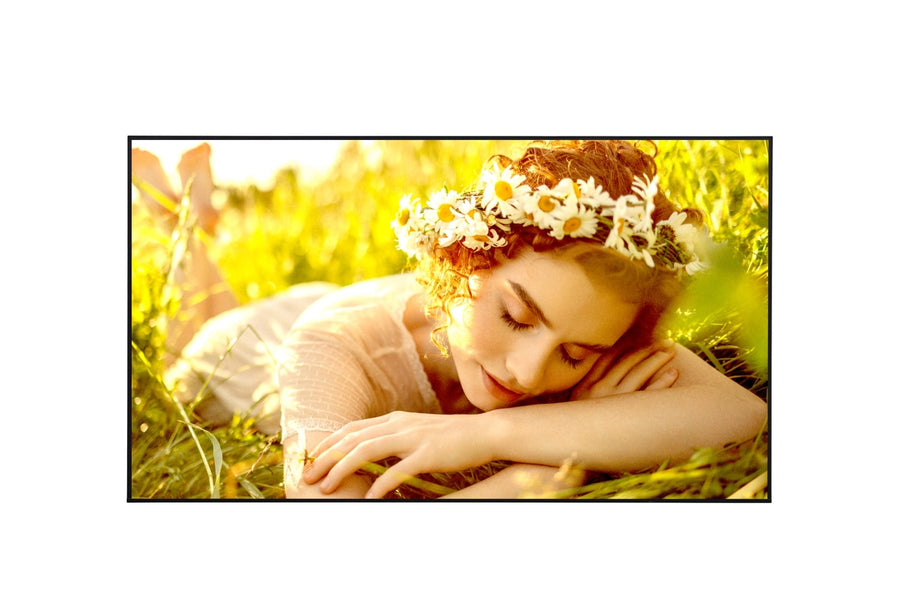

LG 86-inch UHD Digital Signage Display – 86UL5Q-E

LG 86-inch UHD Digital Signage Display – 86UL5Q-E

The LG 86UL5Q-E is an 86-inch 4K UHD digital signage display for lobbies, retail floors, reception areas and meeting spaces. It provides 3840 x 2160 resolution, 500 nits typical brightness and 24/7 operation, with webOS 6.1 and SuperSign CMS for content management. Procure.ae supplies the LG 86UL5Q-E in the UAE.

The 86UL5Q-E (also listed as 86UL5Q-EP) uses an ADS panel with 3840 x 2160 (UHD) native resolution and 500 nits typical brightness. Contrast is listed at 1,200:1 with 1,000,000:1 dynamic contrast, and the 178° horizontal and vertical viewing angles keep content readable from the side. The panel shows 1.07 billion colors at DCI 80% colour gamut with an 8 ms grey-to-grey response time, and it is rated for 24/7 operation in portrait or landscape.

The display runs webOS 6.1 with SuperSign CMS, SuperSign Control+ and SuperSign Cloud, so content can be scheduled and monitored remotely. It supports PIP and 4-way PBP split-screen layouts, video tags and tile mode for video walls. Integration options include SNMP, Crestron Connected, RS232C, LAN and HDMI-CEC control, with a 600 x 400 mm VESA mount interface for wall installation.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
Weight
31.8 kg

Key features

01
4K UHD panel
3840 x 2160 native resolution on an ADS panel.
02
500-nit brightness
500 nits typical brightness for indoor signage.
03
Wide viewing angle
178° horizontal and 178° vertical viewing angles.
04
webOS 6.1 platform
Built-in webOS 6.1 with SuperSign CMS and Cloud support.
05
Multi-screen layouts
PIP and 4-way PBP split-screen modes with 4 video tags.
06
Video wall tile mode
Tile Mode Setting with screen rotation for multi-display walls.
07
Remote management
SNMP, Crestron Connected, Wake on LAN and LAN control.
08
Energy saving
Smart Energy Saving mode draws 154 W at the 70% setting.

Specifications

General
Key FeatureswebOS 6.1, PIP and 4-way PBP, Tile mode, SuperSign CMS, SNMP, Crestron Connected, Smart Energy Saving, Built-in speakers
Model86UL5Q-E
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.1
Storage8 GB
Audio
Speaker Output10 W x 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS232C In/Out, RJ45 LAN In, USB 2.0 × 2, Audio Out
Wi-FiBuilt-in
Power
Power Consumption154 W (Smart Energy Saving, 70%)
Standby Power0.5 W
Physical
Dimensions1926.6 x 1098 x 60 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight31.8 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC
QR code to LG 86-inch UHD Digital Signage Display – 86UL5Q-E on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
