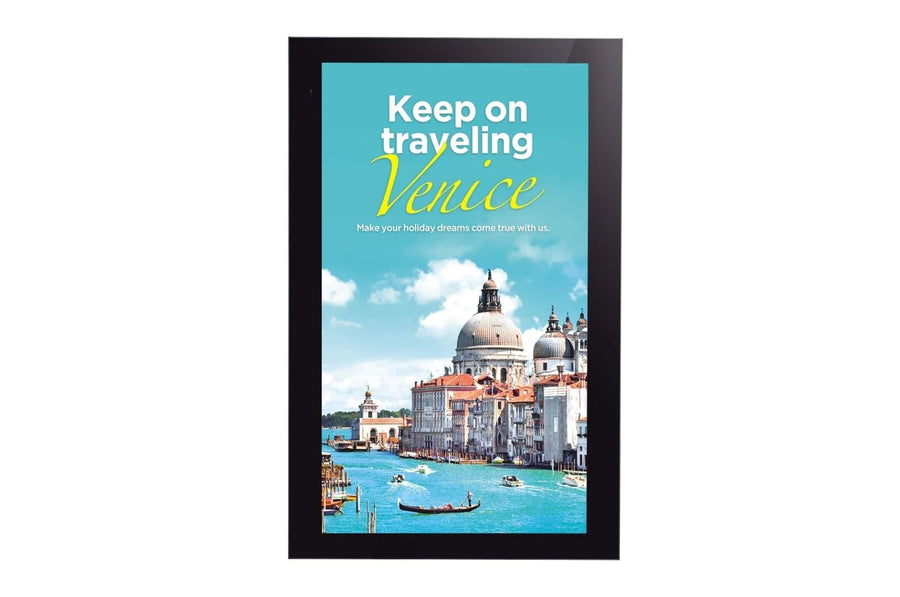

LG 86-inch 4K UHD Outdoor Digital Signage Display – 86XE3FS
The LG 86XE3FS is an 86-inch 4K UHD outdoor digital signage display for sunlit and high-ambient-light locations. It has a 120 Hz IPS panel with 3,000 nits typical brightness, a 1,200:1 contrast ratio and 24/7 operation. Procure.ae supplies the LG 86XE3FS across the UAE.
The 86XE3FS uses a 3,840 x 2,160 IPS panel with 3,000 nits typical brightness (2,800 nits minimum) and a 1,200:1 typical contrast ratio, with 500,000:1 dynamic contrast. Its 120 Hz refresh rate and 8 ms (G to G) response time suit fast video and motion content. The panel shows 1.07 billion colors across an NTSC 68% gamut, with a 178° x 178° viewing angle. The tempered glass is shatter-proof and anti-reflective, the power board is conformal coated, and the display supports direct sunlight viewing.
Procure.ae can supply the 86XE3FS for outdoor screens, storefront and entrance displays, and large sunlit spaces. It runs webOS 3.0 with SuperSign CMS and SuperSign Control+, and it supports Connected Care for monitoring. Management features include local content scheduling, video tag (2), screen and external input rotation, tile mode setting, fail over, brightness compensation and wake on LAN. The model has no built-in Wi-Fi, so connect it by RJ45 LAN.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3,000 nits (typical), 2,800 nits (m...
Type
Digital Signage Display
- 4K UHD at 120 Hz
- High brightness
- Anti-reflective glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD at 120 Hz
3,840 x 2,160 IPS panel with a 120 Hz refresh rate.
02
High brightness
3,000 nits typical and 2,800 nits minimum for sunlit spaces.
03
Anti-reflective glass
Tempered, shatter-proof glass that reduces glare in bright light.
04
Direct sunlight viewing
Designed for direct sunlight use with a conformal-coated power board and power protection.
05
Remote management
SuperSign CMS, SuperSign Control+ and Connected Care on webOS 3.0.
06
Video wall support
Tile mode setting, screen rotation and video tag (2).
07
Ports
HDMI In × 1, DisplayPort In × 1, DVI-D In × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 Type A × 1, IR In.
08
Continuous operation
Rated for 24/7 operation with a built-in fan and temperature, humidity and brightness sensors.
Specifications
25 specificationsGeneral
Key Features4K UHD at 120 Hz, 3,000-nit typical brightness, IP56 rating, Anti-reflective glass, Direct sunlight viewing, SuperSign CMS, Connected Care, Brightness compensation
Model86XE3FS
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size101 mm top and bottom, 135 mm sides
Brightness3,000 nits (typical), 2,800 nits (minimum)
Color Depth1.07 billion colors
Color GamutNTSC 68%
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 3.0
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DisplayPort In × 1, DVI-D In × 1, RJ45 LAN In × 1, RJ45 LAN Out × 1, RS232C In/Out, USB 2.0 Type A × 1, IR In, External Speaker Out
Power
Standby Power0.5 W
Physical
Dimensions1338 x 2100 x 187 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C (with solar), 0 to 50 °C (without solar)
Weight276 kg
Compliance
IP RatingIP56
Downloads
Manufacturer documents for the LG 86-inch 4K UHD Outdoor Digital Signage Display – 86XE3FS — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86XE3FS suitable for outdoor use?
Yes, it is built for outdoor and high-ambient-light use, with 3,000 nits typical brightness and anti-reflective tempered glass. The manufacturer lists an IP56 rating, a P2A degree of protection and conformal coating, so confirm the enclosure and mounting for the site with Procure.ae.
What resolution and brightness does the LG 86XE3FS have?
It has a 3,840 x 2,160 (UHD) IPS panel with 3,000 nits typical brightness and 2,800 nits minimum. The contrast ratio is 1,200:1 typical, with 500,000:1 dynamic contrast, and the refresh rate is 120 Hz.
What is the operating temperature of the LG 86XE3FS?
The manufacturer lists 0 to 40 °C with solar and 0 to 50 °C without solar, at 10% to 80% relative humidity. Confirm the operating environment for the exact site with Procure.ae before installation.
Can the LG 86XE3FS be used in a video wall?
Yes. The display supports tile mode setting and screen rotation, and it works in portrait or landscape orientation. Confirm the wall layout, bezel alignment and controller requirements with Procure.ae before ordering.
How is the LG 86XE3FS managed remotely?
It runs webOS 3.0 and supports SuperSign CMS, SuperSign Control+ and Connected Care, plus SNMP, Wake on LAN and RS232C control. Remote scheduling depends on the network and the software chosen for the site.
