LGDigital SignageSKU 86UH7Q-E

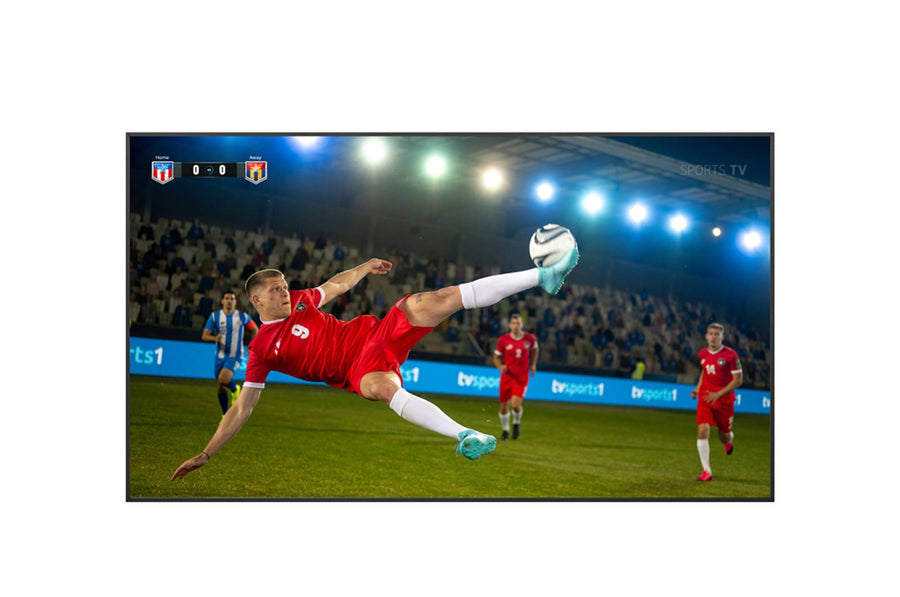

LG 86-inch 4K UHD Digital Signage Display – 86UH7Q-E
The LG 86UH7Q-E is an 86-inch 4K UHD digital signage display for lobbies, retail, corporate reception and large venue walls. It offers 700 nit typical brightness, 24/7 operation and built-in webOS 8.0 with local content scheduling. Procure.ae supplies the LG 86UH7Q-E across the UAE.
The 86UH7Q-E uses an ADS panel with a 3840 x 2160 native resolution, 16:9 aspect ratio and 60 Hz refresh rate. Typical brightness is 700 nits and typical contrast is 1,200:1, with a dynamic contrast figure of 1,000,000:1. The panel covers 95% of BT.709 colour gamut, displays 1.07 billion colours and has an 8 ms grey-to-grey response time. Viewing angles are 178 degrees horizontally and vertically. The display runs 24 hours a day, 7 days a week, and can be used in landscape or portrait orientation.
The display suits indoor signage installations that need to run continuously, including video walls built with tile mode. It runs webOS 8.0 with 16 GB of internal memory, built-in Wi-Fi and Bluetooth, and supports SuperSign CMS, SuperSign Control+ and Signage 365 Care management. Network control includes SNMP, Wake on LAN and RS232C, and the unit is Cisco and Crestron certified. The head weighs 53.0 kg and mounts on a 600 x 400 mm VESA interface.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits (typical)
Type
Digital Signage Display
- Large 4K panel
- Signage brightness
- Video wall ready
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large 4K panel
3840 x 2160 resolution on an 86-inch ADS panel
02
Signage brightness
700 nits typical for indoor display areas
03
Video wall ready
tile mode setting for multi-panel installations
04
Multi-screen layouts
four-screen PBP and video tags
05
Built-in webOS
webOS 8.0 with 16 GB internal memory
06
Remote management
SNMP, Wake on LAN and Crestron Connected
07
Continuous operation
rated for 24/7 use
Specifications
31 specificationsGeneral
Key FeaturesFour-screen PBP, screen share, local content scheduling, video wall tile mode, Crestron Connected, Cisco certified, HDMI-CEC, Wake on LAN
Model86UH7Q-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, RS232C gender adapter, cable holders (6), cable holder (7-pin)
Display
Aspect Ratio16:9
Bezel Size13.4 mm (even)
Brightness700 nits (typical)
Color Depth1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,200:1 (typical)
OrientationLandscape and portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size86 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle24/7
Operating SystemwebOS 8.0
Storage16 GB (eMMC)
Audio
Audio OutYes
Speaker Output10 W x 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In x 3, DP In x 1, RS232C In/Out, RJ45 LAN In x 1, USB 2.0 x 2, IR In
Power
Power Consumption147 W (smart energy saving, 70%)
Physical
Dimensions1928.8 x 1099.8 x 29.7 mm (without IR and handle)
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight53.0 kg (head only)
Compliance
IP RatingIP5X
Downloads
Manufacturer documents for the LG 86-inch 4K UHD Digital Signage Display – 86UH7Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 86UH7Q-E?
The LG 86UH7Q-E has an 86-inch screen with a 3840 x 2160 (4K UHD) native resolution and a 16:9 aspect ratio.
Can the LG 86UH7Q-E run 24/7 in a lobby or retail space?
Yes. The manufacturer lists 24/7 operation for the 86UH7Q-E, and its 700 nit typical brightness suits well-lit indoor areas.
Can it be used to build a video wall?
Yes. The display includes a tile mode setting for multi-panel installations, and it can be controlled over RS232C or RJ45 LAN for synchronised playback.
What mounting does the LG 86UH7Q-E use?
It uses a 600 x 400 mm VESA standard mounting interface. The head weighs 53.0 kg, so the wall or stand must be rated for that load.
Which content management systems does it support?
The display supports LG SuperSign CMS, SuperSign Control+, SuperSign WB and Signage 365 Care, and it has local content scheduling, group management and Wake on LAN.
