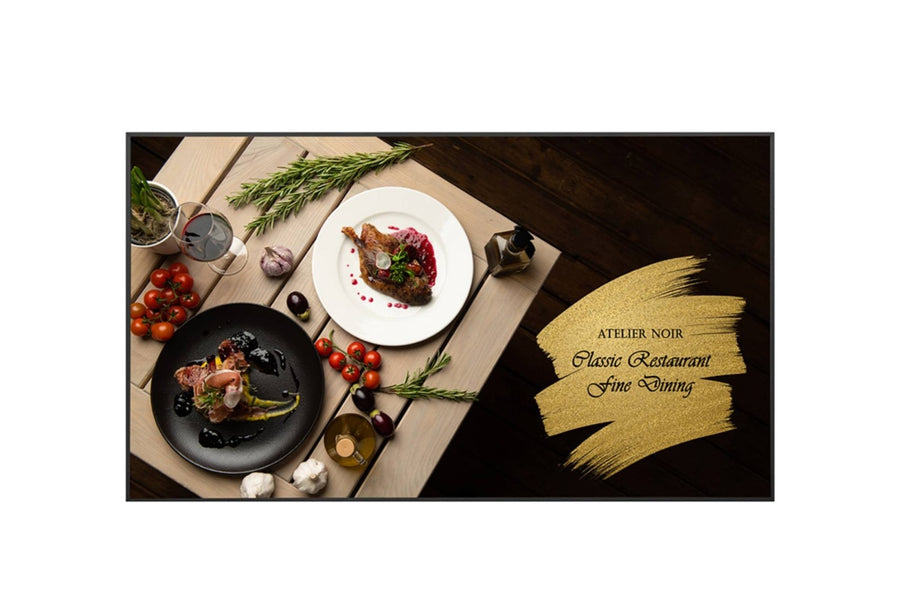

LG 75-inch UHD Digital Signage Display – 75UH5Q-E
The LG 75UH5Q-E is a 75-inch 4K UHD digital signage display with an ADS panel, 500 nits typical brightness and built-in webOS 8.0. It suits retail, corporate and hospitality screens that need central scheduling and remote monitoring. Procure.ae supplies the LG 75UH5Q-E in the UAE with quotes, delivery and installation.
The LG 75UH5Q-E shows 3840 x 2160 (4K UHD) resolution on a 75-inch 16:9 ADS panel. Typical brightness is 500 nits, the typical contrast ratio is 1,200:1 and the dynamic contrast rating is 1,000,000:1. The colour gamut is BT.709 95% with 1.07 billion colours, and response time is 8 ms (grey to grey). The display runs webOS 8.0 with built-in Wi-Fi and Bluetooth, 16 GB of internal eMMC storage and two 10 W speakers, and it is rated for 24/7 operation. It is also listed under the code 75UH5Q-E.AMAD.
The 75UH5Q-E suits lobbies, retail floors and meeting areas where content is scheduled and monitored remotely. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and Connected Care, along with Cisco and Crestron connected listings. Inputs are three HDMI and one DisplayPort, with RS232C in and out, RJ45 LAN and IR control. It uses a 600 x 400 mm VESA interface, and the manufacturer lists a 12.9 mm even bezel.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- webOS 8.0 platform
- 4K UHD ADS panel
- Contrast and colour
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
Runs webOS 8.0 with built-in Wi-Fi and Bluetooth.
02
4K UHD ADS panel
3840 x 2160 resolution on a 75-inch ADS panel with 500 nits typical brightness.
03
Contrast and colour
1,200:1 typical contrast ratio and BT.709 95% colour gamut.
04
Built-in speakers
Two built-in 10 W speakers.
05
Content management
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS are listed.
06
Network integration
Cisco and Crestron connected listings, Connected Care and Wake on LAN.
07
Multi-screen layouts
PIP, 4-way PBP and tile mode settings.
08
Control and power
RS232C, RJ45 LAN and IR input with 0.5 W power-off consumption.
Specifications
34 specificationsGeneral
CompatibilitySuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, Connected Care
Key FeatureswebOS 8.0, 4K UHD ADS panel, 500 nits, 1,200:1 contrast, SuperSign CMS compatible, built-in Wi-Fi and Bluetooth, 10 W x 2 speakers, tile mode
Model75UH5Q-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holder (6)
Display
Aspect Ratio16:9
Bezel Size12.9 mm (even)
Brightness500 nits
Color Depth1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 8.0
Storage16 GB (eMMC)
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DP In × 1, RS232C In/Out, RJ45 (LAN) In, IR In, USB 2.0 × 2, Audio Out
Wi-FiBuilt-in
Power
Standby Power0.5 W
Physical
ColorBlack
Dimensions1679.5 x 958.7 x 29.7 mm (without IR and handle)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US only)
IP RatingIP5X
Downloads
Manufacturer documents for the LG 75-inch UHD Digital Signage Display – 75UH5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the LG 75UH5Q-E?
It is a 75-inch 4K UHD (3840 x 2160) signage display with an ADS panel, 500 nits typical brightness, a 1,200:1 typical contrast ratio and an 8 ms response time. It runs webOS 8.0 and supports portrait and landscape orientation.
Does the LG 75UH5Q-E have built-in Wi-Fi?
Yes. The manufacturer lists built-in Wi-Fi and Bluetooth, so no separate adapter is needed. The display also has 16 GB of internal eMMC storage and two 10 W built-in speakers.
Can the LG 75UH5Q-E be managed remotely?
Yes. The display supports SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS, with RJ45 LAN control, RS232C serial control and Wake on LAN. Crestron connected and Cisco listings are also included in the manufacturer's specifications.
Which VESA mount does the LG 75UH5Q-E need?
The LG 75UH5Q-E uses a 600 x 400 mm VESA standard mount interface. The manufacturer lists a 12.9 mm even bezel and a monitor size of 1679.5 x 958.7 x 29.7 mm without IR and handle, so check the mount's load rating before installation.
Is the LG 75UH5Q-E rated for 24/7 operation?
Yes. The manufacturer lists operation hours as 24/7, with an operating temperature of 0 to 40 °C and humidity of 10% to 80%. Power draw in standby is listed at 0.5 W.
