LGDigital SignageSKU 75UH5E

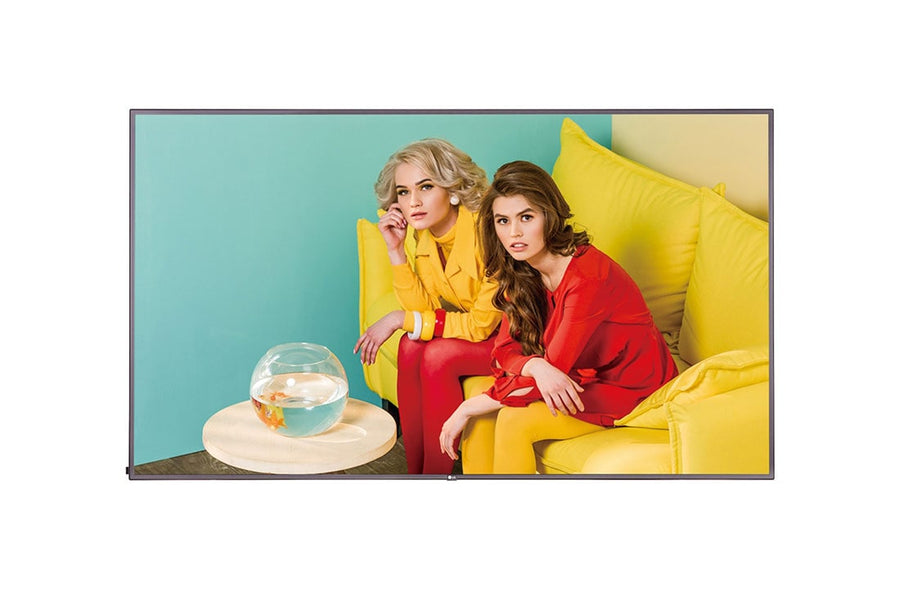

LG 75-inch UHD Digital Signage Display – 75UH5E
The LG 75UH5E is a discontinued 75-inch 4K UHD digital signage display with 500 nits typical brightness and a 120 Hz refresh rate. It suits large-format retail, corporate and hospitality signage managed with SuperSign software. Procure.ae supplies LG signage displays across the UAE and can confirm current availability of this model.
The LG 75UH5E, also listed as 75UH5E-B and 75UH5E-B.AMA, provides 3840 x 2160 (UHD) resolution on a 75-inch screen with 500 nits typical brightness and a 120 Hz refresh rate. It is rated for 0 to 40 °C operation and 10% to 80% humidity. Typical power consumption is 180 W and maximum is 260 W. The manufacturer lists a 14.9 mm even off-bezel design and a 600 x 400 mm VESA interface, and the head weighs 41.5 kg.
The 75UH5E fits large-format signage in lobbies, retail floors and showrooms where one 75-inch screen carries the message. It has RS232C in and out, an RJ45 LAN input and an IR input, and it is OPS type compatible. The manufacturer lists it with SuperSign CMS and SuperSign Control/Control+ software. The box includes a 1.8 m DisplayPort cable, and the model carries ErP and Energy Star 8.0 listings.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD resolution
- 500 nits brightness
- 120 Hz refresh rate
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 75-inch screen.
02
500 nits brightness
500 nits typical brightness on the 75-inch panel.
03
120 Hz refresh rate
120 Hz refresh rate on the 75-inch panel.
04
OPS type compatible
Listed by the manufacturer as OPS type compatible.
05
External control
RS232C in and out, RJ45 LAN input and IR input.
06
SuperSign software
Listed with SuperSign CMS and SuperSign Control/Control+.
07
Large-format mounting
600 x 400 mm VESA interface and a 41.5 kg head weight.
08
Energy and safety
Energy Star 8.0, ErP and CB / NRTL safety listings.
Specifications
20 specificationsGeneral
CompatibilitySuperSign CMS, SuperSign Control, SuperSign Control+
Key Features4K UHD, 500 nits, 120 Hz refresh rate, RS232C and LAN control, SuperSign CMS compatible, OPS type compatible, VESA 600 x 400 mm, Energy Star 8.0
Model75UH5E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, DP cable (1.8 m), regulation book, phone to RS232C gender adapter
Display
Bezel Size14.9 mm (even, off-bezel)
Brightness500 nits
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS type compatible
PortsRS232C In/Out, RJ45 (LAN) In, IR In
Power
Power Consumption180 W (typical) / 260 W (maximum)
Physical
Dimensions1682.4 x 960.3 x 57.9 mm (without logo and handle)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight41.5 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP (EU), Energy Star 8.0
Downloads
Manufacturer documents for the LG 75-inch UHD Digital Signage Display – 75UH5E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the LG 75UH5E?
It is a 75-inch 4K UHD (3840 x 2160) signage display with 500 nits typical brightness and a 120 Hz refresh rate. It has a 600 x 400 mm VESA interface, RS232C and LAN control, and OPS type compatibility.
Is the LG 75UH5E suitable for a lobby or showroom?
Yes. It is a 75-inch display with 500 nits typical brightness, a 120 Hz refresh rate and a 14.9 mm even bezel, which suits lobbies, showrooms and retail floors. Quotes are available via WhatsApp or email, and the team can advise on layout and mounting for your space.
Does the LG 75UH5E support OPS?
Yes. The manufacturer lists the display as OPS type compatible. Check the OPS module and power requirements with the installer before ordering. OPS type compatibility is listed in the manufacturer's specifications for the 75UH5E.
What wall mount does the LG 75UH5E need?
The LG 75UH5E uses a 600 x 400 mm VESA mount interface. The head weighs 41.5 kg and the monitor measures 1682.4 x 960.3 x 57.9 mm, so the mount must be rated for that load and size.
How is the LG 75UH5E controlled?
It has RS232C in and out, an RJ45 LAN input and an IR input. The manufacturer lists SuperSign CMS for content and SuperSign Control and Control+ for control and monitoring, so it can be managed from a central system.
Can I buy the 75UH5E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
