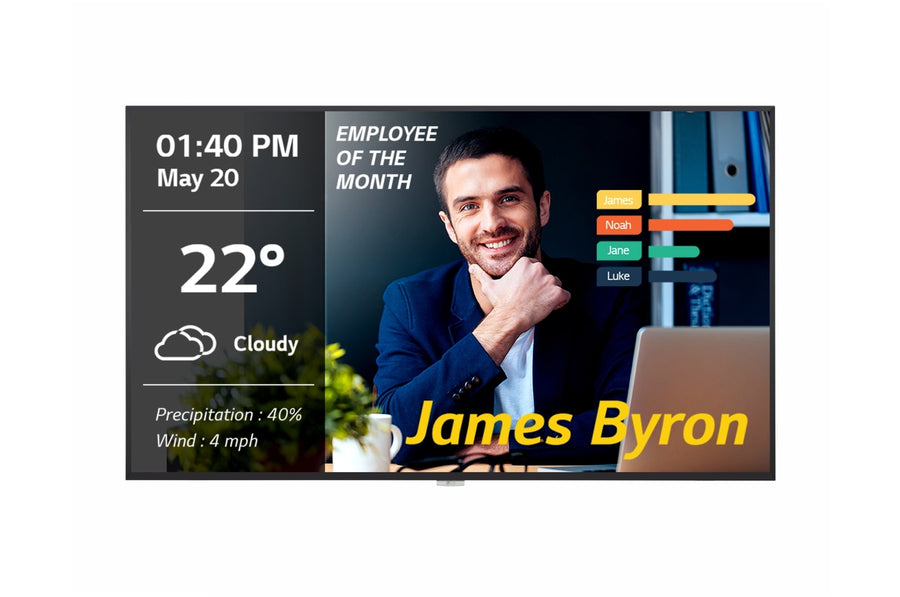

LG 65UM3F 65-inch UHD digital signage displayLG
Digital SignageSKU 65UM3F

LG 65-inch UHD Digital Signage Display – 65UM3F

The LG 65UM3F is a discontinued 65-inch 4K UHD digital signage display with an IPS panel, 350 nits typical brightness and portrait or landscape orientation. It suits retail, corporate and hospitality signage that runs around the clock. Procure.ae supplies LG signage displays across the UAE and can confirm current availability of this model.

The LG 65UM3F, also listed as 65UM3F-B.AMA, shows 3840 x 2160 (4K UHD) resolution on a 65-inch 16:9 IPS panel. Typical brightness is 350 nits and the typical contrast ratio is 1,100:1. The viewing angle is rated at 178 degrees horizontally and vertically, and the response time is 8 ms (grey to grey). The display is listed for 24-hour operation with a typical life time of 50,000 hours, and it supports portrait and landscape orientation for vertical or horizontal signage layouts.

The 65UM3F fits lobbies, retail floors and back-of-house signage where screens are controlled remotely. It offers RS232C in and out, an RJ45 LAN input and an IR input, and the manufacturer lists it as compatible with SuperSign CMS and SuperSign Control and Control+ software. It is OPS type compatible and uses a 300 x 300 mm VESA interface with a face-down tilt of up to 30 degrees. Compared with the 75-inch LG 75UH5E in the same signage range, it is the smaller option.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
  • 4K UHD resolution
  • 350 nits brightness
  • Portrait or landscape
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD resolution
3840 x 2160 pixels on a 65-inch 16:9 IPS panel.
02
350 nits brightness
350 nits typical brightness on the 65-inch screen.
03
Portrait or landscape
Supports portrait and landscape orientation.
04
Continuous operation
Listed for 24-hour operation with a 50,000-hour typical life time.
05
Serial and LAN control
RS232C in and out, RJ45 LAN input and IR input.
06
SuperSign software
Compatible with SuperSign CMS, SuperSign Control and Control+.
07
OPS type compatible
The manufacturer lists the display as OPS type compatible.
08
VESA mounting
300 x 300 mm VESA interface with a face-down tilt of up to 30 degrees.

Specifications

29 specifications
General
CompatibilitySuperSign CMS, SuperSign Control, SuperSign Control+
Key Features4K UHD IPS panel, 350 nits, portrait and landscape, 24-hour operation, RS232C and LAN control, SuperSign CMS compatible, OPS type compatible, VESA 300 x 300 mm
Model65UM3F
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick setup guide, HDMI cable, regulation book, phone to RS232C gender adapter
Display
Aspect Ratio16:9
Bezel SizeTop/right/left 9.9 mm, bottom 14.4 mm
Brightness350 nits
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsRS232C In/Out, RJ45 (LAN) In, IR In
Power
Power Consumption110 W (typical) / 160 W (maximum)
Standby Power0.5 W
Physical
ColorBlack
Dimensions1453.3 x 844 x 39.9 mm
Duty Cycle24 hours
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltUp to 30° face down
VESA Mount300 x 300 mm
Weight28.2 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP, Energy Star 8.0
IP RatingIP5x

Downloads

Manufacturer documents for the LG 65-inch UHD Digital Signage Display – 65UM3F — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What are the main specifications of the LG 65UM3F?
It is a 65-inch 4K UHD (3840 x 2160) signage display with an IPS panel, 350 nits typical brightness, a 1,100:1 typical contrast ratio and an 8 ms response time. It supports portrait and landscape orientation and is listed for 24-hour operation.
Does the LG 65UM3F support portrait orientation?
Yes. The manufacturer lists portrait and landscape orientation for the 65UM3F, so the same display can run vertical or horizontal layouts depending on the site. Confirm the mounting orientation with the installer before ordering.
How is the LG 65UM3F controlled?
It has RS232C in and out, an RJ45 LAN input and an IR input. The manufacturer lists SuperSign CMS for content management and SuperSign Control and Control+ for control and monitoring.
Which VESA mount does the LG 65UM3F need?
The LG 65UM3F uses a 300 x 300 mm VESA mount interface. The manufacturer lists a face-down tilt of up to 30 degrees, and the head weighs 28.2 kg, so the mount should be rated for that weight.
Is the LG 65UM3F designed for 24-hour use?
Yes. The manufacturer lists operation hours as 24 hours and a typical life time of 50,000 hours. The operating range is 0 to 40 °C with 10% to 80% humidity.
