LGMeeting Room SolutionsSKU 55SM5KB

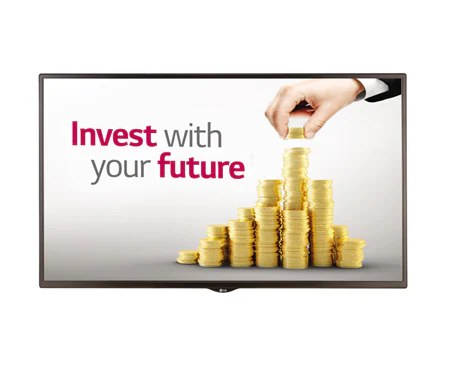

LG 55-inch Full HD Standard Signage Display – 55SM5KB
The LG 55SM5KB (55SM5KB-B.AMA) is a 55-inch Full HD standard signage display with 450 cd/m² brightness, DisplayPort, DVI-D and RGB inputs, RS-232C and RJ45 control, and OPS type compatibility. It suits retail, hospitality and corporate signage. Procure.ae, an authorised LG reseller in Dubai, supplies the 55SM5KB in the UAE.
The 55SM5KB pairs a 1,920 x 1,080 (Full HD) panel with a brightness of 450 cd/m². The bezel measures 11.9 mm at the top, left and right and 18 mm at the bottom. It provides DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs, a DisplayPort output for connecting another display, a USB 3.0 port and an SDHC or full-size SD card slot.
The manufacturer's specifications list OPS type compatibility, MP500 and MP700 external media player support, and SuperSign-w lite and SuperSign-c content software. External control is through RS-232C in and out, RJ45 and a pixel sensor connection. The display measures 1,238 x 714.9 mm, is 54 mm deep (38.6 mm at the thinnest part), weighs 17.5 kg (head) and mounts on a 300 x 300 mm VESA pattern.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Standard Signage Display
- Full HD Panel
- Brightness
- Video Inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD Panel
1,920 x 1,080 resolution on a 55-inch screen.
02
Brightness
rated at 450 cd/m².
03
Video Inputs
DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs.
04
DisplayPort Output
one DP out (SST, DP 1.2a) for connecting another display.
05
OPS and Media Players
OPS type compatible, with MP500 and MP700 media players listed as attachable.
06
External Control
RS-232C in and out, RJ45 and pixel sensor connections.
07
USB and SD
one USB 3.0 port and one SDHC / full-size SD card slot.
08
Mounting
300 x 300 mm VESA interface and a 17.5 kg head weight.
Specifications
23 specificationsGeneral
CompatibilitySuperSign-w lite, SuperSign-c; MP500 / MP700 external media players
Key Features55-inch Full HD, 450 nits, DisplayPort and DVI-D inputs, DisplayPort output, RS-232C and RJ45 control, USB 3.0, SD card slot, OPS compatible
Model55SM5KB
TypeStandard Signage Display
What's in the BoxRemote control (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C gender, memory cover
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top/left/right), 18 mm (bottom)
Brightness450 nits
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Audio
Audio InAudio In × 1 (RGB/DVI)
Audio OutAudio Out × 1
DisplayPortDisplayPort In × 1 (HDCP 1.3), DisplayPort Out × 1 (SST, DP 1.2a)
Connectivity
EthernetRJ45 × 1 (external control)
OPS SlotOPS type compatible
PortsDisplayPort In × 1, DVI-D In × 1, RGB In × 1, DisplayPort Out × 1, Audio In/Out × 1 each, USB 3.0 × 1, SD card × 1, RJ45 × 1, RS-232C In/Out
SD Card SlotSDHC / full-size SD × 1
Serial PortRS-232C In × 1, RS-232C Out × 1
USB PortsUSB 3.0 × 1
VGA InputAnalog RGB × 1
Physical
Dimensions1238 x 714.9 x 54 mm (38.6 mm at thinnest part)
VESA Mount300 x 300 mm
Weight17.5 kg (head)
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen specifications of the LG 55SM5KB?
The LG 55SM5KB has a 55-inch panel with 1,920 x 1,080 (Full HD) resolution and a brightness of 450 cd/m². It measures 1,238 x 714.9 x 54 mm and weighs 17.5 kg (head). The bezel is 11.9 mm at the top, left and right and 18 mm at the bottom.
Which ports does the 55SM5KB provide?
It has DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs, a shared RGB/DVI audio input, a DisplayPort output (SST, DP 1.2a), an audio output, USB 3.0, an SD card slot, RJ45 and RS-232C in and out. HDMI is not listed in the manufacturer's specifications.
Can the 55SM5KB take an external media player?
Yes. The manufacturer's specifications list MP500 and MP700 external media players as attachable, and the display is OPS type compatible. SuperSign-w lite and SuperSign-c content software are both listed as supported.
What VESA mount does the 55SM5KB need?
The 55SM5KB uses a 300 x 300 mm VESA mount interface. With a head weight of 17.5 kg, the wall and bracket must be rated for the load. Procure.ae can arrange wall-mount installation across the UAE.
Can I control the 55SM5KB from a PC or control system?
Yes. RS-232C in and out, an RJ45 port and a pixel sensor connection are provided for external control. Procure.ae can advise on control integration and arrange installation of the 55SM5KB for projects across the UAE.
